Summary of Contents for Kiramek VISION SCIBORG TR365S

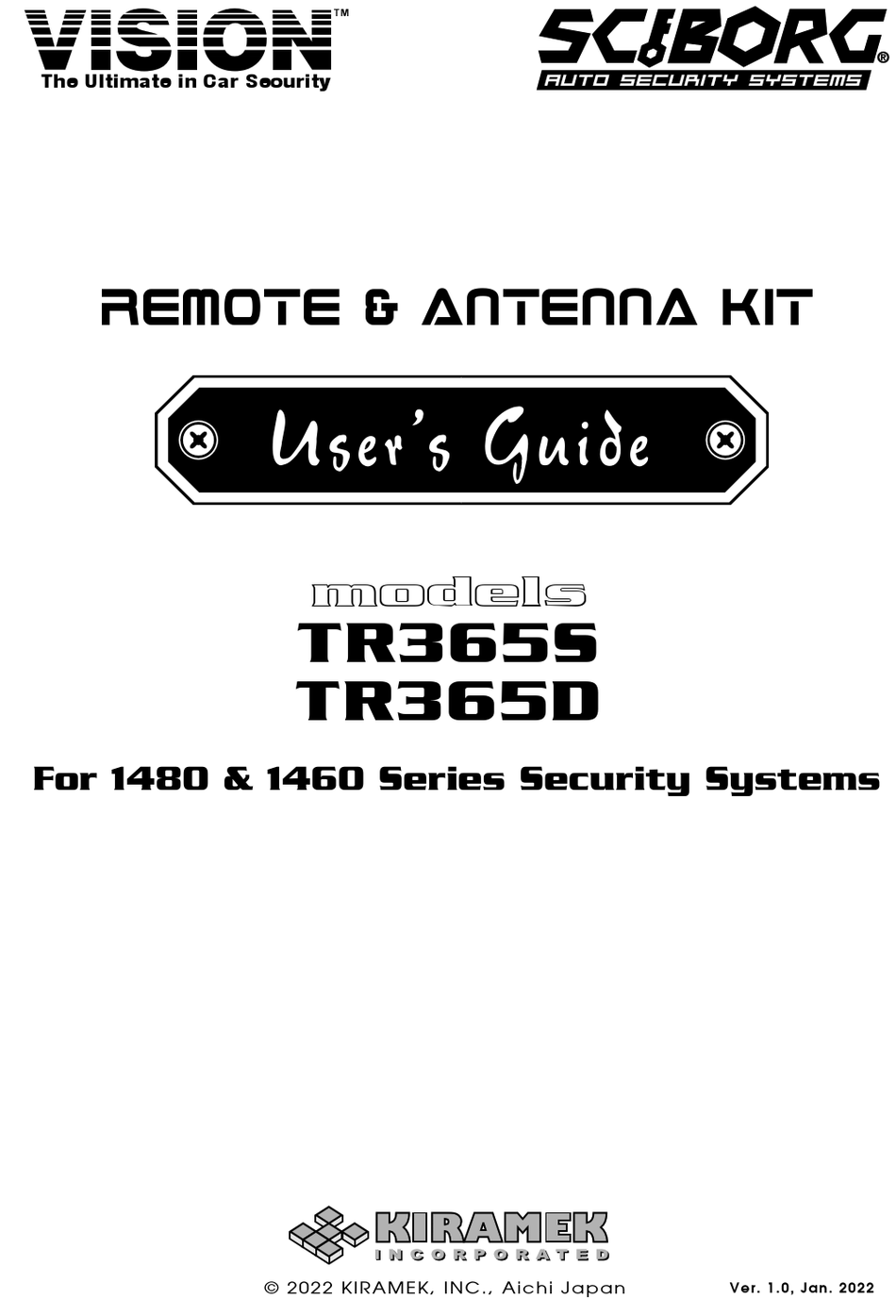

- Page 1 The Ultimate in Car Security REMOTE & ANTENNA KIT User ’ s Guide models TR365S TR365D For 1480 & 1460 Series Security Systems © 2 0 2 2 K I R A M E K , I N C . , A i c h i J a p a n V er .
-
Page 2: Table Of Contents
Warranty NOTICE! Although reasonable efforts have been taken to ensure accuracy in this User’s Guide, Kiramek Inc. shall not be held liable for any errors, omissions, property damage, or injury resulting from the use of this information. All product specifications and features are subject to change without notice. -
Page 3: Remote Overview
REMOTE OVERVIEW Button-press Indicator (Blue LED) Button-1 (If the battery is low or if it is very (You can Arm & cold, the indicator will blink to show Disarm with any Button-2 that the transmitter's range is shorter of the 3 buttons. than normal.) See pp.3~4.) Button-3... - Page 4 BAT TERY REPL ACEMENT Battery Cover Removal Inserting Battery Slide cover off as shown in direction of arrow. Metal Hook Brown Plastic Hook Insert small tool between battery Insert Battery under metal and brown plastic hook, then push hook. up as shown. This will release battery from the metal hook.
-
Page 5: How To Remove The Center Plate (For Custom Film)
SHEET INSTAL L ATION (OP TIONAL ) Optional purchase. No sheets included. More info: https://visionsecurity.jp/en/remotes.html#tx-35p Align film sheet on the Insert a small tool in tiny remote using the holes slot under center plate and as a guide. pull up on tool. Take care not to scratch the plastic! Center plate should easily With Film Sheet in place,... -
Page 6: Operation
SYSTEM OPERATION ARMING NORMAL ARMING Push button This method is the typical way to Arm, with the shock sensor enabled. Ensure that all doors are closed and then press Button-I on the remote. After you press Button-I, the doors will lock and hazard lights will flash once (if supported). The siren will chirp 1 time, and Status LED will light for 5 seconds. -
Page 7: Disarming
System Operation SENSOR BYPASS ARMING Push buttons & This method allows you to disable the shock sensor and any other external sen- sor while keeping all other triggers active (door, trunk, hood, IG). Make a very SHORT PRESS of Buttons I & II at the same time, then release. The doors will lock and hazard lights will flash once (if supported). -
Page 8: Panic Mode
SYSTEM OPERATION Panic Mode Panic Mode allows you to trigger the full 30 second siren blast from your remote, whether the system is Armed or Disarmed. Press But- ton-I or Button-III for 3 seconds. When you release, vehicle hazard lights will flash (if supported), the Status LED will flash rapidly, and the siren will blast for 30s. -
Page 9: Learn Mode
L EARN MODE Before you can use your remote(s), you must perform a one-time learn procedure, shown below. The security system can learn up to 4 remotes total. IMPORTANT All previously learned remotes will be deleted from memory. If you have more than one remote, you must re-learn all of them. -
Page 10: Troubleshooting
TROUBL ESHOOTING MY REMOTE ORIGINALLY WORKED FINE BUT NOW IT DOESN’T. If you had maintenance done and/or the battery was disconnected, or if substantial noise was present on the 12-volt line in the vehicle, it is possi- ble that transmitter memory could be erased. Please disconnect the main wire harness of the 1480/1460 BEFORE disconnecting the car battery. -
Page 11: Warranty
TR365 Kit was installed. This warranty shall not be interpreted as an insurance policy against loss, nor shall Kiramek Inc be liable any in way for such loss, financial or otherwise. - Page 12 QS9000 certified factory. https://kiramek.com 9 - 1 8 3 - 1 I t a y a m a - c h o , H a n d a - s h i , A i c h i - K e n 4 7 5 - 0 9 3 6 J A P A N...
