HAI 48A00-1 Installation Instructions

HAI 48A00-1 Installation Instructions

Wireless keyfob remote

Advertisement

Description:

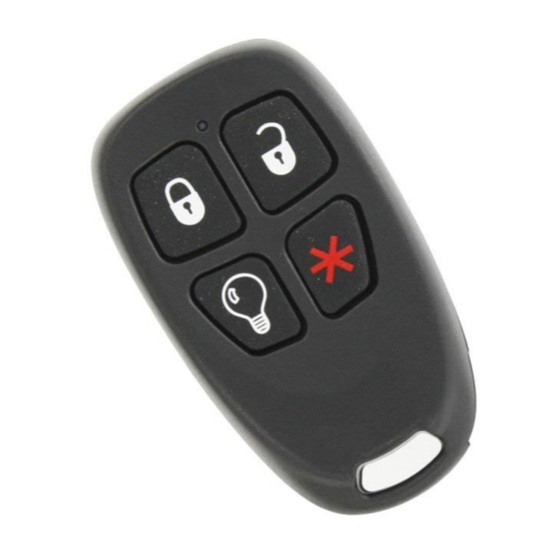

The 48A00-1 4-Button Keyfob Remote is used to send up to 8 different wireless signals to the HAI 45A00-1
Wireless Receiver to activate automation programs in the HAI controller. Each button, or combination of
buttons, can activate lighting, arm and disarm the security system, operate a garage door, set off a panic alarm,
and many other functions.

Operation:

When you press a button on the Keyfob, a transmission will be sent after a 3/10 second delay. If you wish, you
can program the buttons to have a variety of delays to help avoid accidental transmission. When the signal is
transmitted, the LED will light for conformation that the transmission was sent.
Note: Button 4 is factory programmed to have a 2 second delay. You must press and hold Button 4 for 2
seconds before it will transmit.
Document Number: 48I00-1
Installation Instructions
48A00-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 48A00-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for HAI 48A00-1

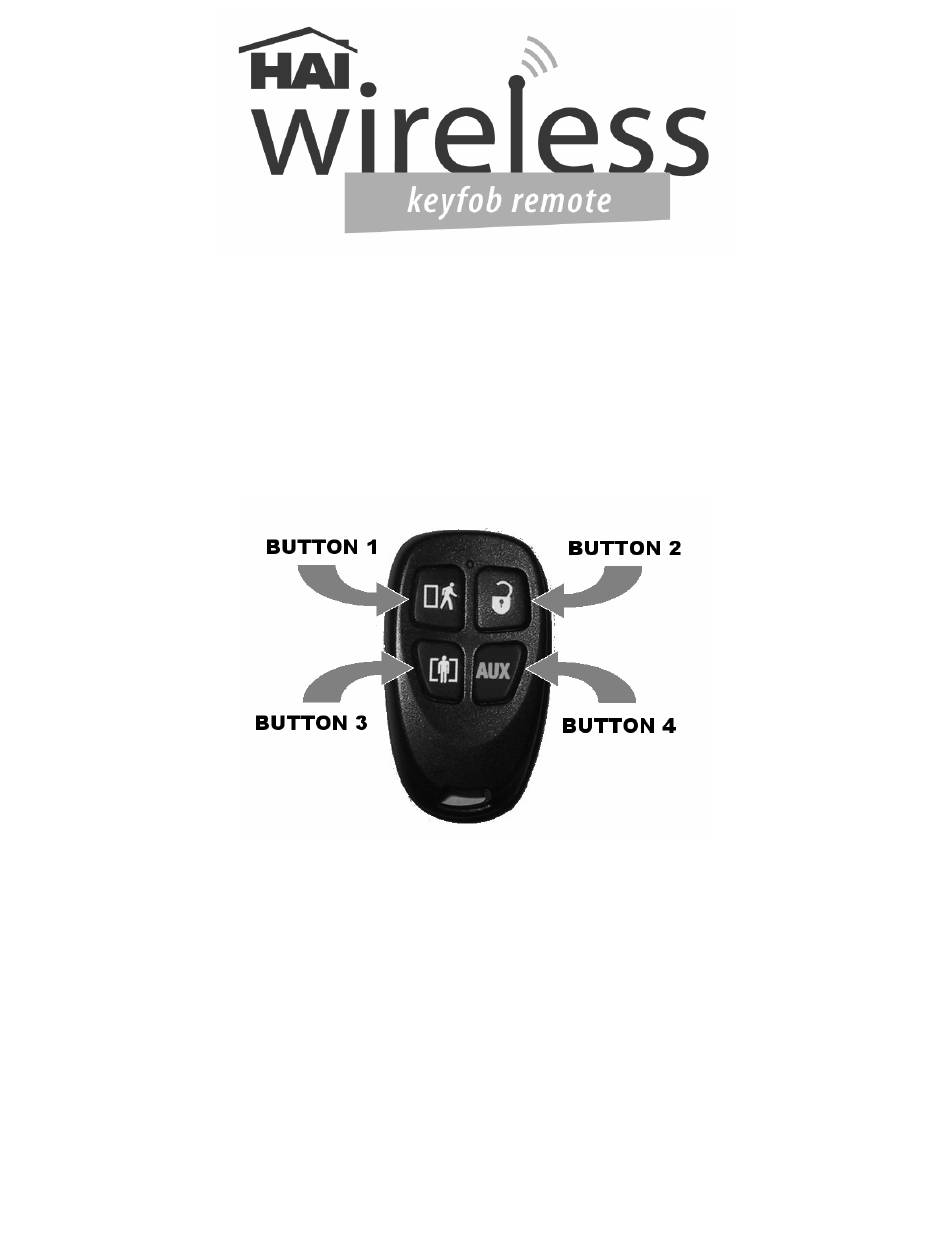

  • Page 1 Installation Instructions Description: The 48A00-1 4-Button Keyfob Remote is used to send up to 8 different wireless signals to the HAI 45A00-1 Wireless Receiver to activate automation programs in the HAI controller. Each button, or combination of buttons, can activate lighting, arm and disarm the security system, operate a garage door, set off a panic alarm, and many other functions.
  • Page 2 To enroll the 4 additional zones on the 48A00-1, follow the procedure as stated above, but use the combination of buttons shown below. Refer to the Installation Instructions for the 45A00-1 for additional information.
  • Page 3 Programming Features: The 48A00-1 can be programmed to change some operating parameters to provide maximum flexibility. To Enter Programming: 1) Press and HOLD all four buttons simultaneously until the LED begins to flash (approximately 2 seconds). 2) Press Button 1 (upper left) for a 2 second delay on Button 4 (default) or press Button 2 (upper right) to set the delay on Button 4 to the programmed delay on all other buttons.
  • Page 4 • 8 Zones: The 48A00-1 is the ultimate wireless Keyfob for today’s homeowner. You can control up to eight automation features including lighting, arming and disarming the security system, security gates, panic alarms, garage doors, and much more.
