Universal Tool UT5761A Operator Instructions

Operator Instructions
Includes - Foreseen Use, Work Stations, Putting Into Service, Operating, Tool
Maintenance and Safety Rules
Manufacturer/Supplier
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Tel No (01494) 883300
Product Nett Weight
lbs
3.7
Kg
1.7
Air Pressure
Recommended Working
Recommended Minimum
Maximum
Personal Safety Equipment
Use - Safety Glasses
Use - Safety Gloves
Use - Safety Boots
Use - Breathing Masks
Use - Ear Protectors

Foreseen Use of the Tool

This tool is designed to be used with flat reinforced resin 4 ins dia max.
discs having a speed rated above 14,000 rpm. The bore size of the disc
is 3/8 ins.
The tool should not be used with any other type or rating of abrasive disc
or wheel. It must never be used with saw blades or other cutting
devices.
Do not use the tool outside the design intent. Never modify the tool for
any other purpose, or for its use as a disc cutter without first seeking
advice from the manufacturer or an authorised representative.

Work Stations

The tool should only be used as a hand held hand operated tool. It is
always recommended that the tool is used when standing on a solid
floor. It can be used in other positions but before any such use the
operator must
be in a secure
position
having a firm
grip and
footing and be
aware of the
safety rules to
be obeyed
when using
the grinder.
Fax No (01494) 883237
Recommended Use Of
Balancer Or Support
No
6.3 bar 90 PSI
n/a bar n/a PSI
7.0 bar 100 PSI
Yes
Yes
Yes
Yes
Page No 1
Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Product Type
Extended Cut-Off Tool
Model No/Nos
UT5761A
Recommended Hose Bore
Size - Minimum
3/8 Ins 10 M/M
Noise Level Sound Pressure Level 89.5 dB(A)
Test Method Tested in accordance with
BS EN ISO 15744:2008
Vibration Level
Uncertainty K = 0.86
Test Method Tested in accordance with
BS EN ISO 28927-1:2009

Putting Into Service

Air Supply
Use a clean lubricated air supply that will give a measured air pressure
at the tool of 90 p.s.i./6.3 bar when the tool is running with the
trigger/lever fully depressed. Use recommended hose size and length.

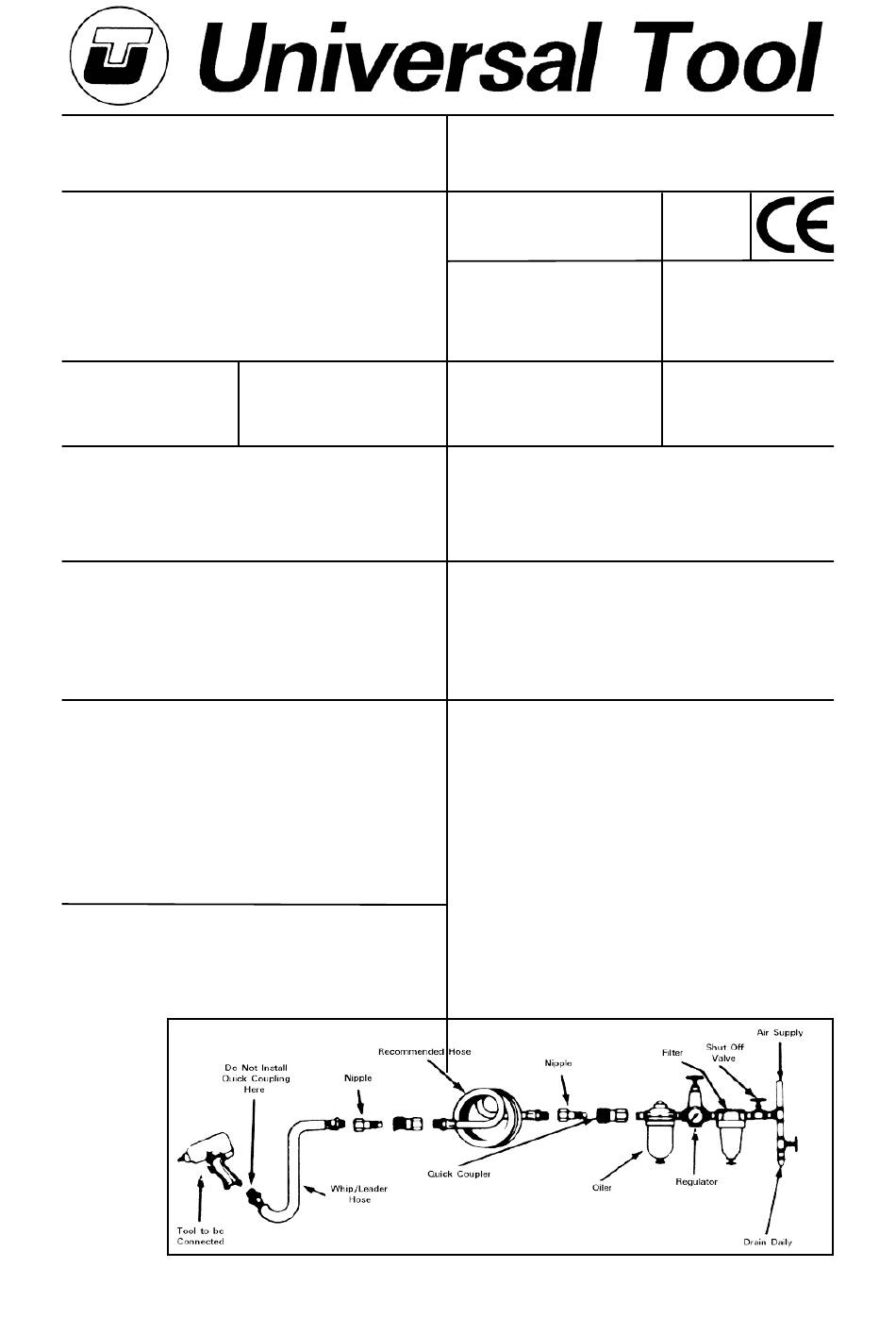

It is recommended that the tool is connected to the air supply as shown
in figure 1. Do not connect the tool to the air line system without
incorporating an easy to reach and operate air shut off valve. The air
supply should be lubricated. It is strongly recommended that an air filter,
regulator, lubricator (FRL) is used as shown in Figure 1 as this will supply
clean, lubricated air at the correct pressure to the tool. Details of such
equipment can be obtained from your supplier. If such equipment is not
used then the tool should be lubricated by shutting off the air supply to
the tool, depressurising the line by pressing the trigger on the tool.
Disconnect the air line and pour into the intake bushing a teaspoonful
(5ml) of a suitable pneumatic motor lubricating oil preferably
RPM
14,000
Cycles Per Min
Serial No
1301000 - 2312000
Recommended Max.
Hose Length
30 Ft 10 M
3.65
Metres / Sec²
