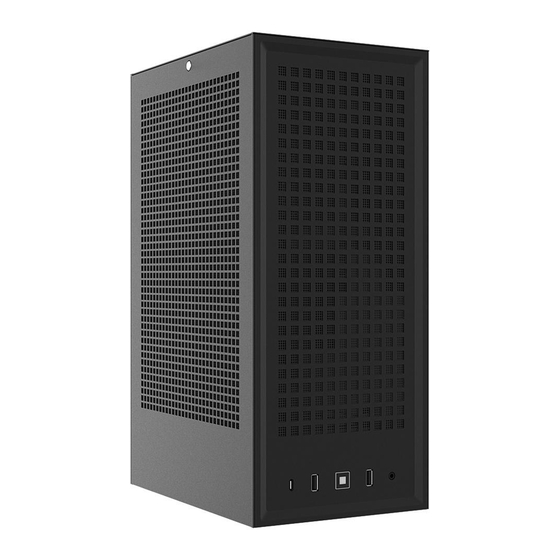

HYTE Revolt 3 Small Form Factor ITX Case Contents • Revolt 3 Case • Instructions • PC Headset Adapter • Accessory Box (A) 4x Motherboard Screws (M3) (B) 4x HDD Screws (6-32) (C) 4x PSU Screws (6-32) (D) 8x SSD Screws (M3) Zip Ties Specs &...
Page 3
Assembly Instructions Revolt 3 is designed to be easy to build, but it is still a small form factor case which means not every step is obvious. We've included the most important steps in this manual as a quick start guide, but for more detailed instructions, scan the QR code or check out Revolt 3's page on HYTE.com.
Page 4
Remove GPU Cable Cover and Open Radiator Door Pre-Assemble and Install Motherboard - Install CPU, RAM, and M.2 before installing motherboard into case. Cable Manage Motherboard - Complete as much cable management as possible before installing CPU cooler.
Page 5
Install Storage and Cable Manage Install CPU Cooler Install Graphics Card - The top panel can be removed for extra-large graphics cards over 320mm.
9. The 24-pin main power connector has a detachable 4- The devices within the HYTE Revolt 3 case with pin connector. This 4-pin connector is not a P4 or ATX 12V connector. Do not force this cable in the P4 or ATX +12V included power supply comply with Part 15 of the socket on the motherboard. ...
Page 7
HYTE.com to obtain a full copy of the written warranty or SFXL-A700GD-IBP Power Supply - 10 Years contact us using one of the methods below. Support@HYTE.com HYTE by iBUYPOWER | 529 N Baldwin Park Blvd., City of Industry, CA 91746, USA...
Page 9
Einbauanleitung Das Revolt 3 ist mit Fokus auf einfachen Zusammenbau konzipiert, jedoch ist es ein Small-Form-Factor- Gehäuse, wodurch nicht jeder Schritt offensichtlich ist. Die wichtigsten Schritte sind in dieser Kurzanleitung zu finden. Bei Bedarf kann die detailliertere Anleitung durch Scannen des QR- Codes oder Besuchen der Revolt 3 Seite auf HYTE.com bezogen werden.
Page 10
Grafikkarten-Kabelabdeckung entfernen und Radiatortür öffnen Motherboard vormontieren und installieren - Installieren Sie CPU, RAM und M.2-Laufwerke, bevor Sie das Motherboard in das Gehäuse einbauen. Motherboard verkabeln - Schließen Sie das Kabelmanagement so weit wie möglich ab, bevor Sie den CPU- Kühler einbauen.
Page 11
Speicher einbauen und Kabel verlegen CPU-Kühler befestigen Grafikkarte einbauen - Für besonders große Grafikkarten über 320 mm kann die obere Abdeckung entfernt werden.
Page 12
• EN 62368-a:2014+A11 7. Verändern Sie nicht die Kabel und/oder Anschlüsse, die mit diesem Netzteil geliefert werden. Die Geräte im HYTE Revolt 3-Gehäuse mit 8. Wenn dieses Netzteil modulare Kabel verwendet, verwenden Sie nur die vom Hersteller gelieferten Kabel. mitgeliefertem Netzteil erfüllen die Anforderungen Andere Kabel sind möglicherweise nicht kompatibel und...
Page 13
Bitte besuchen Sie Hiwneise auf HYTE.com, um eine SFXL-A700GD-IBP Netzteil - 10 Jahre vollständige Kopie der schriftlichen Garantie zu erhalten, oder kontaktieren Sie uns mit einer der unten aufgeführten Methoden. Support@HYTE.com HYTE by iBUYPOWER | 529 N Baldwin Park Blvd., City of Industry, CA 91746, USA...
Page 14
HYTE Revolt 3 Boîtier ITX mini-Tour Contenu • Boîtier Revolt 3 • Manuel de montage • Adaptateur casque PC • Boîte d'accessoires (A) 4x Vis pour carte-mère (M3) (B) 4x Vis pour disque dur (6-32) (C) 4x Vis pour alimentation (6-32)
Instructions de montage Le Revolt 3 a été pensé afin d’être le plus facile d’utilisation possible, mais il s’agit toutefois d’un boîtier très compact ce qui signifie que chaque étape n’est pas toujours évidente. Nous avons inclus les plus importantes d’entre elles dans ce manuel en guise d’instructions rapides, mais pour plus de détails, scannez le QR code ou consultez la page du Revolt 3 sur HYTE.com.
Page 16
Retirer le couvercle pour cable GPU et ouvrir la trape pour radiateur Préassemblage et installation de la carte-mère - Installez le CPU, la RAM et le stockage M,2 avant d'installer la carte-mère dans le boîtier. Routage des câbles - Achevez une majorité du routage des câbles avant d'installer le refroidissement CPU.
Page 17
Installation du stockage et fin du routage des câbles Installation du refroidissement CPU Installation de la carte graphique - Le capot supérieur peut être retiré pour les cartes graphiques de plus de 320mm de long.
Page 18
• EN 62368-a:2014+A11 avec cette alimentation. 8. Si cette alimentation utilise des câbles modulaires, Les composants a l'intérieur du boîtier HYTE Revolt 3 n'utiliser que les câbles fournis par le constructeur. D'autres câbles peuvent ne pas être compatibles et pourraient incluant une alimentation préinstallée sont en...
Page 19
HYTE.com afin d'obtenir une copie complète de cette Alimentation SFXL-A700GD-IBP - 10 ans garantie, ou contactez nous via l'une des méthodes ci- dessous. Support@HYTE.com HYTE by iBUYPOWER | 529 N Baldwin Park Blvd., City of Industry, CA 91746, USA...
Page 20
HYTE Revolt 3 Estuche ITX de Forma Pequeña Contenido • Estuche Revolt 3 • Instrucciones • Adaptador de Audiofono • Caja de Accesorios (A) 4 x Tornillos (M3) para la Placa Base (B) 4 x Tornillos (6-32) para el Disco Duro...
Page 21
Instrucciones de Armadura Revolt 3 está diseñado para ser fácil de construir, pero sigue siendo una caja de forma pequeño, lo que significa que no todos los pasos son evidentes. Hemos incluido los pasos más importantes en este manual como una guía de inicio rápido, pero para obtener instrucciones más detalladas, escanee el código QR o consulte la página de Revolt 3 en Hyte.com Para obtener instrucciones más detalladas, escanee el código QR Retire los Paneles Laterales -...
Page 22
Retire la Cubierta del Cable de la Tarjeta Gráfica y Abra la Puerta del Radiador Ensamblar e Instalar la Placa Base - Instale el procesador, los modulos de memorias y M.2 antes de instalar la placa base en la caja. Placa Base con Administración de Cables - Completar la administración de cables tanto como sea posible antes de instalar el enfriador del procesador.
Page 23
Instale los Discos Duros y Administración de Cables Instale el Enfriador del Procesador Instale la Tarjeta Gráfica - El panel superior se puede quitar para tarjetas gráficas extragrandes de mas de 320mm...
Page 24
• EN 62368-a:2014+A11 fuente de poder. 8. Si esta fuente de poder utiliza cables modulares, utilice Los dispositivos dentro del estuche HYTE Revolt 3 únicamente los cables suministrados por el fabricante. Es posible que otros cables no sean compatibles y podrían con fuente de poder incluida cumplen con la Parte 15 causar daños graves a su sistema y fuente de poder.
Page 25
HYTE.com para obtener una copia completa de la garantía Fuente de Poder SFXL-A700GD-IBP - 10 años escrita o contáctenos usando uno de los métodos a continuación. Support@HYTE.com HYTE by iBUYPOWER | 529 N Baldwin Park Blvd., City of Industry, CA 91746, USA...
Инструкция по сборке Корпус Revolt 3 спроектирован так, чтобы его было легко собрать. Но так как это корпус форм- фактора mini-ITX, не все шаги могут быть очевидны. Поэтому мы включили в данное руководство наиболее важные шаги сборки в качестве краткого руководства по началу работы. Для получения...
Page 28
Снимите крышку кабеля видеокарты и откройте дверцу радиатора Предварительная сборка и установка материнской платы - IУстановите процессор, оперативную память и M.2 устройства (SSD или карты расширения) перед установкой материнской платы в корпус. Монтаж кабелей для материнской платы - Максимально завершите укладку кабелей пред установкой...
Page 29
Установка накопителей и укладка кабеля Установка процессорного кулера Установка видеокарты - Для установки видеокарт длинной более 320 мм верхнюю панель можно снять.
Page 30
вентиляцию или решетку вентилятора блока питания. 7. Не модифицируйте кабели и/или разъемы входящие в комплект поставки данного блока питания. Устройства в корпусе HYTE Revolt 3 с 8. Если в данном блоке питания используются поставляемым блоком питания соответствуют модульные кабели, используйте только кабели из...
Page 31
Блок питания SFXL-A700GD-IBP - 10 лет гарантия. Пожалуйста посетите сайт HYTE.com для получения полной копии письменной гарантии или свяжитесь с нами одним из указанных ниже способов. Support@HYTE.com HYTE by iBUYPOWER | 529 N Baldwin Park Blvd., City of Industry, CA 91746, USA...
