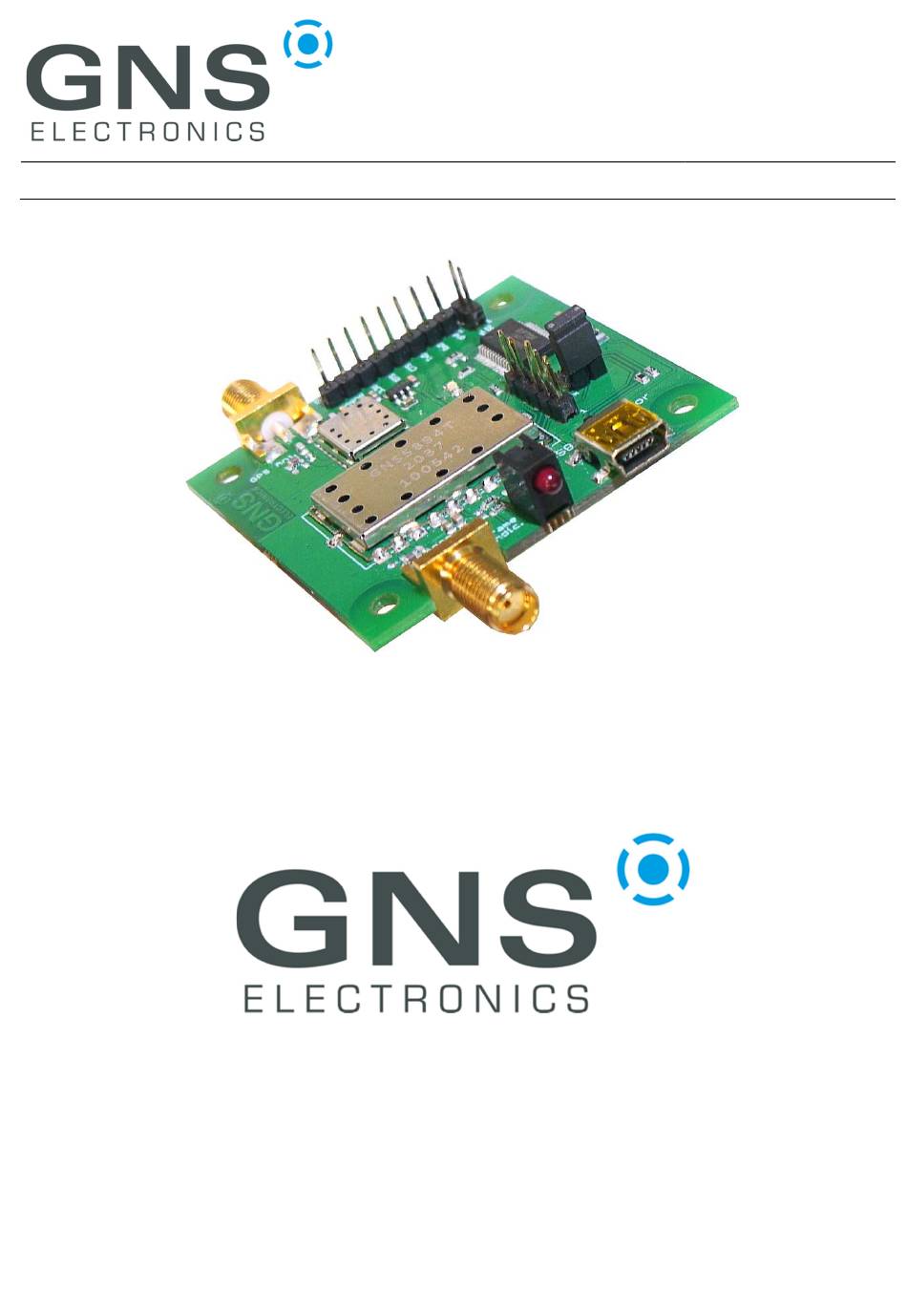

GNS 5894TAC StarterKit
Quick guide
confidential information
manual

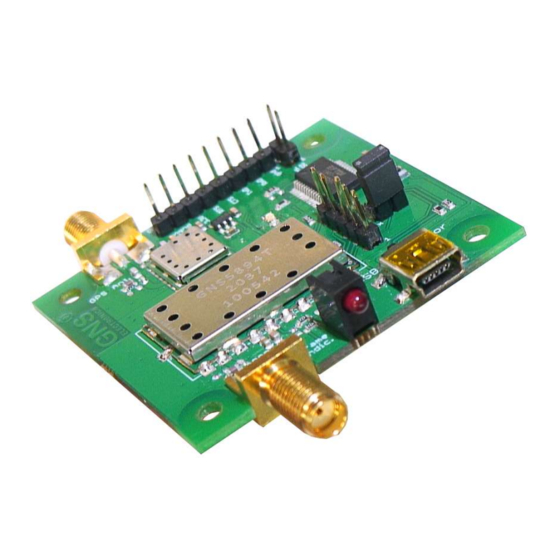

The GNS 5894TAC StarterKit has been designed to support developers during
design-in of the GNS 5894T & GNS 5894TAC stand alone module solution.
GNS Electronics GmbH
Adenauerstrasse 18
D – 52146 Würselen
Germany
www.gns-electronics.com
info@gns-electronics.com
1
th
V 0.93, May 17
2021
Advertisement
Table of Contents
Related Manuals for GNS 5894TAC
Summary of Contents for GNS 5894TAC
- Page 1 GNS 5894TAC StarterKit Quick guide confidential information manual The GNS 5894TAC StarterKit has been designed to support developers during design-in of the GNS 5894T & GNS 5894TAC stand alone module solution. GNS Electronics GmbH Adenauerstrasse 18 D – 52146 Würselen Germany www.gns-electronics.com...
-
Page 2: Introduction
This manual shows how to connect the GNS5894TAC StarterKit to a PC in order to verify GNS 5894TAC Mode-S-A-C all-in-one module performance and test supported features. For technical specification, please refer to the GNS5894T_ADSBModul_datasheet. -
Page 3: Table Of Contents
Index Introduction ..........................2 1 Description of the GNS 5894TAC StarterKit Hardware ............4 2 GNS5894TAC StarterKit Board Layout .................. 5 3 GNS5894TAC StarterKit Board Block Diagram ..............7 Getting started ......................7 4 GNS5894TAC StarterKit Hardware ..................8 Assembly Drawing Top Side (with dimensions) .............. -
Page 4: Description Of The Gns 5894Tac Starterkit Hardware
GNS 5894TAC StarterKit Quick guide confidential information manual 1 Description of the GNS 5894TAC StarterKit Hardware 1090 MHz antenna GNSS Active Antenna Mini USB Data +5V DC Power supply Typical use of the GNS5894TAC StarterKit and connected external components V 0.93, May 17... -
Page 5: Gns5894Tac Starterkit Board Layout
GNS 5894TAC StarterKit Quick guide confidential information manual 2 GNS5894TAC StarterKit Board Layout JP1: direct access to LDO for GNSS RF In SMA GNS5894TAC signals : module & Active GNSS Antenna - TxD, RxD, RTS, CTS GNSS Antenna connector - NReset... - Page 6 GNS 5894TAC StarterKit Quick guide confidential information manual UMPER AND ONNECTOR ESCRIPTION ONNECTOR IGNAL ESCRIPTION 1: GND Direct access to GNS5894TAC UART. UART I/O Voltage is 3.3V. 2: RxD (GNS5894TAC ser. input) 3: TxD (GNS5894TAC ser. output) 4: CTS (H/W handshake CTS input) 5: RTS (H/W handshake RTS output) 6: 3.3V...
-
Page 7: Gns5894Tac Starterkit Board Block Diagram
RF connector 3.1 Getting started 1. Connect the TEN-90 and the GNSS active antenna to the GNS 5894TAC StarterKit 2. Connect the GNS 5894TAC StarterKit via USB to a Windows PC 3. After a few seconds the device is ready for use and is displayed in the device manager as "USB Serial Port"... -
Page 8: Gns5894Tac Starterkit Hardware
GNS 5894TAC StarterKit Quick guide confidential information manual 4 GNS5894TAC StarterKit Hardware 4.1 Assembly Drawing Top Side (with dimensions) V 0.93, May 17 2021... -
Page 9: Gns 5894Tac Starterkit Schematic
GNS 5894TAC StarterKit Quick guide confidential information manual 4.2 GNS 5894TAC StarterKit Schematic V 0.93, May 17 2021... -
Page 10: Pcb Layout
GNS 5894TAC StarterKit Quick guide confidential information manual 4.3 PCB Layout V 0.93, May 17 2021... -
Page 11: Ordering Information
GNS 5894TAC StarterKit Quick guide confidential information manual 5 ORDERING INFORMATION Ordering information Type Part# Description GNS 5894TAC Starter Kit 4037735105485 6 RELATED DOCUMENTS Type description Available from GNS5894T_ADSBModul_datasheet_V1.2.pdf www.gns-electronics.de GNS5894TAC_ADSBModul_datasheet_V1.3.pdf www.gns-electronics.de 7 DOCUMENT REVISION HISTORY V0.9 10/05/2020 M.Heinzel initial document V0.91...
