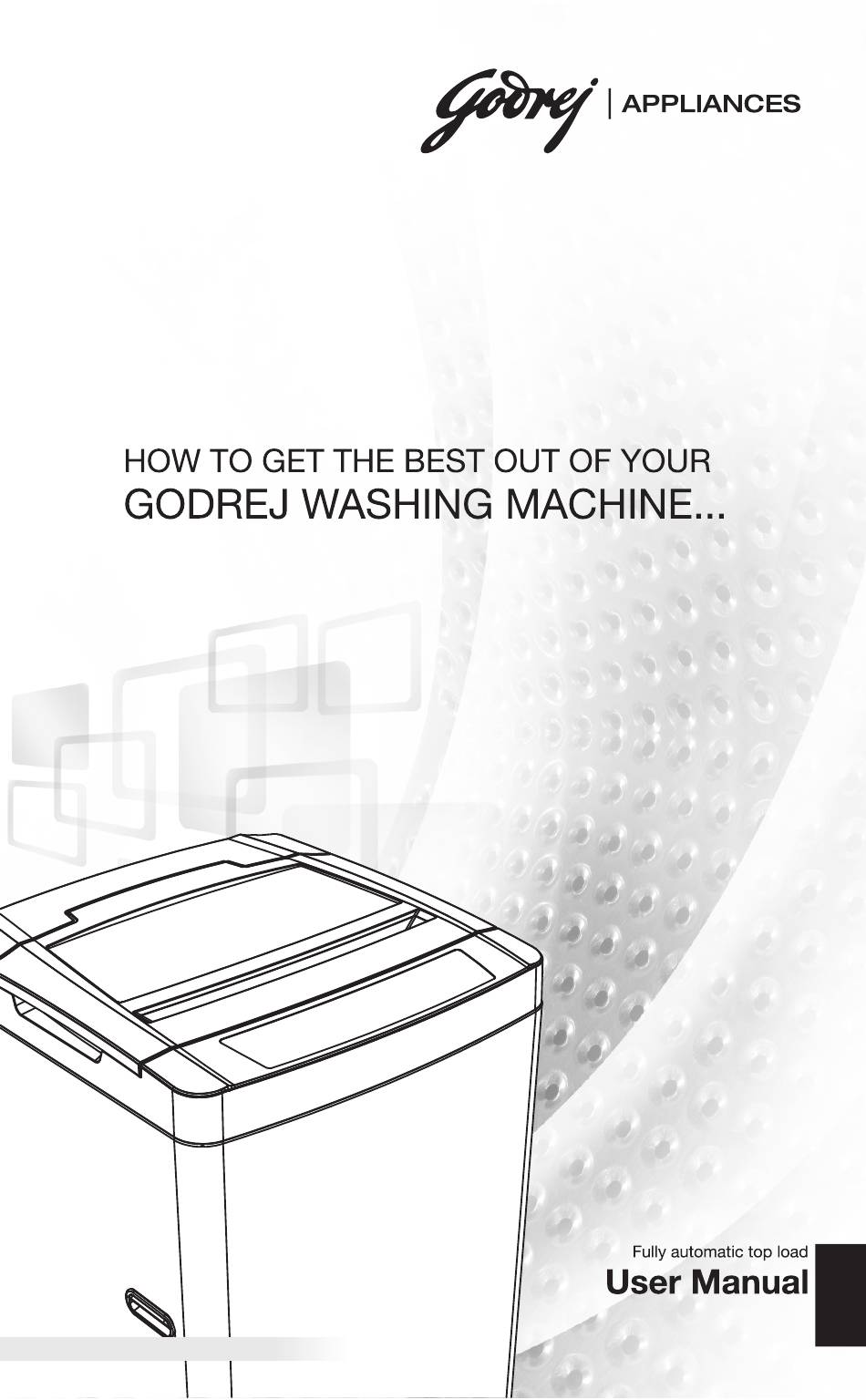

- Page 1 WTEON ADR 65 5.0 FDTNS WTEON 650 AD 5.0 *The image is for representation purpose only.
- Page 4 (with digital display) *The image is for representation purpose only.
- Page 5 WTEON ADR 65 5.0 FDTNS WTEON 650 AD 5.0 6.5 kg...
- Page 6 6. 9 wash programs The Godrej washing machine provides you the freedom to select from 9 wash programs. This includes the REGULAR, DELICATE, HEAVY, QUICK WASH, WASH, RINSE, SPIN, WASH + RINSE, RINSE + SPIN. Digital Display The Godrej washing machine comes with a 2-Digit LED digital display with remaining time indicator.
- Page 7 CAUTION: Operating the machine with the packaging may cause movement/unbalanced condition and can damage the machine parts. Install your Godrej EON Washing Machine on a flat and firm surface. Max tilt angle on the supporting face : 1°. Installing machine on an unstable location can create noise as machine may vibrate.
- Page 8 Connecting the Electrical plug of your washer to Wall Socket Connect the 3-pin power cord to a properly grounded Standard Indian 3-pin outlet. Never plug it into an ungrounded outlet. If the external socket does not have grounding terminal, then a separate grounding is needed. Live and neutral terminals in Socket should not be reverse.
- Page 10 *The image is for representation purpose only.
- Page 11 *The image is for representation purpose only.
- Page 12 Program Button: Used to select wash cycles as per requirement. default REGULAR cycle is selected. Child Lock: Child lock can be activated by pressing WATER LEVEL AND PROGRAM buttons simultaneously for 2 seconds. Once Child Lock is activated, machine will indicate CL on display periodically.
- Page 13 2-Digit LED Display: To indicate remaining time. Power Button: Used to switch ON or switch OFF the machine. Cycle button: Used to select individual cycles like Wash/ Rinse/Spin only or Combinations.
- Page 14 TOTAL (min.) (min.) (min.) (min.) TIME • Turn POWER ON Button (Regular Program gets selected automatically) ~4 min • Press Start/Pause button water in + to start the machine ~10 min • Water level and wash time Regular 11-12 11-12 (wash) + is automatically selected 8 min...
- Page 15 • Press the Power ON button Wash operation and timing will • Press Cycle button to select Wash option be as per the Program selected Wash Only • Press Start/Pause button to start Wash (Eg. 22 min for Regular) only •...
- Page 16 3.1 - 6.5 kg.
- Page 18 When using the Regular Cycle: Auto calibration for auto load sensing: Due to aging, the mechanical friction changes on motor belt tension and other mechanical parts. Hence it is required to calibrate the machine for auto load sensing. Calibration can be done by pressing CYCLE+START/PAUSE+POWER button together for 2 sec.
- Page 19 • Select the HEAVY program with LOW water level selection. Add the detergent in detergent compartment and press the Start/Pause button to allow the water and detergent to mix for about one minute. After one minute passed, turn the power switch OFF to stop the machine.
- Page 25 No LED glow The Washer does Check the power cord is securely plugged in. If error persists, on Panel or No not work at all Press the Power ON/OFF button. Call an movement authorized Press the Start/Pause button. inside technician Check whether power failure has occurred.
- Page 32 Protection of Environment: Protection of environment” is one of the core values of Godrej and we seek your co-operation to make sure that the product, packaging and plastic material is not disposed as unsorted municipal waste. This symbol is known as the “Crossed-out Wheellie Bin Symbol”. It means that the product should not be disposed of with your general house-hold waste.
