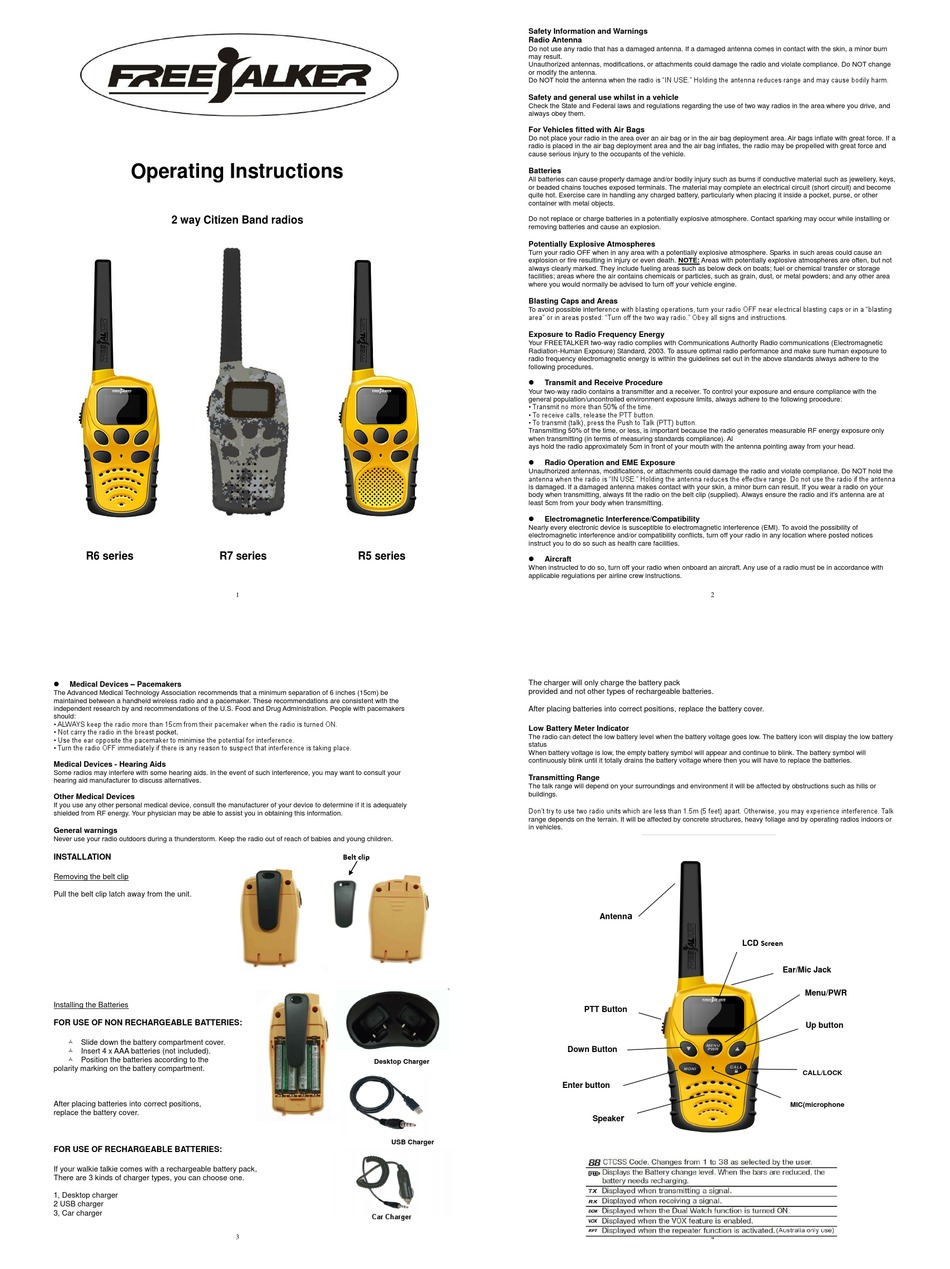

Freetalker R6 Series Operating Instructions

Operating Instructions
2 way Citizen Band radios

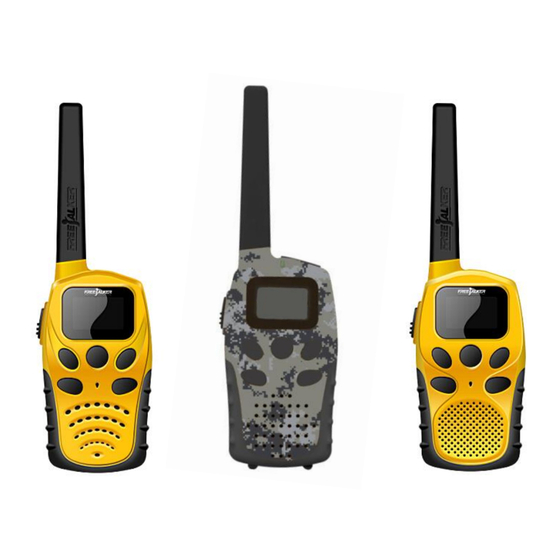

R6 series R7 series
 Medical Devices – Pacemakers
The Advanced Medical Technology Association recommends that a minimum separation of 6 inches (15cm) be
maintained between a handheld wireless radio and a pacemaker. These recommendations are consistent with the
independent research by and recommendations of the U.S. Food and Drug Administration. People with pacemakers
should:
• ALWAYS keep the radio more than 15cm from their pacemaker when the radio is turned ON.
• Not carry the radio in the breast pocket.
• Use the ear opposite the pacemaker to minimise the potential for interference.
• Turn the radio OFF immediately if there is any reason to suspect that interference is taking place.
Medical Devices - Hearing Aids
Some radios may interfere with some hearing aids. In the event of such interference, you may want to consult your
hearing aid manufacturer to discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately
shielded from RF energy. Your physician may be able to assist you in obtaining this information.
General warnings
Never use your radio outdoors during a thunderstorm. Keep the radio out of reach of babies and young children.
INSTALLATION
Removing the belt clip
Pull the belt clip latch away from the unit.

Installing the Batteries

FOR USE OF NON RECHARGEABLE BATTERIES:
 Slide down the battery compartment cover.
 Insert 4 x AAA batteries (not included).
 Position the batteries according to the
polarity marking on the battery compartment.
After placing batteries into correct positions,
replace the battery cover.
FOR USE OF RECHARGEABLE BATTERIES:
If your walkie talkie comes with a rechargeable battery pack,
There are 3 kinds of charger types, you can choose one.
1, Desktop charger
2 USB charger
3, Car charger
R5 series
1
Belt clip
Desktop Charger
USB Charger
Car Charger
3

Safety Information and Warnings

Radio Antenna

Do not use any radio that has a damaged antenna. If a damaged antenna comes in contact with the skin, a minor burn
may result.
Unauthorized antennas, modifications, or attachments could damage the radio and violate compliance. Do NOT change
or modify the antenna.
Do NOT hold the antenna when the radio is "IN USE." Holding the antenna reduces range and may cause bodily harm.

Safety and general use whilst in a vehicle

Check the State and Federal laws and regulations regarding the use of two way radios in the area where you drive, and
always obey them.
For Vehicles fitted with Air Bags
Do not place your radio in the area over an air bag or in the air bag deployment area. Air bags inflate with great force. If a
radio is placed in the air bag deployment area and the air bag inflates, the radio may be propelled with great force and
cause serious injury to the occupants of the vehicle.

Batteries

All batteries can cause property damage and/or bodily injury such as burns if conductive material such as jewellery, keys,
or beaded chains touches exposed terminals. The material may complete an electrical circuit (short circuit) and become
quite hot. Exercise care in handling any charged battery, particularly when placing it inside a pocket, purse, or other
container with metal objects.
Do not replace or charge batteries in a potentially explosive atmosphere. Contact sparking may occur while installing or
removing batteries and cause an explosion.
Potentially Explosive Atmospheres
Turn your radio OFF when in any area with a potentially explosive atmosphere. Sparks in such areas could cause an
explosion or fire resulting in injury or even death. NOTE: Areas with potentially explosive atmospheres are often, but not
always clearly marked. They include fueling areas such as below deck on boats; fuel or chemical transfer or storage
facilities; areas where the air contains chemicals or particles, such as grain, dust, or metal powders; and any other area
where you would normally be advised to turn off your vehicle engine.
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn your radio OFF near electrical blasting caps or in a "blasting
area" or in areas posted: "Turn off the two way radio." Obey all signs and instructions.

Exposure to Radio Frequency Energy

Your FREETALKER two-way radio complies with Communications Authority Radio communications (Electromagnetic
Radiation-Human Exposure) Standard, 2003. To assure optimal radio performance and make sure human exposure to
radio frequency electromagnetic energy is within the guidelines set out in the above standards always adhere to the
following procedures.


Transmit and Receive Procedure

Your two-way radio contains a transmitter and a receiver. To control your exposure and ensure compliance with the
general population/uncontrolled environment exposure limits, always adhere to the following procedure:
• Transmit no more than 50% of the time.
• To receive calls, release the PTT button.
• To transmit (talk), press the Push to Talk (PTT) button.
Transmitting 50% of the time, or less, is important because the radio generates measurable RF energy exposure only
when transmitting (in terms of measuring standards compliance). Al
ays hold the radio approximately 5cm in front of your mouth with the antenna pointing away from your head.


Radio Operation and EME Exposure

Unauthorized antennas, modifications, or attachments could damage the radio and violate compliance. Do NOT hold the
antenna when the radio is "IN USE." Holding the antenna reduces the effective range. Do not use the radio if the antenna
is damaged. If a damaged antenna makes contact with your skin, a minor burn can result. If you wear a radio on your
body when transmitting, always fit the radio on the belt clip (supplied). Always ensure the radio and it's antenna are at
least 5cm from your body when transmitting.


Electromagnetic Interference/Compatibility

Nearly every electronic device is susceptible to electromagnetic interference (EMI). To avoid the possibility of
electromagnetic interference and/or compatibility conflicts, turn off your radio in any location where posted notices
instruct you to do so such as health care facilities.

Aircraft
When instructed to do so, turn off your radio when onboard an aircraft. Any use of a radio must be in accordance with
applicable regulations per airline crew instructions.
The charger will only charge the battery pack
provided and not other types of rechargeable batteries.
After placing batteries into correct positions, replace the battery cover.

Low Battery Meter Indicator

The radio can detect the low battery level when the battery voltage goes low. The battery icon will display the low battery
status
When battery voltage is low, the empty battery symbol will appear and continue to blink. The battery symbol will
continuously blink until it totally drains the battery voltage where then you will have to replace the batteries.

Transmitting Range

The talk range will depend on your surroundings and environment it will be affected by obstructions such as hills or
buildings.
Don't try to use two radio units which are less than 1.5m (5 feet) apart. Otherwise, you may experience interference. Talk
range depends on the terrain. It will be affected by concrete structures, heavy foliage and by operating radios indoors or
in vehicles.
a
Antenn
PTT Button
Down Button
Enter button
r
Speake
2
LCD Screen
Ear/Mic Jack
Menu/PWR
Up button
CALL/LOCK
MIC(microphone
4
