Installation, Operating and Servicing
Instructions

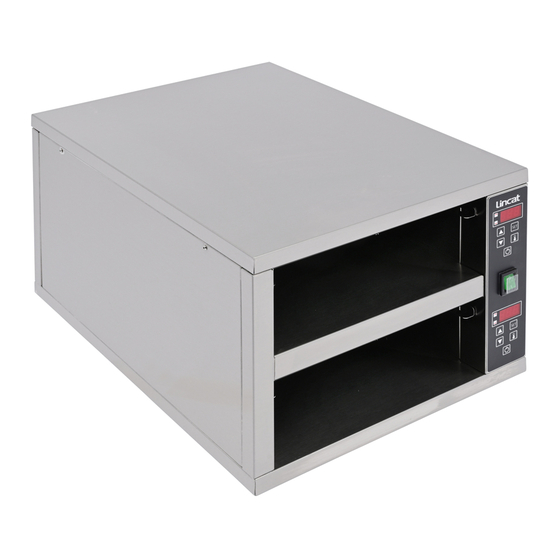

Panther Hot Hold Bins
HHB12100
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________
IS 777 ECN 4821
Page 1 of 8
Advertisement
Table of Contents
Summary of Contents for Panther Lincat HHB12100
- Page 1 Installation, Operating and Servicing Instructions Panther Hot Hold Bins HHB12100 Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ Dealer:_________________________________ _______________________________________ IS 777 ECN 4821 Page 1 of 8...
-
Page 2: Table Of Contents
CONTENTS Important Information Warnings and Precautions Technical Data Checklist of Enclosures Installation and Commissioning Operating Instructions Cleaning Servicing, Maintenance and Component Replacement Fault Finding Spare Parts List Accessories Service Information and Guarantee IMPORTANT INFORMATION Read these instructions carefully before using this product, paying particular attention to all sections that carry warning symbols, caution symbols and notices. -
Page 3: Warnings And Precautions
WARNINGS AND PRECAUTIONS This appliance must be installed, commissioned and serviced by a qualified person in accordance with national and local regulations in force in the country of installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person. -
Page 4: Installation And Commissioning
INSTALLATION AND COMMISSIONING This appliance must be earthed. An equipotential bonding terminal is provided to allow cross bonding with other equipment. If replacing the plug connect the terminals as follows: Green and Yellow wire Earth Blue wire Neutral N Brown wire Live Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57) -
Page 5: Operating Instructions
OPERATING INSTRUCTIONS This unit is designed to hold pre-heated foods at the correct temperature. Do not use to bring products to temperature Only qualified or trained personnel should use this appliance. Note: The display shows the heating element running temperature and does not reflect the food holding temperature. -
Page 6: Cleaning
After operating the ‘Controller On/Off button’ the display will show ‘HEA’ until the set temperature has been reached at which point the display will show ‘rdy’. In normal operation the display will cycle between these as the unit maintains the correct temperature. -
Page 7: Fault Finding
FAULT FINDING Please refer to the Service Help Desk number on the final page of this manual. SPARE PARTS LIST Part Number Description CB19 CONTROL PCB EL345 HEATER MAT FE10 ADJUSTABLE FEET CP-HHB12100 CONTROL PANEL ASSEMBLY PL306 PLUG AND LEAD SW97 ROCKER SWITCH LE14... -
Page 8: Service Information And Guarantee
SERVICE INFORMATION For help with the installation, maintenance and use of your Lincat equipment, please contact our service department: 01522 875520 For non-UK customers, please contact your local Lincat dealer All service work, other than routine cleaning should be carried out by one of our authorised service agents.
