Summary of Contents for FD QYJ-10KPa

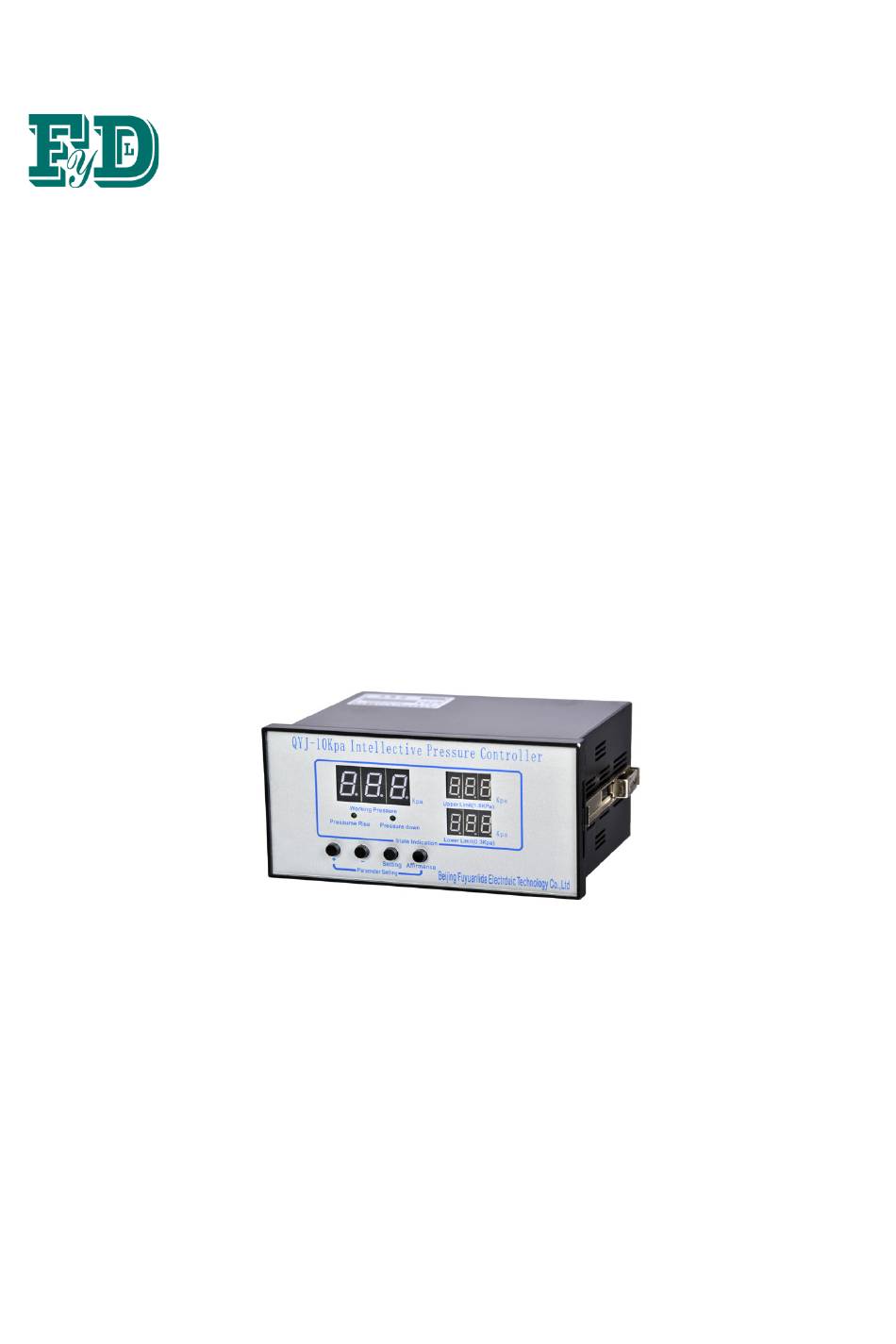

- Page 1 QYJ-10KPa Intelligent pressure controller manual Beijing Fuyuan Lida Electronic Technology Co., Ltd...
- Page 2 QYJ-10kPa Intelligent pressure controller Product Manual QYJ-10KPa Intelligent pressurer conrtol Product Manual Document version: V3.0 Save document time:2022-01-21 BOM Number:220121 Beijing Fuyuan Lida Electronic Technology Co., Ltd. provides customers with all-round technical support. Users can also contact the company headquarters directly.
-
Page 3: Guarantee And Service
QYJ-10kPa Intelligent pressure controller Product Manual Safety Symbol glossary: Some symbols and glossaries used in the manual are as follow: Caution: indicates the possible danger to the life damage. Attention: indicates the possible danger to the device failure. Without the special declaration, this manual is only fit for theQYJ-10KPa Intelligent Pressure Controller. -
Page 4: Chapter1 Product Description
Product Manual Chapter1 Product Description 1.1 Overview QYJ-10KPa Intelligent Pressure Controller, is an innovative product completely from the design, development and manufacture of Beijing Fuyuanlida Electronic Technology co., Ltd. This product integrates the requirements of cable inflator from power supply system and the use request from the customers, and also adapts the new importing components. - Page 5 QYJ-10kPa Intelligent pressure controller Product Manual 1.4 Controller shape Figure 1-1 The front panel Figure 1-2 the back panel Beijing Fuyuan Lida Electronic Technology Co., Ltd...
-
Page 6: Packing List
QYJ-10kPa Intelligent pressure controller Product Manual Figure 1-3 Outline Dimension (mm) 1.5 Packing list Basic components quantity unite host piece Secure metal clips piece user Manual Chapter 2 installation 2.1 Unpacking check 2.1.1 Check the quantity of each component listed in the packing list. -
Page 7: Chapter 3 Operation
3.1 How to set the value of warning pressure: How to set the upper limit and lower limit value of warning pressure: After switch on the QYJ-10kPa Intelligent Pressure Controller, press the ‘SET’ button in the Parameter setting, the upper limit indicator will be flashing. Then at the same time, press ‘... - Page 8 QYJ-10kPa Intelligent pressure controller Product Manual Warranty Register Form Product name Type Ready-For- Opener Service date Letter address Post Code User Tel: information corresponder: Attention: 1) please fill this form immediately after and send it to us by post. 2) this form is only used for purpose of the warranty register.
