INSTALLATION INSTRUCTIONS

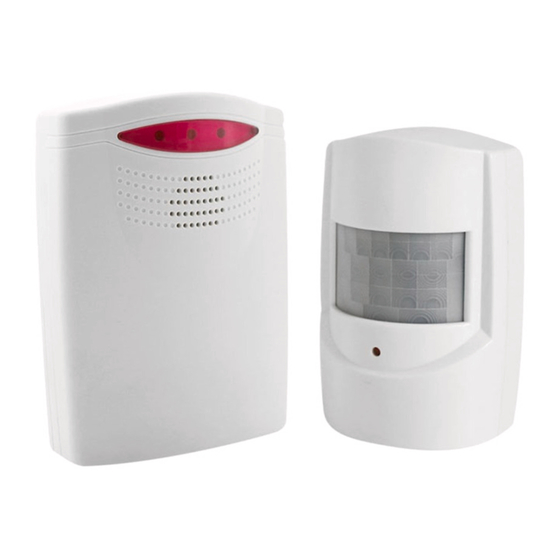

ENTRY ALERT Wireless PIR Alarm
Model No: CHM0152
Long driveway? Security conscious? Live near a busy road and can not confirm if that someone's
wandering up the drive? Is that car driving up your driveway, or just passing by? Presenting this
driveway alert alarm, the unique device which will let you know when people are coming to visit!
Please install and operate this product according to the following instructions.
'Receiver' means the Indoor Chime unit.
CONTENTS
Receiver x1

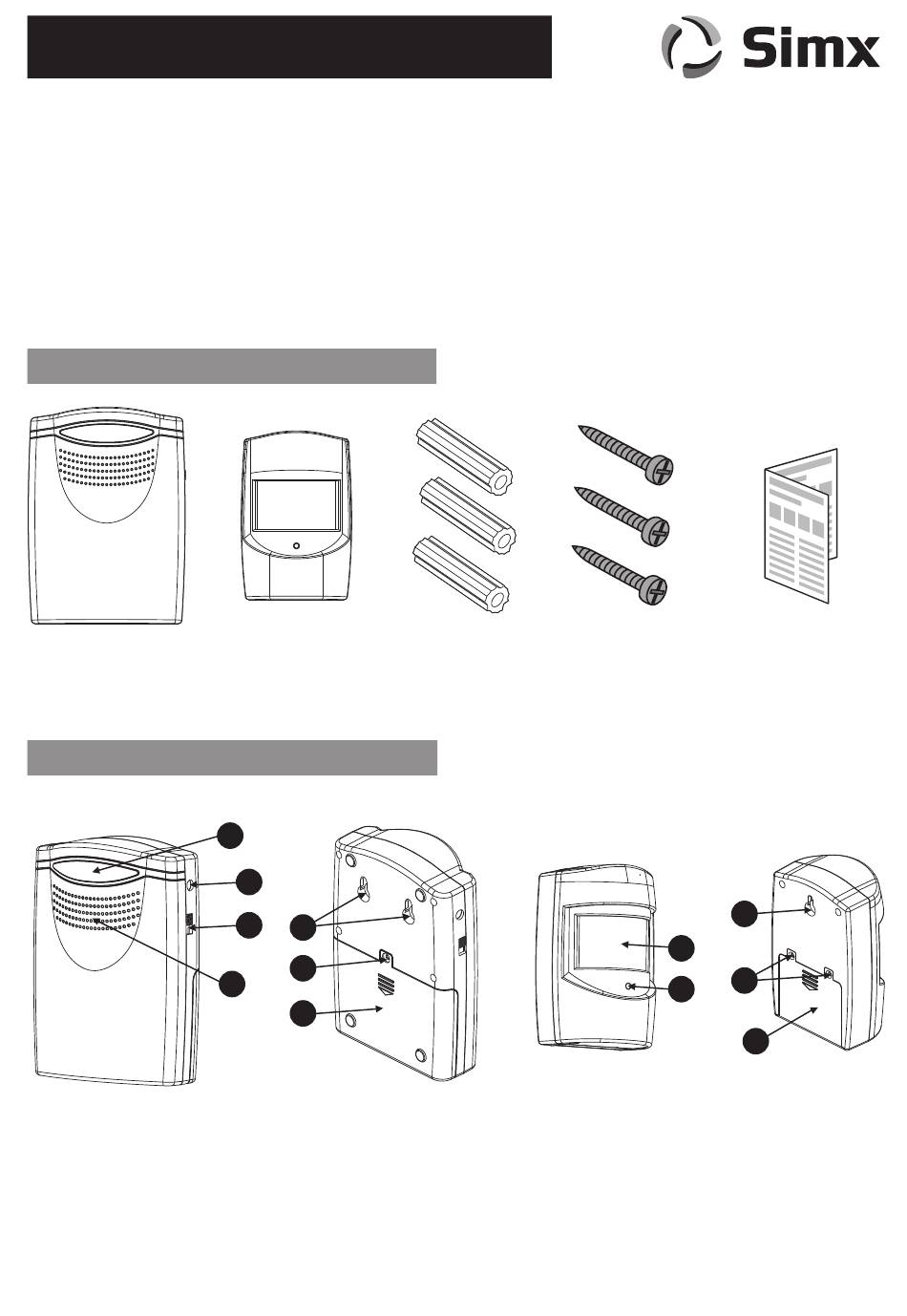

NAMES FOR PARTS
Receiver front side
(1) LED Indicator
(2) DC 6V
(3) Volume Button (LOW, HI, OFF)
(4) Speaker
PIR Transmitter x1
Receiver back side
1
2
3
5
6
4
7
(5) Hanging Holes (36mm spacing)
(6) Fixing Screw for Battery Cover
(7) Battery Cover
(8) PIR
'Transmitter' means the Exterior PIR module.
Wall Plugs x3
Screws x3
Transmitter front
cover outside
1
Instruction Manual x1
Transmitter back
cover outside
10
8
11
9
12
(9) LED Indicator
(10) Hanging Hole
(11) Fixing Screws for Battery Cover
(12) Battery Cover
