Assembly Instructions
GARAGE STORAGE SOLUTIONS

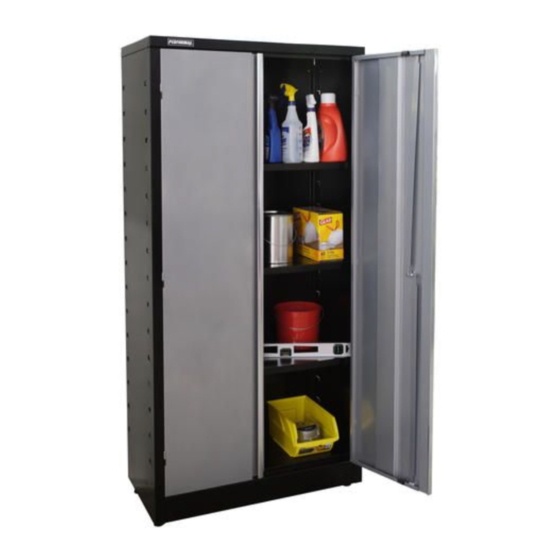

TALL CABINET
Model: GTC2DP
SKU: 211-4354
- Use caution when handling and assembling metal parts. The metal may have sharp edges or corners.
The use of protective gloves is recommended.
- This unit should be securely anchored to a wall with suitable fasteners (stud fastener included).
- DO NOT use this unit for anything that is outside the designed function of storage.
- DO NOT step or stand on the shelves.
- The maximum evenly distributed weight for each shelf is 100 lbs.
It is recommended that the cabinet be assembled by more than one person. During shipping and handling, some
of the tabs that are used for assembly may have closed together. Use a flat tipped screwdriver to either pry up or
push from behind the tab to re-open. To assure the squareness of the unit, do not fully tighten the nuts and screws
used in the assembly until all are in place. After all nuts and screws are in place, square the unit on a level surface
and tighten all nuts and screws appropriately.
Ref#
Description
A
Right Hand Back
Left Hand Back
B
C
Right Hand Side
Left Hand Side
D
Top
E
F
Bottom
Shelves
G
Tools Required
-Rubber Mallet
-Small Blade Screwdriver
-Philips Head Screwdriver
ASSEMBLY QUESTIONS: PLEASE CALL TOLL FREE (866) 441-5080
Safety Instructions
General Instructions
Parts List & Product Specification
QTY
1
1
1
1
1
1
3
Ref#
Description
H
Left Hand Door
Right Hand Door
I
J
Bolt,M6*10
Nut,M6
K
Leg leveler
L
M
Screw
Washer (stud attachment)
N
QTY
1
1
10
10
4
1
1
1 of 6
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Performax GTC2DP
Summary of Contents for Performax GTC2DP
- Page 1 Assembly Instructions GARAGE STORAGE SOLUTIONS TALL CABINET Model: GTC2DP SKU: 211-4354 Safety Instructions - Use caution when handling and assembling metal parts. The metal may have sharp edges or corners. The use of protective gloves is recommended. - This unit should be securely anchored to a wall with suitable fasteners (stud fastener included).
- Page 2 Assembly Instructions: Getting Started Unpack all parts and layout on packing material. Visually inspect the corners. These are the most susceptible to minor variation through the shipping and handling process. If you find a corner bent out of place, use you hand and gently move the corner back to the designed shape.
- Page 3 Step 1 - Back Assembly Place the left and right hand backs on a level surface (flange sides facing up; Figure 1). Use packing material to protect the finish. Place the panel with the center tabs (left hand back) under the panel with the center rectangular holes (right hand back).
- Page 4 Figure 3 – Bottom Assembly Step 4 – Leveler Assembly Install the 4 leg levelers in the bottom. Screw all the way in. Adjust once unit is set in final position. Figure4 – Leveler Assembly Figure 5 – Top Assembly 4 of 6...
- Page 5 Step 5 – Top Assembly Attach the top to the back and side assembly. Position the top so that the tabs on the top align with the rectangular holes on the back end of the left and right side panels. It helps to slightly lift the back and side assembly and engage the tabs one at a time.
- Page 6 Step 8 – Final Assembly Adjust levelers so unit is square and doors open / close freely Wall Attachment Insert Screw/Washer (part M & N) thru one of the upper slots in right or left back panel aligning with wall stud. (For masonry wall, alternative fasteners are required –...
