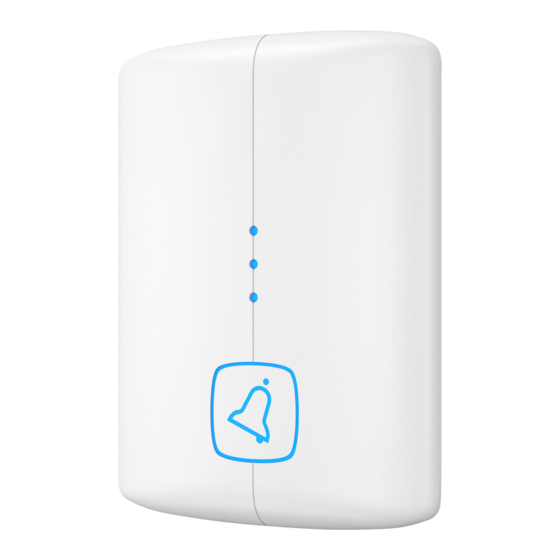

- Page 1 Control panel Contact GSM-14 Wi-Fi Data sheet Device identification number...
- Page 2 1. General Information Contact GSM-14 Wi-Fi control panel (hereinafter referred to as the device) is designed as a receiver and monitoring device for wireless signaling devices produced by Ritm. Arming and disarming may be done using: wireless keypads produced by Ritm;...
-
Page 3: Technical Specifications
4. Technical Specifications Specification Value GSM, MHz 850/900/1800/1900 GPRS, CSD, Text messaging Communication channels (ContactID and to a private phone), Wi-Fi Frequency range of a channel radio, MHz 433.075-434.775 Number of channels in the range, pcs Remote configuration via GPRS , CSD channels Signal encryption in the radio channel Transmitter radiated power, W no more than 0.01... - Page 4 5. Designation of Elements...
- Page 5 № Element Designation Fixing holes 4 holes for fixing to surface Terminals for connecting power supply and wired siren: +12V – power supply “plus” (if using external power supply 12V); +12V, GND, SIREN GND – power supply “minus” (if using external power supply 12V) and “minus”...
- Page 6 8. Install the BL-5C battery (above the SIM card boxes). 9. Turn on the device. 10. Connect to the device using a Wi-Fi network or using an object card of a GEO.RITM monitoring system and set up the device. To connect via Wi-Fi network, switch the device in access point mode: close the connector JMP2 with a jumper and connect to the network «RITM-last 8 digits of IMEI».
- Page 7 15. Make sure the tamper spring is installed and close the device cover. 16. For information on using of the device in the GEO.RITM mobile and fixed object monitoring system and its configuration using an object card, please see the Contact GSM-14 operation manual.
- Page 8 13. Manufacturer’s Warranties The manufacturer guarantees that the device complies to requirements of the technical specifications, provided the client ensures compliances to conditions of transportation, storage, installation and operation. Although the warranty period is 12 months from the commissioning date, it may not exceed 18 months from the production date.
