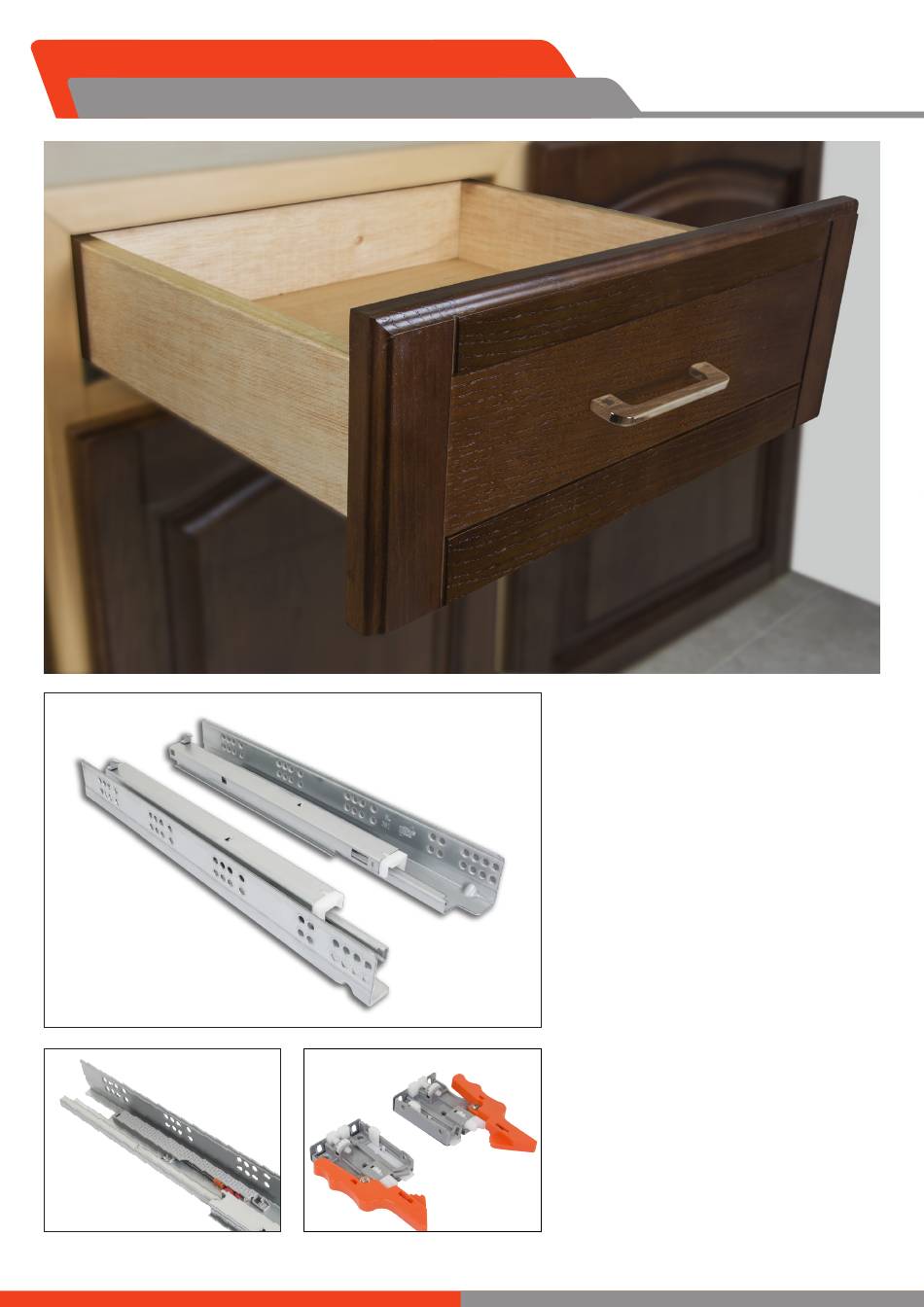

SOFT CLOSING UNDER MOUNT SLIDES
CLIP ON SOFT CLOSING UNDER MOUNT SLIDES
128
TCH-23104 SERIES
●
Basic spec
●
Concealed
●
Face frame
●
Length : 229mm - 610mm
●
Side panels thickness : 16mm/19mm
●
Drawer adjustment : 3D for 0 - 2 mm
●
Clip device : Free quick installation
●
Finishing : Galvanized steel
●
Material : 1.0 - 1.5 - 1.8 mm cold-rolled steel
●
Loading : 35 kg 18"
●
Smooth and silent movement
●
Soft closing
CL
Advertisement
Summary of Contents for Touch TCH-23104 Series
- Page 1 SOFT CLOSING UNDER MOUNT SLIDES CLIP ON SOFT CLOSING UNDER MOUNT SLIDES TCH-23104 SERIES ● Basic spec ● Concealed ● Face frame ● Length : 229mm - 610mm ● Side panels thickness : 16mm/19mm ● Drawer adjustment : 3D for 0 - 2 mm ●...
- Page 2 ● Space required ● Standard drawer ● Inner drawer W : The width of inner drawer L : Drawer length L : Drawer length DL : Internal cabinet depth DL : Internal cabinet depth NL : Assembling dimenstions length NL : Assembling dimenstions length X : The drawer board thickness 16/19 ●...
