Duftdos - UNPL - with contact sensor
Table of contents
1.
Instruction fort the manual ............................................................................................................................................................. 2
1.1
Validity ............................................................................................................................................................................... 2
1.2
Target group ....................................................................................................................................................................... 2
1.3
Storage of the manual ......................................................................................................................................................... 2
1.4
Further informations ............................................................................................................................................................ 2
1.5
Used symbols ....................................................................................................................................................................... 2
2.
Saftey ............................................................................................................................................................................................ 3
2.1
Technical safety advice ......................................................................................................................................................... 3
2.2
Use in accordance with regulations ....................................................................................................................................... 4
3.
Delivery ......................................................................................................................................................................................... 4
4.
Function ........................................................................................................................................................................................ 4
5.
Technical Data ............................................................................................................................................................................... 5
6.
Fragrance pump............................................................................................................................................................................. 5
6.1
Change the hose set ............................................................................................................................................................. 6
6.2
Sparepartlist persitaltic pump frangrance .............................................................................................................................. 6
6.3
Dosing valve ....................................................................................................................................................................... 7
6.4
Spare part list dosing valve ................................................................................................................................................... 7
7.
Console for frangrance canister (optional) ....................................................................................................................................... 7
8.
Installation / Commissioning / Dosing............................................................................................................................................. 7
9.
Maintenance .................................................................................................................................................................................. 8
10. Wiring diagramme ......................................................................................................................................................................... 9
11. Change the set switching temperature ............................................................................................................................................. 9
Operation manual 20997-Duftdos-UNPL (09/16)
Page 1 von 9
Page
Advertisement
Table of Contents
Summary of Contents for WDT Duftdos UNPL
-
Page 1: Table Of Contents

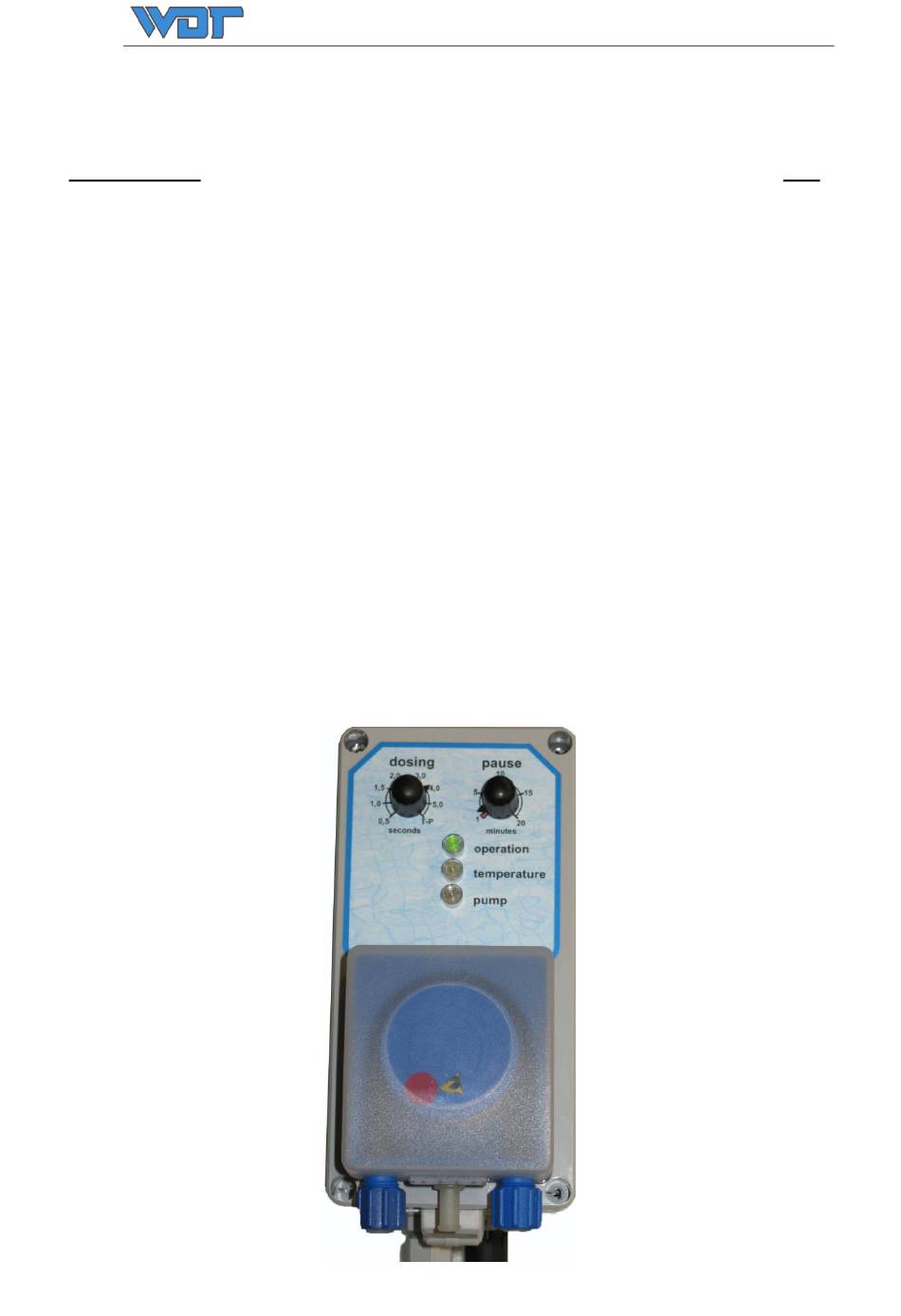

Operation manual 20997-Duftdos-UNPL (09/16) Page 1 von 9 Duftdos – UNPL – with contact sensor Table of contents Page Instruction fort the manual ................................2 Validity ....................................2 Target group ..................................2 Storage of the manual ................................. 2 Further informations ................................2 Used symbols .................................. -
Page 2: Instruction Fort The Manual
All manuals for the device and the installed components must be stored in the immediate vicinity of the equipment and shall be accessible at all times. Further informations For further information, please contact your dealer or company WDT Werner Dosiertechnik GmbH & Co KG. Used symbols Danger! Warning of Danger Failure to observe this warning may result in serious injury or death and/or damage to the unit. -
Page 3: Saftey
Technical safety advice Company WDT does not take the liability for damages that occur due to not considering this manual. The easy and safe operation of the unit assumes a correct transport, storage and installation of the unit. Respect the following advices to minimize the risk in injury or even serious injury or danger for life. -
Page 4: Use In Accordance With Regulations
Function The dosing unit DUFTDOS UNPL with contact sensor measures the temperature at the steam tube by an incl. temperature sensor. The dosing operation is released if the temperature has reached 70°C (ex works adjustment). After you press the push button the dosing is activated for 0,5 seconds till 5 seconds (adjustable) and aroma is injected into the steam pipe. -
Page 5: Technical Data
Back pressure must not be higher than 0.5 bar Use only original WDT dosing valves. Don´t bend the dosing tube. Use only PTFE dosing tube. Company WDT can take no warranty for the resistance of the hose against every fragrance concentrate on the market! -
Page 6: Change The Hose Set
Operation manual 20997-Duftdos-UNPL (09/16) Page 6 von 9 Change the hose set Remove the transparent pump cover and the blue safety disk. To change the hose set the hose holder, suction and pressure connections have to be pulled forward. Turn the roller to the clockwise and pull out the pump hose over the cut-out at the roller. On reassembly reverse this process. -
Page 7: Dosing Valve
Operation manual 20997-Duftdos-UNPL (09/16) Page 7 von 9 Dosing valve A push back of steam into the dosing tube is prevented safely by a spring loaded non-return, dosing valve. The valve body is completely made of stainless steel. Dosing valve for frangrance (optional) Hose connection seal ring Valve body VA... -
Page 8: Maintenance
Operation manual 20997-Duftdos-UNPL (09/16) Page 8 von 9 Mounting of the contact sensor on the steam line The temperature sensor type NTC 20 KΩ, is a contact sensor for mounting at steam-carrying tubes. The sensor measures the temperature at the pipe wall of the steam pipe. Article no.: 23721 Scope of delivery: Temperature sensor NTC 20 kOhm... -
Page 9: 10. Wiring Diagramme
Operation manual 20997-Duftdos-UNPL (09/16) Page 9 von 9 Wiring diagramme Change the set switching temperature The switch-on temperature is factory set at approximately 70°C. This pre-setting is optimal for most applications. In the factory setting the resistance value between the measuring points is 730 ohms. If the switch-on temperature should be changed, so you can do these, when you turn the adjustment screw at the potentiometer.
