Instructions for use of attachments: Desktop chargers 60-050-11 - 60-050-22
1.
Main switch/pilot lamp
2. Charge indicator lamp
3. Charge indicator lamp
4. Charging compartment
5. Battery
Preparing for use:
Step 1.
Plug in power plug at the socket; switch on at main switch (1); triple-function lamp (2) glows red (see
description in Step 3).
Step 2.
Insert RECHARGEABLE BATTERY 60-050-51 / 60-050-52 (4) into the charging compartment (3) in the
direction of the arrow.
Step 3.
The charge indicator lamp (2) must first flash red for 20 seconds if the BATTERY 60-050-51 / 60-050-52 is
depleted. After approx. 20 seconds, it glows steady red to indicate that the battery is being charged.
When the battery is fully charged, the lamp changes to green. (4) The charging time for a depleted
BATTERY 60-050-51 / 60-050-52 (4) is approx. 60 minutes. The lamp glows green to indicate when
charging is complete. During charging, the Charger 60-050-11 - 60-050-22 and the BATTERY 60-050-51
/ 60-050-52 warm up, but this does not indicate a fault. As soon as the BATTERY 60-050-51 / 60-050-52
is fully charged, the lamp glows green (2) Chargers 60-050-11 - 60-050-22 switch off automatically when
the BATTERY 60-050-51 / 60-050-52 is fully charged. This means that you can leave the BATTERY 60-050-
51 / 60-050-52 in the operational Charger 60-050-11 - 60-050-22 for a prolonged period so that it is always
charged to full capacity without any risk of overcharging. The BATTERY 60-050-51 / 60-050-52 should be
checked and recharged before use!
Fault:
After inserting BATTERY 60-050-51 / 60-050-52 (4) in the charging compartment (3), the charge indicator lamp (2) on the
Charger 60-050-11 - 60-050-22 fails to light up.
Revision status: A
GA_Akku Motoren System Zubehör_EN_A
•
Sattlerstrasse 15, 78532 Tuttlingen, Germany

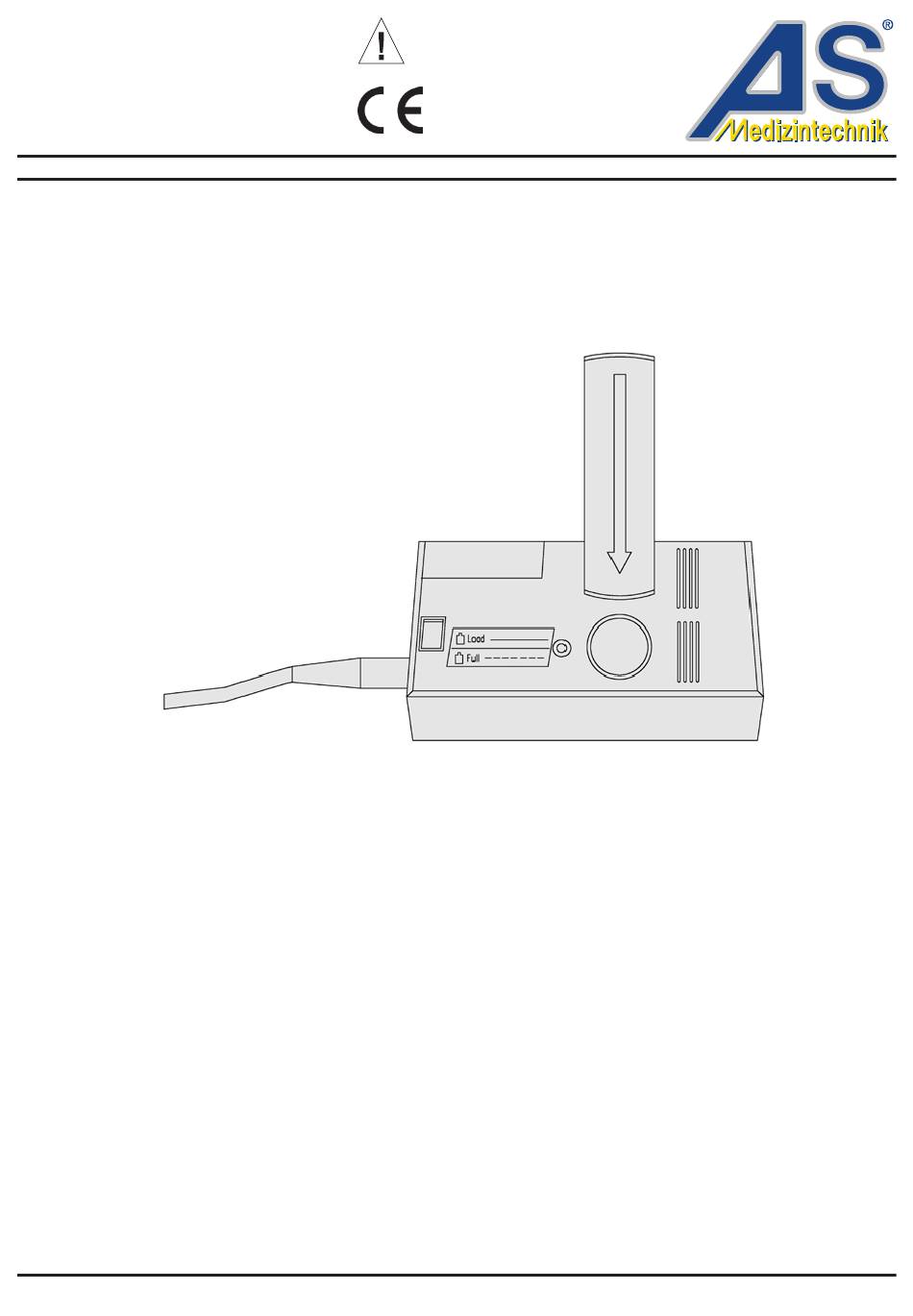

<=> Switch is alight when the charger is ON
<=> Glows steady red when a depleted RECHARGEABLE BATTERY is being
charged
<=> Glows green when RECHARGEABLE BATTERY is fully charged
<=> For inserting the RECHARGEABLE BATTERY in the direction indicated by
the arrow
<=> Rechargeable
Constructed / revised: 11.12.2011
1253
•
Tel 07461/966326
5
2
1
3
Constructed by: ns
•
Fax 07461/9663288
4
