Summary of Contents for TMT Automation ChowCam Bullet-1

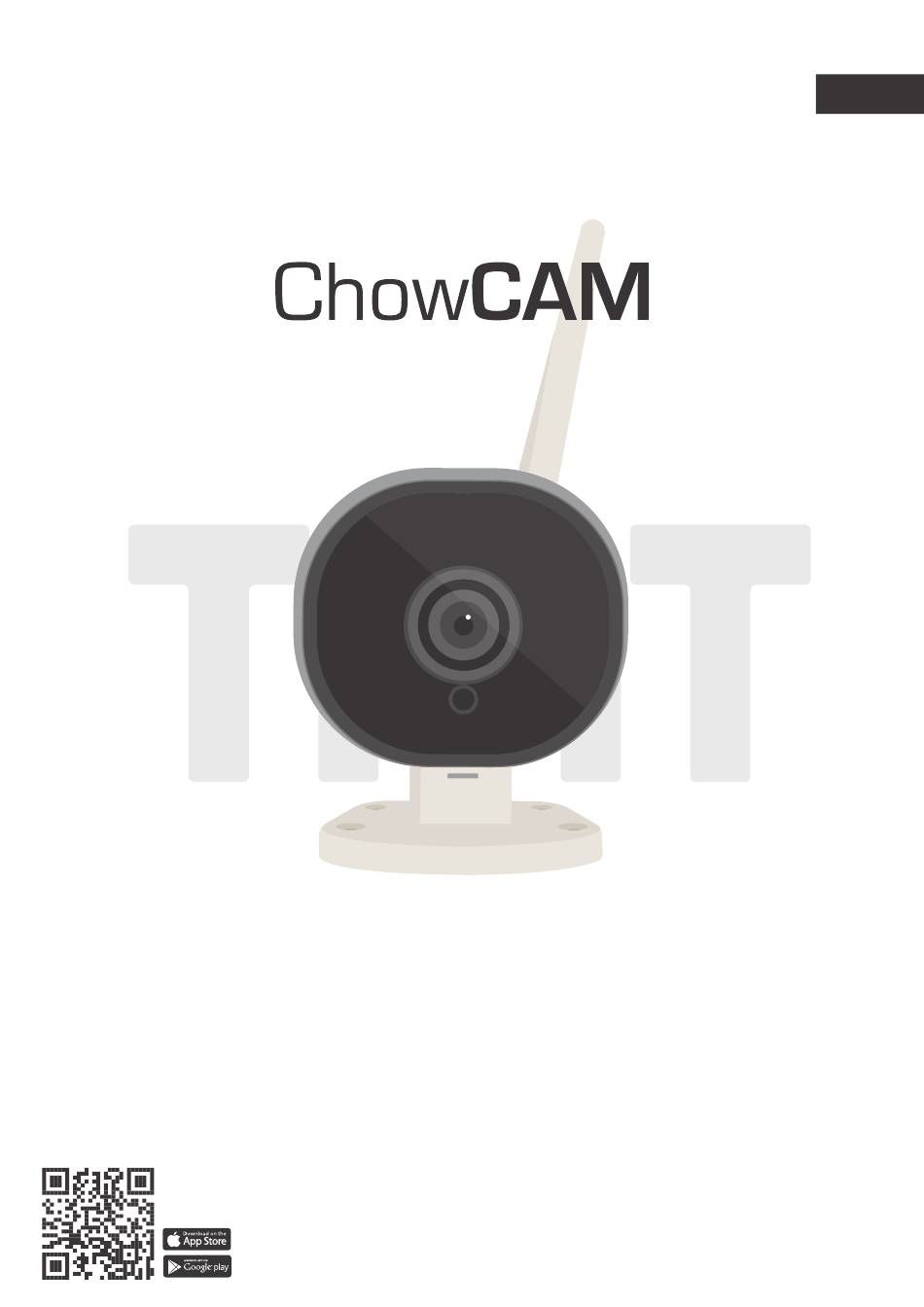

Page 1 BULLET - 1 User Manual www.tmt-automation.com...
Page 2: Table Of Contents
Index Introduction of BULLET1 Product overview Kit contents Speciﬁcations General installation Apply for a new Chow! account Connecting ChowCAM to Chow! App Operation page Owner shares the ChowCAM to other users Push notiﬁcation...
Page 3: Product Overview
WARNING Safety Instructions Please read this manual carefully before installation. TMT Automation Inc. is not responsible for improper installation and failure to comply with local electrical and building regulations. Please keep all the components of the ChowCAM and this manual for further consultation.
Page 4: Kit Contents
Kit contents Power plug LAN cable Antenna Screwdriver BULLET 1 Anchors with screws kit Cable gland Speciﬁcations Display Resolution Full HD 1080P Compression H.264 Frame rate 1920x1080@15fps Field of view 100 Degree Day/night mode ICR with IR LED Connectivity 802. 1 1b/g/n@2. 4 GH Etherne 10/100Mbps Alarm...
Page 5: General Installation P4
General Installation Connect the power plug to Bullet-1. Connect the antenna to Bullet-1 Connect the power plug to a power outlet.
Page 6: Apply For A New Chow! Account P5
Apply for a new Chow! account 1. Please scan the QR code and download the Chow! App 2. Press sign up icon and press the agree icon to continue 3. Please type the following information for registration: a. Email (enter twice for veriﬁcation) b.
Page 7 Connect Bullet-1 to Chow! App Step 1 Add a new ChowCam-BULLET 1 Tap the (+) icon to add a new device New device -> Accessories -> ChowCam-BULLET 1 Tap the (Scan QR code) icon Follow the indications as below: Step 1 – Power the device Step 2 –...
Page 8 Step 2 Connect ChowCam-Bullet-1 Entering the correct password for the Wi-Fi network and press set Scan the QR code in front of the camera untill it sounds once The system starts connecting to Wi-Fi network. TMTChow Step 3 Setting Set the name of your camera Tap the icon of the Camera to enter the operation page.
Page 9 Make a successful ChowCAM setup with your home Wi-Fi Suggest to bring the ChowCAM device close to the home Wi-Fi router as near as possible to receive the best Wi-Fi signal. And make sure the home Wi-Fi source is 2. 4 G from the router not 5G, also must enter the correct password for the home Wi-Fi to complete the setup.
Page 10: Operation Page
Operation page IP Camera 2020-08-07 12:40:30 Name of the device Setting Owner/Manager/User Recorded Video (only with Micro SD card) Speaker Rotation Motion detection...
Page 11: Owner Shares The Chowcam To Other Users
Owner shares the ChowCAM to other users Press the icon on the corner to enter the account management page. Tap the manage shared device. Enter the account which you are going to share. Choose the device you are going to share and tap next. a.
Page 12: Push Notification
Push notiﬁcation Press the icon on the corner to enter the account management page. Tap the push notiﬁcation setting. Turn ON the switches of the notiﬁcation. ***Please go to the settings page of your smartphone, ﬁnd TMT Chow! and allow the notiﬁcations***...
Page 13: Faq
Question 1 How to reset ChowCam-BULLET 1 to default setting? Answer 1 ChowCAM-BULLET 1 Press the ChowCam-BULLET 1 icon on the main page of the Chow! App for 3 seconds Delete the ChowCam-BULLET 1 icon from the App Press the reset button of the ChowCam-Bullet-1 untill it sounds once . Reset button Question 2 Can not ﬁnish the Wi-Fi connecting countdown.
Page 14 Question 4 RJ45 cable terminal LED indication Answer 4 Green LED Orange LED Orange light ON – wait untill the orange light goes OFF. Orange LED and green LED blink alternatively – ready for Wi-Fi connection. Green LED ON – BULETT 1 already connected to Wi-Fi...
Page 17 BULLET - 1 無線WiFi攝影機安裝使用手冊 www.tmt-automation.com...
Page 18 目錄 Bullet 1介紹產品外觀盒包內容規格硬體安裝申請帳號連線到Chow! App 操作介面設備分享推播設定...
Page 19 Bullet 1介紹 Bullet 1是一台無線WiFi攝影機並且能透過Chow! App與其他智能巧家居設備串聯 Bullet 1提供了現場環境的即時畫面讓你在操作前可以確認人員安全可透過影像回放功能，回放動態偵測錄影紀錄，此功能需搭配Micro SD卡使用產品概況攝影機本體 Micro SD 卡插槽重置鍵電源線插孔有線網路插孔警告安全指示安裝前請詳細閱讀此說明書。力州機電股份有限公司不為不當的安裝或造成的損失及損傷負責。請確保您安裝環境的安全，並遵循正確安全的安裝步驟. 請留存此說明書以做日後問題排除之參考。...
Page 20 盒包內容物電源線網路線天線螺絲起子 BULLET 1 安裝組合包電纜頭６規格解析度 Full HD 1080P 視訊編碼 H.264 禎率 1920x1080@15fps 可視角度 100 度日夜間模式支援日夜間模式切換無線網路 802.11b/g/n@2.4GH 有線網路 10/100Mbps 警報移動偵測 Micro SD記憶卡 Micro SD Card 128GB (產品不包含Micro SD卡) 錄影模式事件觸發防水等級...
Page 21 硬體安裝請將電源線連接於電源線插孔請將天線裝於攝影機後方請將插頭插在插座上...
Page 22 申請Chow帳號 1. 請掃描產品包裝的QR碼並下載Chow! APP 2. 點選註冊並同意相關資訊說明 3. 請按照順序輸入註冊資訊 a.　帳號 b.　郵件 c.　郵件 (請輸入第2次確保正確性) d.　密碼 (至少含8位數並包含英數字元) e. 密碼 (請輸入第2次確保正確性) 4. 完成註冊，系統會自動發送驗證信至您的註冊信箱 5. 請到信箱收取驗證信，並點擊信內連結以完成帳號註冊 6. 開啟Chow! APP並登入您的帳戶...
Page 23 連線到Chow! App 連線到Chow! App 點擊(+)以新增設備新增設備->配件->BULLET1 點擊掃描二維碼，請依據以下的指示完成連線： 1. 接上設備的電源 2. 長按重置鍵5秒 3. 當攝影機重置時，會有提示音...
Page 24 連線到Chow! App 輸入正確的WiFi密碼，並點擊設定通過相機鏡頭掃描QR 碼聽到提示音後點擊”我聽到了一個提示” 系統開始連線確認攝影機名稱點擊攝影機圖示進入操作頁面 IP Camera 2020-08-07 12:40:30...
Page 25 WiFi連線提示建議在連線時讓攝影機盡量靠近WiFi訊號源連線時請確認WiFi訊號為2.4GHz 請確認輸入的WiFi密碼正確若WiFi訊號太弱則建議使用有線網路...
Page 26 操作介面 2020-08-07 12:40:30 IP Camera 設備名稱設定頁面擁有者/管理者/一般使用者紀錄影片(需要另裝Micro SD卡) 聲音開關對話開關動態偵測...
Page 27 設備分享點選帳戶圖示進入帳戶管理頁面。點選管理分享設備圖示。輸入被分享使用者的帳號。從設備淸單中選擇欲分享的設備，並選擇被分享者的權限等級(管理者/一般使用者)。...
Page 28 推播設定點擊左下角圖示進入管理推播設定頁面將推播設定以及顯示個人化用戶名稱打開４請進入手機設定頁面將Chow! App的推播功能打開...
Page 29 問題１還原出廠設定回答１長按Chow! App主畫面中的設備圖示3秒 ChowCAM-BULLET 1 在App主畫面中長按攝影圖示後點擊刪除設備長按Bullet 1重置鍵直到設備發出提示音重置按鈕問題 2 無法完成WiFi連線回答 2 請確認以下幾點： 1. 請確認WiFi名稱(SSID)為純英文字元 2. 請確認天線已經接上 3. 請確認WiFi訊號強度足夠(大於-60dBm) 4. 連線時攝影機請盡量靠近WiFi訊號源 5. 請確認WiFi訊號源為2.4GHz 6. 請確認輸入之WiFi密碼正確問題 3 已完成連線的攝影機無法顯示畫面回答 3 1. 請確認所連線之WiFi功能正常 2. 請將攝影機重新斷電上電 3.
Page 30 問題 4 LED燈號顯示 RJ45接點回答 4 綠色LED 橘色LED 1. 橘燈亮 ‒ 開機中，請等橘燈自行熄滅 2. 橘燈綠燈輪流閃爍 ‒ 等待WiFi連線 3. 綠燈亮 - 攝影機已連線到WiFi...
