Summary of Contents for BigBattery 48V RHINO

  • Page 2: Table Of Contents

    ... . . 19 Warranty & Returns ... . . 20 Need Further Assistance? Email us @ Support@BigBattery.com (OR) Call us @ # (818) 280-3091.

  • Page 3: Introduction

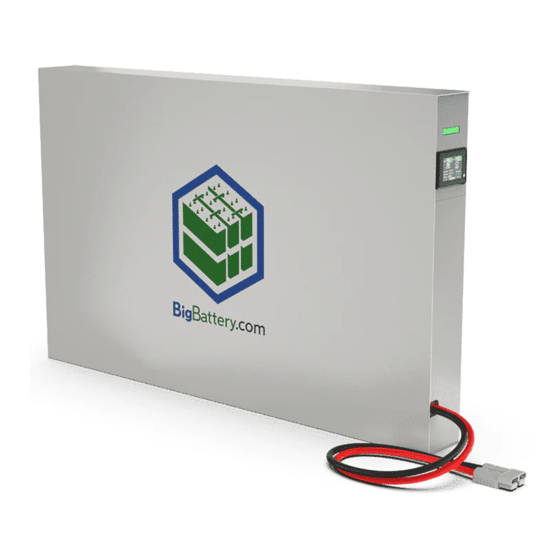

    (to protect from external fires) BigBattery’s 48V RHINO battery is the ultimate solution for your solar systems, off-grid power systems, emergency power supply, and more. The RHINO comes equipped with an advanced BMS, and the newest cell technology, allowing it to operate safely within a much wider temperature range.

  • Page 4: Product Specifications

    Optimal Storage Temp Range (59 - 95) (°F) Weight (290) (lb) Length (43.3) (in) 11.2 (4.4) (in) Width Width with Wall Mount 14.5 (5.7) (in) 67.8 Height (26.7) (in) Need Further Assistance? Email us @ Support@BigBattery.com (OR) Call us @ # (818) 280-3091.

  • Page 5: Safety Features/Specs

    ○ Thermal Management System ○ 300A Fuse ● Battery Connections ○ Series: NOT SERIES CAPABLE ○ Parallel: Maximum of eight (8) battery units connected in parallel Need Further Assistance? Email us @ Support@BigBattery.com (OR) Call us @ # (818) 280-3091.

  • Page 6: Bms Specs

    800 - 1200 Amps Protection Range Scenario 2 (Short Circuit): 600 - 1800 Milliseconds Discharge Overcurrent Protection Delay Range Discharge Overcurrent Reconnection delayed 120 Protection Recovery seconds Condition Need Further Assistance? Email us @ Support@BigBattery.com (OR) Call us @ # (818) 280-3091.
  • Page 7 35 - 50 Microamps (relay closed) Sleep Mode Microamps Self-Power No current, communication, or prolonged Consumption Sleep Conditions protection states 18 hours Time to Sleep Mode Need Further Assistance? Email us @ Support@BigBattery.com (OR) Call us @ # (818) 280-3091.

  • Page 8: Warnings & Precautions

    Before storing battery for more than 6 months, charge the battery to 53V or above. For long-term storage, disconnect batteries from your power system. Always wear protective gear when handling batteries. Need Further Assistance? Email us @ Support@BigBattery.com (OR) Call us @ # (818) 280-3091.

  • Page 9: Installation

    Standard 175-amp connector to Ring Terminal Cable (1) 101.6 cm (40 in) Rope Handles (2) 56.4 cm (RH) (22.2 in) Flat Top Screws (4) 1.3 cm (FS) (0.5 in) Need Further Assistance? Email us @ Support@BigBattery.com (OR) Call us @ # (818) 280-3091.
  • Page 10 110 x 29.9 x 82.6 cm (43.3 x 11.75 x 32.5 in) (FLS) Crossbar Plates (2) 11 cm (CP) (4.33 in) Pan Screws (4) 1.9 cm (PS) (0.75 in) Need Further Assistance? Email us @ Support@BigBattery.com (OR) Call us @ # (818) 280-3091.

  • Page 11: Wall Mount

    1. This will be the top crossbar of your wall mount. Fig. 1 (Make sure to use the appropriate mounting screw - MS1 or MS2 - for the material you will be mounting to) Need Further Assistance? Email us @ Support@BigBattery.com (OR) Call us @ # (818) 280-3091.
  • Page 12 Figure 1. This will be the bottom crossbar of your wall mount. Fig. 2 (Spreader bars – B1 & B2 – are not weight-bearing, and are intended for alignment purposes only) Need Further Assistance? Email us @ Support@BigBattery.com (OR) Call us @ # (818) 280-3091.
  • Page 13 Figure 3. 3. Repeat this process for your second spreader bar (B2). Fig. 3 (Image shows top of B2 and right side of A1) Need Further Assistance? Email us @ Support@BigBattery.com (OR) Call us @ # (818) 280-3091.
  • Page 14 (A1 & A2). Fig. 5 (NOTE: For safety, use at least 3 people when lifting and setting RHINO onto wall mount. 4+ people is recommended for maximum safety.) Need Further Assistance? Email us @ Support@BigBattery.com (OR) Call us @ # (818) 280-3091.

  • Page 15: Floor Stand

    Step 1: 1. Attach rope handles (RH) to sides of the first RHINO unit using the flat top screws (FS) provided, as seen in Figure 4. Need Further Assistance? Email us @ Support@BigBattery.com (OR) Call us @ # (818) 280-3091.
  • Page 16 3. Connect Anderson SB175 end of Anderson SB175 to Ring Terminal Cable (SB) to Anderson SB175 cable inside of the RHINO, as seen in Figure 6. 4. Reattach side panel of RHINO. Need Further Assistance? Email us @ Support@BigBattery.com (OR) Call us @ # (818) 280-3091.
  • Page 17 2. Secure to floor stand with the flat top screws (FS) provided, as seen in Figure 3. Once crossbars are secured, you may unlock wheels and move your RHINOs freely. Fig. 9 Need Further Assistance? Email us @ Support@BigBattery.com (OR) Call us @ # (818) 280-3091.

  • Page 18: Battery Interface

    6. Battery Interface 6.1 Overview Need Further Assistance? Email us @ Support@BigBattery.com (OR) Call us @ # (818) 280-3091.

  • Page 19: Bms Codes

    NOMAL Status Normal status 7. Recycling Dispose of LiFePO4 batteries at an authorized lithium recycling facility, or please return to BigBattery. We can take care of your batteries for recycling for you. Need Further Assistance? Email us @ Support@BigBattery.com (OR) Call us @ # (818) 280-3091.

  • Page 20: Warranty & Returns

    finished an inspection to determine the cause of any problems. BigBattery is not responsible for return shipping. ● DIY modifications or damage due to gross negligence or abuse are not covered by the warranty.

This manual is also suitable for:

Fwrhn-48140-g1
