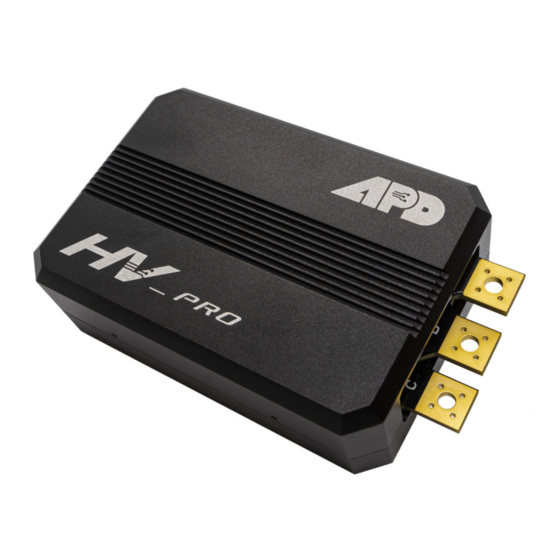

APD HV-PRO Quick Start Manual

This document is just a quick guide to get you up and running with the HV_Pro as soon

as possible.

VOLTAGE

16S 70V

20S 85V

24S 100V

* C o n t i n uo u s c ur r e n t r a ti ng s a r e a t 10 0% t hr o tt l e . S uf f i c i e n t a i r f l o w mu s t b e p r o v i d e d t o

a c hi e v e c o n ti nu o us c ur r e n t r a t i ng .

Quick Start Guide – HV_Pro

CONTINUOUS (A) *

400

300

200

BURST (A)

600

450

300

Table of Contents

Need help?

Do you have a question about the HV-PRO and is the answer not in the manual?

Page 1 Quick Start Guide – HV_Pro This document is just a quick guide to get you up and running with the HV_Pro as soon as possible. VOLTAGE CONTINUOUS (A) * BURST (A) 16S 70V 20S 85V 24S 100V * C o n t i n uo u s c ur r e n t r a ti ng s a r e a t 10 0% t hr o tt l e . S uf f i c i e n t a i r f l o w mu s t b e p r o v i d e d t o a c hi e v e c o n ti nu o us c ur r e n t r a t i ng .
Page 2 Before Power Up ESC Configurator Tool: 1. Please scan QR code on box, or visit http://github.com/AdvancedPowerDrives to find the configuration tool you need to setup your HV_Pro. 2. Connect the HV_Pro to a Windows computer via the micro-USB cable to ensure the latest firmware is installed and adjust the settings to your preferences.
Page 3 Assembly Instructions When soldering cables to your HV_Pro, use the following pictures as a guide: Figure 1. Phase Side Soldering – Please note, Phase A and B cables soldered to bottom side. Figure 2. Input Side Soldering – Please note, Power cables soldered to top side of tabs.
Page 4 Figure 3. Side view of inputs, note the space between signal and Negative input. Figure 4. Completed motor side...
Page 5 Figure 5. Completed Input side Figure 6. Ready for install Warranty Your HV_Pro unit comes with a 12 month replacement warranty for any and all manufacturing faults and failures. Any goods modified from their original form, will void warranty. We will replace/repair items after inspection.
