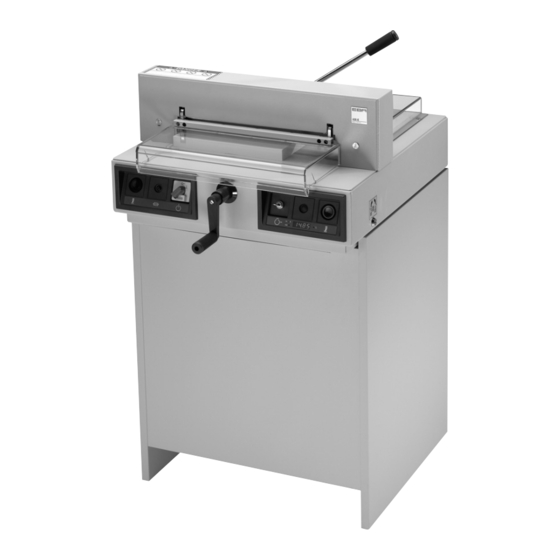

EBA 435 E Operating Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Guillotines
GB Operating Instructions
EBA 435 E
EBA 435 EP
EBA 435 E
EBA 435 EP

Advertisement

loading
Need help?

Need help?

Do you have a question about the 435 E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EBA 435 E

Summary of Contents for EBA 435 E

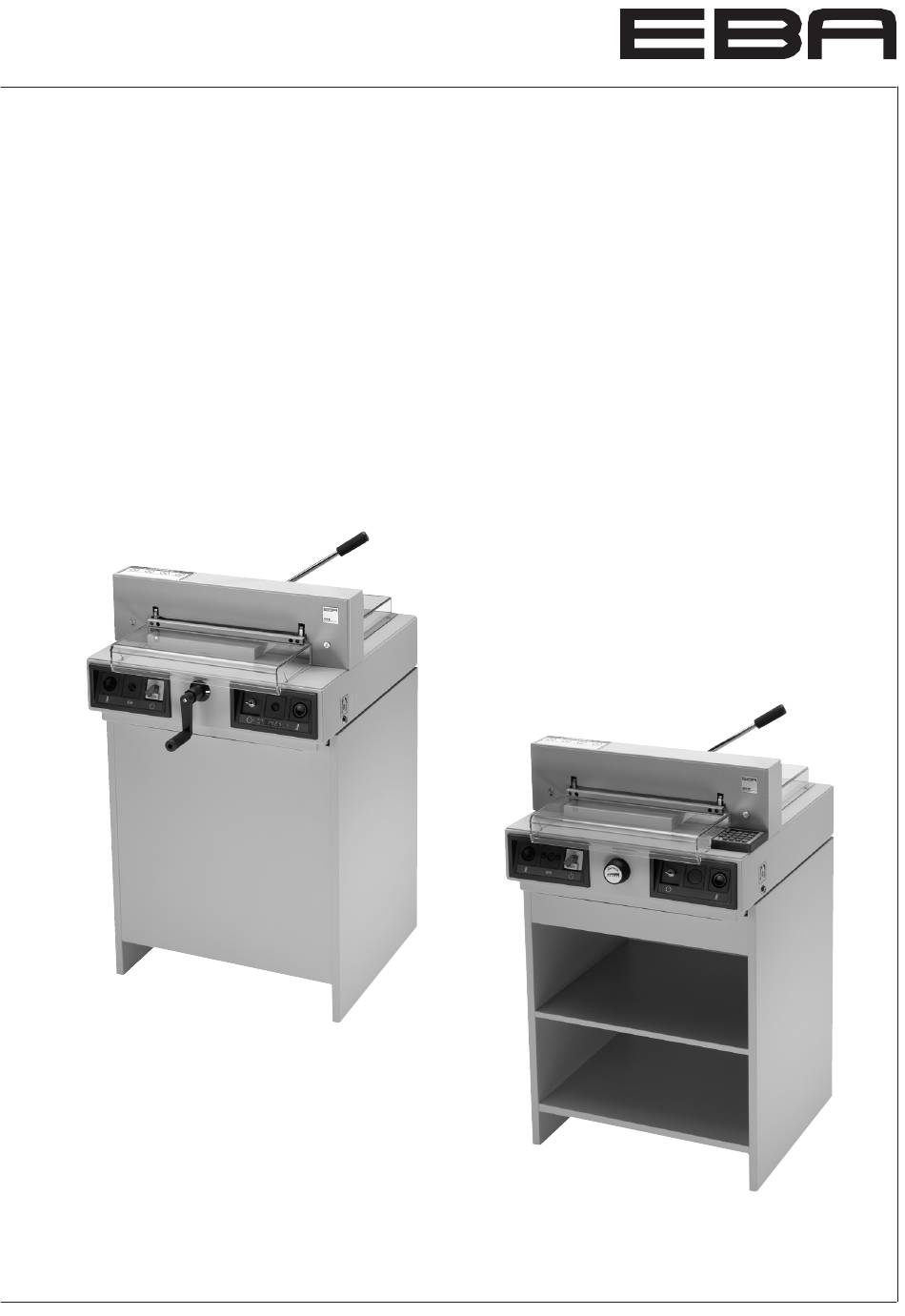

  • Page 1 Guillotines GB Operating Instructions EBA 435 E EBA 435 EP EBA 435 E EBA 435 EP...
  • Page 2 • • Ìåðû ïðåäîñòîðîæíîñòè Środki bezpieczeństwa EBA 435 E • EBA 435 EP Bitte lesen Sie vor Inbetriebnahme der Maschine unbedingt diese Betriebsanleitung und beachten Sie die Sicherheitshinweise. Die Betriebsanleitung muss jederzeit verfügbar sein. Please read these operating instructions before putting the machine into operation and observe the safety precautions.
  • Page 3 • • • Sicherheitshinweise Safety precautions • • • Consignes de sécurité Veiligheidsvoorschriften • • • Misure di Sicurezza Normas de Seguridad • • • • Säkerhetsföreskrifter Turvallisuusohjeita Sikkerhetsforskriftene • • • Ìåðû ïðåäîñòîðîæíîñòè Środki bezpieczeństwa Keine Bedienung durch Kinder! GB Children must not operate the machine! Pas d‘utilisation par un enfant! Geen bediening door kinderen!
  • Page 4 Sikkerhetsforskriftene • • • Ìåðû ïðåäîñòîðîæíîñòè Środki bezpieczeństwa EBA 435 E • EBA 435 EP Messer nie lose liegen lassen! Messer nur mit Messerwechselvorrichtung oder im Messertransportkasten befördern! (siehe Seite 29 und 31). Warnung! Verletzungsgefahr! GB Never leave the blade unattended! Do not extract or transport the blade without protection! (See page 29 and 31).
  • Page 5 • • • Sicherheitshinweise Safety precautions • • • Consignes de sécurité Veiligheidsvoorschriften • • • Misure di Sicurezza Normas de Seguridad • • • • Säkerhetsföreskrifter Turvallisuusohjeita Sikkerhetsforskriftene • • • Ìåðû ïðåäîñòîðîæíîñòè Środki bezpieczeństwa DK Knivbladet må aldrig efterlades uden opsyn. Forsøg ikke at afmontere eller transportere knivbladet uden beskyttelse! (Se side 29 og 31) FARE! Risiko for legemlig beskadigelse.
  • Page 6 • • Safety precautions EBA 435 E • EBA 435 EP The machine is designed for cutting stacks of paper to a specified size. This machine is constructed for "one-man operation" only! Warning! Clips or similar damage the cutting blade.
  • Page 7 • • Safety precautions All components which could endanger the operator are covered by a guard! Operating the machine without safety device is forbidden! • Movable front safety guard (A) • rear screwed safety guard (B) • and cover (C) - 7 -...
  • Page 8 • • Safety precautions EBA 435 E • EBA 435 EP The dangerous cutting movement is safeguarded by a movable guard (A), rear screwed safety guard (B) and a safety two-handed control system! (C) Before working with the machine and after...
  • Page 9 • • Safety precautions Protect mains cable against heat, oil and sharp edges! Connect the power cord to a single phase 230 V / 10A min socket. 120 V / 15A min Ensure free access to mains - 9 -...
  • Page 10 • • Safety precautions EBA 435 E • EBA 435 EP When not in use for a longer period switch off. (Main switch to "0"). Danger! Do not turn main switch to position "0" whilst blade is moving upwards or downwards!
  • Page 11 • • Installation Unpack the cabinet (A), (accessories) or stand (B), (accessories) and assemble according to the enclosed separate instructions. 2 strong people are required to lift the machine onto the cabinet. Beware of fingers! Risk of injury! - 11 -...
  • Page 12 • • Installation EBA 435 E • EBA 435 EP Assembly of stand: 2 strong people are required to lift the machine out of the packaging. • Lay the machine on the floor side wards (1.). • Remove the lower cover (2.) •...
  • Page 13 • • Installation Screw on the and the handle (B). Only on EBA 435 E Screw on the backgauge crank (A). found in the tool set (C). Plug into socket. - 13 -...
  • Page 14 • • Operation EBA 435 E • EBA 435 EP It is forbidden to operate the machine if the operating and safety instructions have not been understood. Please check the safety devices are functioning and complete before use. • All covers have to be mounted (A).
  • Page 15 Position the main switch "I" (A) Insert the key the control system and move it to the right (B). Open the safety guard (C). The machine is now ready for use. Only EBA 435 EP Press button (D). Machine will atomatically go to the start position.
  • Page 16 • • Operation EBA 435 E • EBA 435 EP EBA 435 E EBA 435 E The measurement is set with the backgauge crank.(A) The symbol – rotary direction – moves to the right on the display (B) (see picture C). The rotary direction of the backgauge crank (A) is indicated on the right.
  • Page 17 Optical cutting red line (A). Blade cuts on the front edge (B) of the light beam. (Only use when no exact cut is required). Only for EBA 435 E Pull out the handle to avoid the measurement being wrongly adjusted.
  • Page 18 • • Operation EBA 435 E • EBA 435 EP Position the paper on the backgauge (A) and the side lay (B). To move paper stacks, please use the paper knock-up block (C). Run backgauge to the front for turning the paper stack.
  • Page 19 • • Operation Before every cut the lever must be moved to the left and tightened with light pressure. Cutting activation: Press both buttons of the two-handed control system (A) simultaneously and keep them pressed until the paper is completely cut. To interrupt or stop cutting: To interrupt or stop cutting, release both buttons (A) of the two-hand control.
  • Page 20 • • Operation EBA 435 E • EBA 435 EP Operating elements - Front safety guard - Safety two-handed control system - Overload switch (Blade drive/backgauge drive) - Backgauge control - Clamping - Main switch - Hand-wheel (EP) or crank handle...
  • Page 21 (see picture E). The reference position is reached. The cutting size can now be set with the handle. EBA 430 E has a measurement scale in cm or inch (see picture EBA 430 E page 20). For information on how to store see page 20,...
  • Page 22 • • Operation EBA 435 E • EBA 435 EP Cutting to specified dimensions • EBA 435E: The cutting size can now be set with the handle • EBA 435EP: Enter dimension on the numerical key pad LED "S" appears.
  • Page 23 Do not interrupt the upward movement of the blade by performing switching procedures. • Release blade only when LED "S" has gone out. ( Only EBA 435 EP). • Close the front safety guard • Blade must always be at the top and be covered by the clamp.
  • Page 24 • • Operation EBA 435 E • EBA 435 EP Programming only EBA 435 EP This control system enables you to store 9 programs with 9 programmable steps. One step represents one measurement. After entering the program numbers you are able to change...
  • Page 25 • • Operation Eject function program • Set the measurement press button appears on the display. • Store the measurement with The backgauge will advance and eject the paper and finally return to the position shown in the display. Deleting a dimension when programming Press and overwrite the dimension.
  • Page 26 • • Operation EBA 435 E • EBA 435 EP Working with programs • Press appears on the display. • Enter program number 1 ... 9 With the button you are able to change between several program steps. With the backgauge moves to the indicated dimension.
  • Page 27 • • Blade and cutting stick replacement If the cutting quality decreases: • Check the cutting depth (see page 35). • Check the cutting stick (see page 28). • Replace or grind the blade (see page 27 - 35). The blade cannot be ground if the blade height is less than 35 mm/1,38 inches.
  • Page 28 • • Blade and cutting stick replacement EBA 435 E • EBA 435 EP Turn the blade depth adjustment screw to the left until it stops (screwdriver found in tool set (A). Cutting stick replacement : • Lift the cutting stick by hand and pull it out.(1.).
  • Page 29 • • Blade and cutting stick replacement Position the main switch to "0" (1.) Open the safety guard (2.). Remove the 2 blade screws on the elongated holes (3.). Then put the blade changing tool into place and fasten it to the blade (4.). Remove the remaining 3 screws (1.).
  • Page 30 • • Blade and cutting stick replacement EBA 435 E • EBA 435 EP Take the exchange blade carefully out of the blade box and screw it to the blade changing tool (A) • blade must be covered! (B). Danger! Risk of injury!
  • Page 31 • • Blade and cutting stick replacement Place the blade to be exchanged, using the blade changing tool, into the blade carrier and push to the top and to the left.(1.) (see picture A) while doing so push both springs back. It is only necessary to push back the springs if a polished blade is to be exchanged.
  • Page 32 • • Blade and cutting stick replacement EBA 435 E • EBA 435 EP Push the blade changing tool to the top with your hand (1.). First, lightly tighten the middle blade screw with your other hand (2.) and then both blade screws left and right (3.).
  • Page 33 • • Blade and cutting stick replacement Remove all tools and distribute paper along the entire cutting length (1.). Turn main switch to position "I" (2.). Close the safety guard (1.) Lower the blade by pressing both cutting buttons (2.) If the last sheet of paper is not completely cut, gradually turn the knob for blade-depth adjustment (A) ¼...
  • Page 34 • • Blade and cutting stick replacement EBA 435 E • EBA 435 EP Tighten all 5 blade screws. - 34 -...
  • Page 35 • • Blade and cutting stick replacement Paper cutting test. If the last sheet or several sheets are not completely cut, gradually turn the knob for blade depth adjustment (A) ¼ turn to the right until the paper is cut along the entire length.
  • Page 36 • • Maintenance and cleaning EBA 435 E • EBA 435 EP Maintenance work may only be performed by trained staff. Danger! Disconnect the mains before starting any service work or before removing the cover. Safety test The safety regulations are according to the regulations of the country where the cutting machine is operated.
  • Page 37 • • Blade and cutting stick replacement = Greasing points on the machine Nr. 9003 233 Nr. 9001 828 Grease the backgauge (A) control weekly. (Use non-resinous grease). Grease the remaining parts (B) twice a year (see picture). Danger! Disconnect the mains before starting any service work or before removing the cover.
  • Page 38 • • Possible malfuntions EBA 435 E • EBA 435 EP Machine does not function! Is the machine plugged in? Main switch to position "I"? (A) Control system activated? (B) (Turn key to the right) Release a cut see page 19.
  • Page 39 • • Possible malfuntions Machine turns off: EBA 435 E and EBA 435 EP • Machine overloaded Safety button (A) ejects. Allow 1 minute cooling time and reset the safety button (A). • Machine blocked • Blade is blunt Eliminate the cause, and push the safety button (A).
  • Page 40 • • Possible malfuntions EBA 435 E • EBA 435 EP Does not cut through the last sheet: • Turn or turn around the cutting stick (A), readjust the blade by means of the blade adjusting knob (B). (See page 35).
  • Page 41 • Possible malfuntions Motor runs but blade does not move downwards. • Security brake has been activated! Inform the service team! www.eba.de "Service" service@krug-priester.com Display illumination off • Machine is plugged in? (A) • Main switch on position "I"? (B) •...
  • Page 42 • • Possible malfuntions EBA 435 E • EBA 435 EP EBA 435 E/EP Cut cannot be made. • If cover is open: close it. • If cover is closed: open and re-close it. (Security check). Onlly EBA 435 EP Cut cannot be made.
  • Page 43 • • Possible malfuntions None of the above mentioned methods helped to solve the problem: Contact Service Team under • www.ideal.de "Service" service@krug-priester.com - 43 -...
  • Page 44 • • Accessories EBA 435 E • EBA 435 EP Recommended Accessories: Blade Nr. 9000 121 Cutting stick (6 pieces) Nr. 9000 221 Paper knock-up block Nr. 9000 520 Blade changing tool Nr. 9000 517 Cabinet Nr. 4215 1100 Stand Nr. 4205 1100 Included in delivery.
  • Page 45 Table- Minimum space Weight length depth requirement (B X T X H) mm EBA 430 E 640 x 695 x 355/*/** 80 /*/** EBA 430 EP 655 x 695 x 355/*/** 84 /*/** * with stand: 1044mm/E, 1044mm/EP 90 kg/E, 94 kg/EP...
  • Page 46 • • Technical data EBA 435 E • EBA 435 EP This machine is approved by independent safety laboratories and is in compliance with the EC-regulations 98/37/EG, 2006/95/EG and 2004/108/EG. Sound level information: The sound level is < 70 db (A) as defined by EN 13023.
  • Page 47 EG-KONFORMITÄTSERKLÄRUNG EC-declaration of conformity Déclaration de conformité CE EG-verklaring van overeenstemming Dichiarazione CE di conformità Declaración CE de conformidad - Hiermit erklären wir, daß die Bauart von - Herewith we declare that - Par la présente, nous déclarons que - Hiermede verklaren wij, dat de in de handel gebrachte machine - Si dichiara che il modello della - Por la presente, declaramos que la 435E...
  • Page 48 EBA • Made in Germany Document Shredders Trimmers and Guillotines • • • • • EBA Krug & Priester 72336 Balingen Germany www.eba.de...

This manual is also suitable for:

435 ep
