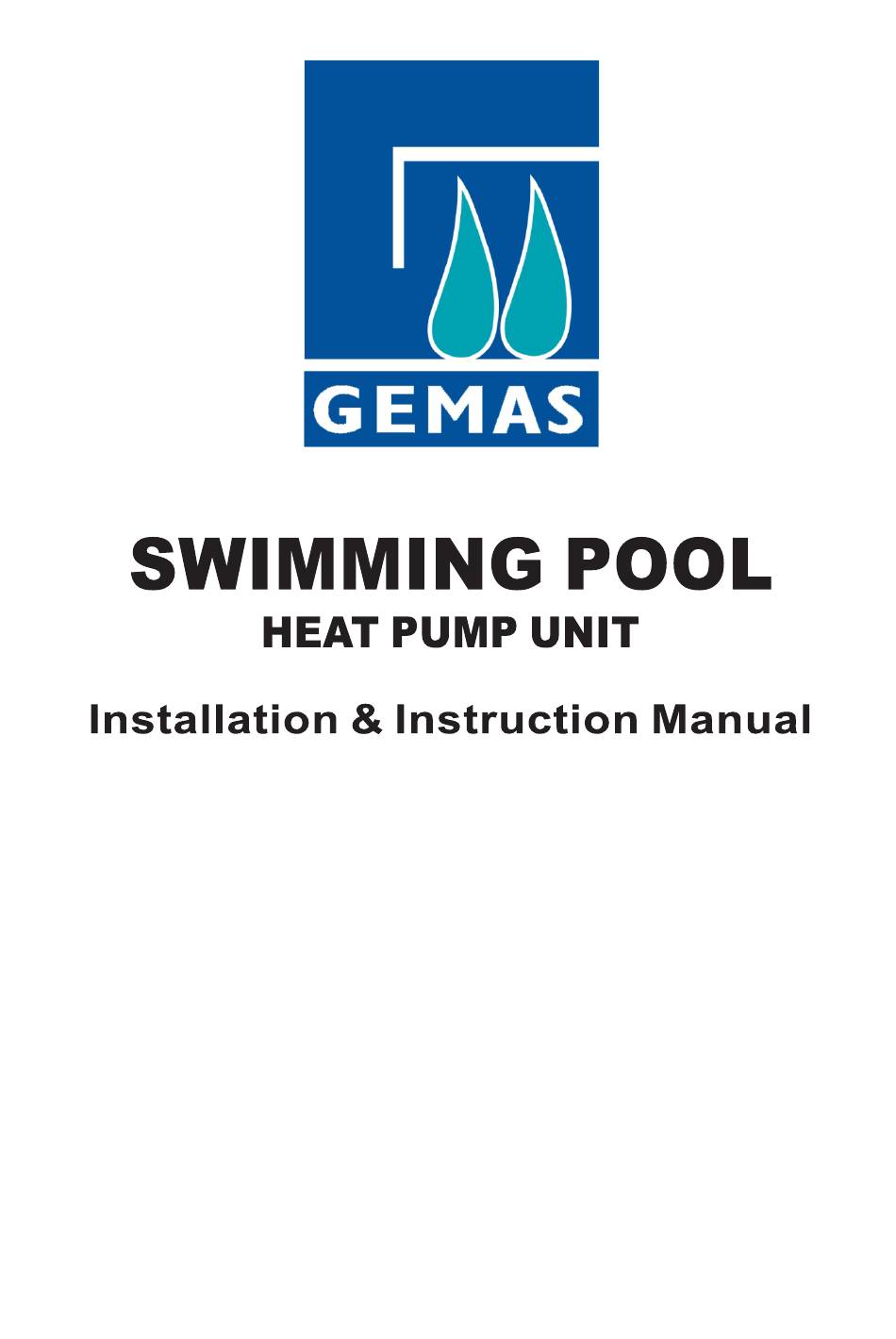

Gemas FASHCW Installation Instructions Manual

Swiming pool heat pump unit

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FASHCW and is the answer not in the manual?

Questions and answers

Summary of Contents for Gemas FASHCW

  • Page 2: Table Of Contents

    Contents To user ---------------------------------------------------------- I. Parameter----------------------------------------------------- I . Installation--------------------------------------------------- 1. Unit installation position ---- ----------------------------------------------- 2 Heat Pump Positioning ---- ---------------------------------------------- c o n n e c t i n g 3. Pool Pipe ------------------------------------------------ 4. Electric wiring -------------------------------------------------------------- III Use ------------------------------------------------------------ 1.
  • Page 3: To User

    TO USER Dear customers, thank you for using our products. Here is some matters need attention for you below , as improper operation or unqualified engineering will reduce the service life of equipment, damage the unit, and even cause safety accidents: General procedures 1.
  • Page 4 3.When the environment temperature is lower than 0 ℃, if do not use the heat pump for a long time, please check the water of unit and system have been drained out or not, otherwise it will easy to frost and damage heat exchanger. 4.Please ensure in and out of the water temperature difference of circulating water pump is between 6 ℃...
  • Page 5: Parameter

    I.Parameter 030MS3(T3) 040MS3(T3) 060MS3(T3) 080MS3(T3) MODEL:FASHCW 25.0kW Heating Capacity 13.0kW 17.0kW ① 35.0kW (A24W28) 85300BTU/h 44400BTU/h 58100BTU/h 119500BTU/h ① ① 4.55kW 2.36kW 3.09kW Input Power 6.36kW ① 4.5A 5.9A 8.6A 12.1A Input Current 18.0kW ② 9.0 kW 12.0kW Cooling Capacity 24.0kW...
  • Page 6: Installation

    II.Installation 1. Unit installation position To avoid ventilation short, the unit’s discharged air should not be return when installation. Please keep enough space around the unit for repair. Right and wrong means as below: Wrong Right Notice: 1. To get enough air for ventilation of the unit, the installation position should be with good ventilation.
  • Page 7: Heat Pump Positioning

    2. Heat Pump Positioning 2.1 For correct operation air must be free to circulate around the heat pump. Do not place the unit in a shed, greenhouse or similar. This unit is designed to be placed outdoors only. 2.2 Refer to the drawing below for required clearance. 2.3 You should position the heat pump so that the control panel does not face directly towards the sun.
  • Page 8 3.7 Fit a union joint onto each pipe. 3.8 Push the gasket over the pipe until the gasket is about 5 -10mm from the edge of the pipe. You may need to lubricate the gasket. 3.9 Insert the pipe into the heat pump and tighten the union joint. 3.10 The union must only be hand tightened.
  • Page 9: Electric Wiring

    3:Picture 3 effective for top fan type models(2) SWIMMING POOL Chlorinator Filter Water pump Check-valve Picture 3 4. Electric wiring 4.1 Unit supply cable must be used copper. Power supply voltage should be in line with the rated voltage and the rated current. 4.2 The unit, power supply circuit must have a grounding wire, and the power supply ground wire must connect to...
  • Page 10: Use

    III.USE 1.Uses of the wire controller 1. 1. Operation Mode The unit would operate under Auto mode - If pool temperature is higher than the set temperature ,heat pump would cool automatically, if pool temperature is lower than the set temperature, heat pump would heat automatically. 1.2.
  • Page 11 2.3 The running Mode The unit is default running automatic mode ,when the water inlet temperature is higher than the setting temperature ,the unit is running cooling mode ,if the water inlet temperature is lower than the setting temperature ,the unit is running heating mode . 2.4 Water inlet temperature setting On the unlock status ,press ”...
  • Page 12 B.Tuimer OFF setting After finishing step 1, press “TIMER” key again, time area displays “OFF”, and “Hour” flicks, press “UP” and “Down” to adjust “hour” for the first period. Press “timer” again, “minute” flicks, press “UP” and “Down” to adjust “minutes” for the first period. p o w e r w at er l ev el...
  • Page 13 C. Cancel Timing power on/off or water suplly: Press “timer” for 3 seconds, after a beep sound the timing function will be canceled. Notes: 1. If the unit is without power supply for a long period, the time and timing power on/off setting may be invalid.
  • Page 14: Iv.maintenance

    Corresponding measurement points of compressor defrosting temperature System 3 Coil temperature System 3 Suction temperature Corresponding Compressor suction temperature detection point System 3 Discharge temperature Corresponding compressor discharge temperature detection point Outdoor air temperature detection point System 3 Ambient temperature Reserve Reserve Reserve...
  • Page 15 B. Check if there is air in the water pipes of the unit. If yes, please remove all the air through the vent valve on the water tubes and vent valves on the water pump. C. Check to assure that the blades of the fan do not touch the fixed panel or the protection net of the fan.
  • Page 16: Malfunction Indicating Table

    3.Malfunction indicating table Solution System 1 discharge temperature sensor malfunction System 2 discharge temperature sensor malfunction Ambient temperature sensor 1. Sensor loose or falling off; 1. Fasten the sensor; malfunction 2. Sensor detector open or short circuit; 2. Replace the sensor wire. System 1 Water outlet 3.
  • Page 17: Determine And Solve Malfunction

    4.Determine and solve malfunction by below table: Reason Solution Malfunction 1. Shut down and check the power 1.Power failures 2. The unit wire loses 2.Check the reason and repair The unit can't run 3.Check and change the power fuse 3. The unit power fuse burns out. 1.Сheck the water supplement equipment and supply 1.
  • Page 18: Unit Wiring Diagram

    5. Unit wiring diagram Effective for the model of FASHCW030MS3(T3) FASHCW040MS3(T3) FASHCW060MS3(T3) Effective for the mode of FASHCW080MS3(T3) FASHCW100MS3(T3) FASHCW120MS3(T3)
  • Page 19 Effective for the mode of FASHCW180MS3(T3) FASHCW200MS3(T3)
  • Page 20 SWIMMING POOL HEAT PUMP...
