Read completely, then follow step-by-step.
1
Window Requirements
s

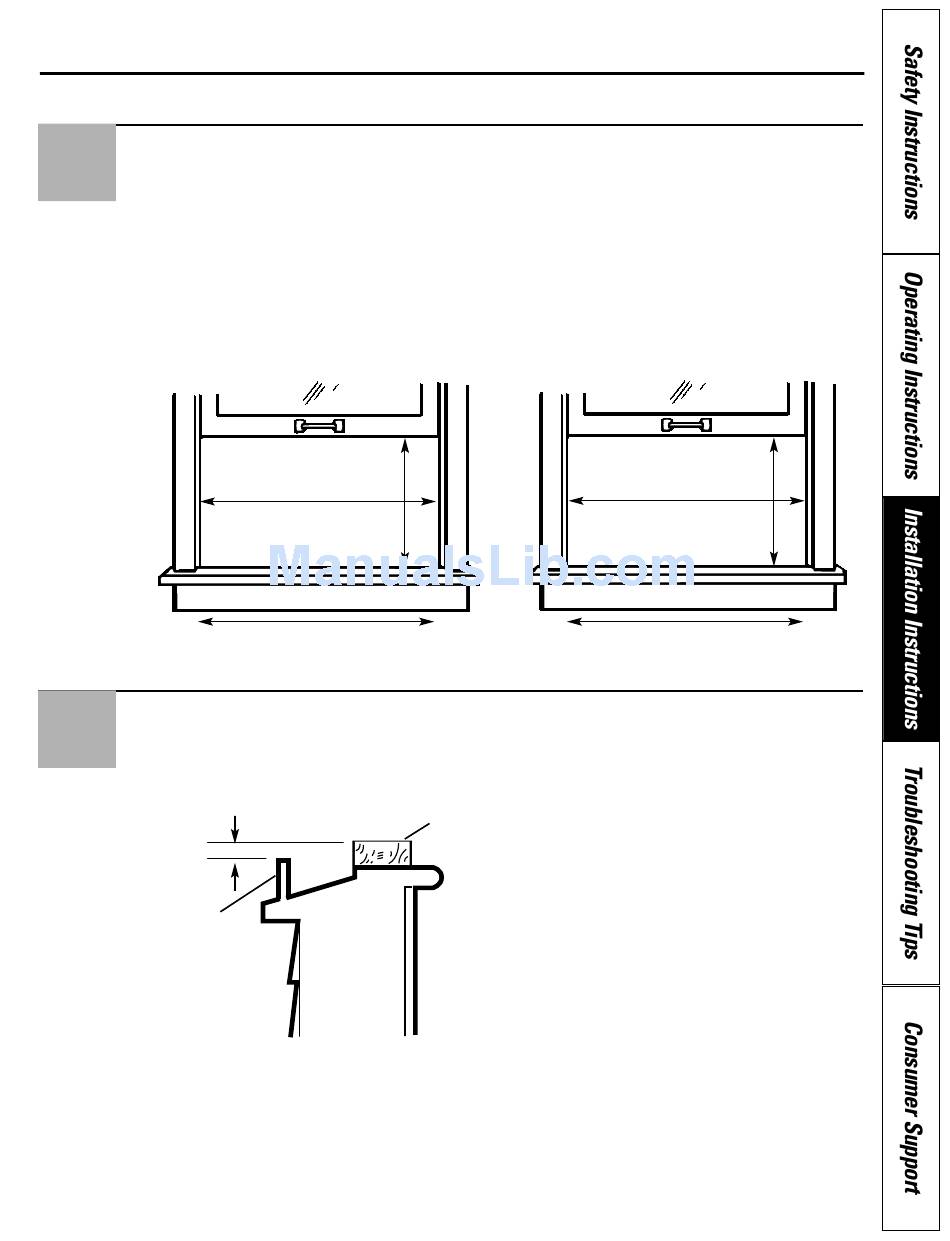

These instructions are for a standard double-
hung window. You will need to modify them for
other types of windows.
s
The air conditioner can be installed without
the accordion panels if needed to fit in a narrow
window. See the window opening dimensions
below.
6,000, 8,000 and 10,000 BTU models
(See dimensions at right for AGM10)
2
Storm Window Requirements
A storm window frame will not allow the air
conditioner to tilt towards the outside and will keep
it from draining properly. To adjust for this, attach
a piece of wood to the stool.
1/2" higher
than frame
Storm window
frame
14" min.
22" to 36"
(With accordion panels)
" min.
18 ⁄
3
4
(Without accordion panels)
Wood
Stool
s
All supporting parts must be secured to firm
wood, masonry or metal.
s
The electrical outlet must be within reach
of the power cord.
AGM10, 12,000 and 14,000 BTU models
27" to 39"
(With accordion panels)
" min.
23 ⁄
7
8
(Without accordion panels)
WOOD PIECES—
WIDTH: 2"
LENGTH: Long enough to fit inside the window
frame.
THICKNESS: To determine the thickness, place a
piece of wood on the stool to make it 1/2" higher
than the top of the storm window frame.
Attach securely with nails or screws provided by
the installer.
16" min.
