LP TENT Airtents Assembly Instructions

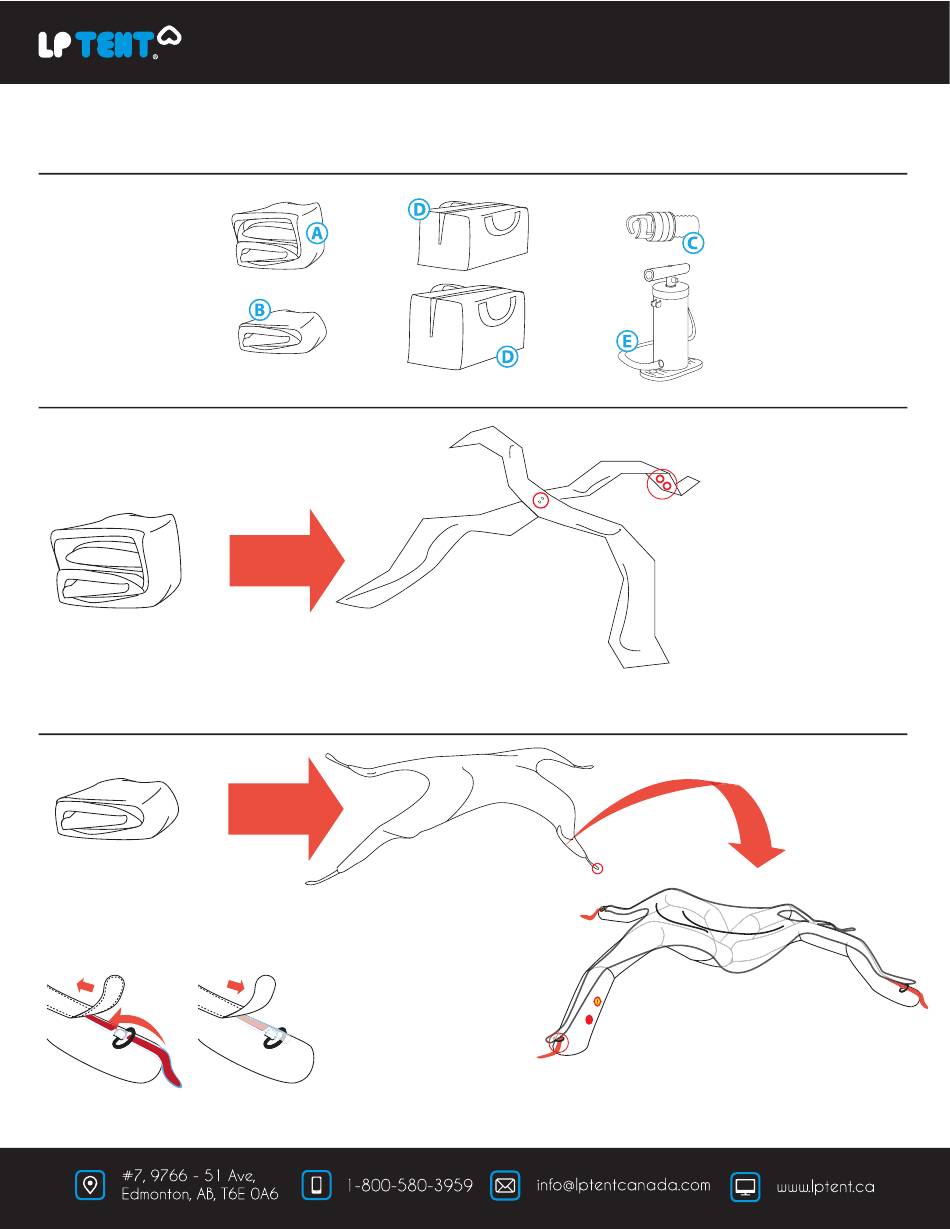

Assembly Instructions for Airtents

Pieces

A.Frame

B.Top

C.Pump Adaptor

D.Carrying Bags

E.Pump

Roll out the frame so that the 2

in the middle of the X pattern. The air valves (2) should

be pointing to the ground.

*Be sure there are no twists in the legs

**Be sure that all the vents are in locked close position and caps are on tight.

Unfold and tie the center of the top to the 2

center of the frame. Place the top on the frame and

secure the Velcro straps (1) from 3 of the arms to the

rings (2) on 3 of the frame legs.

Blue

marked D rings are on top

Blue

marked D rings in the

Blue

marked D

AIR

Table of Contents

Do you have a question about the Airtents and is the answer not in the manual?

Page 1 Assembly Instructions for Airtents Pieces A.Frame B.Top C.Pump Adaptor D.Carrying Bags E.Pump 1. Opening The Air Tent Blue Roll out the frame so that the 2 marked D rings are on top in the middle of the X pattern. The air valves (2) should be pointing to the ground.
Page 2 Assembly Instructions for Airtents 3. Inflating The Tent Attach the pump adaptor to the end of the pump hose. Remove the cap from the valve (1) directly below the emergency release valve (2). Attach the vent to the valve (1) to inflate the tent.
Page 3 Assembly Instructions for Airtents Aditional Notes If you’re using and electric pump: AP2000 BASIC - Once attached to the frame turn the pumps yellow on and fill the tent until the tube is inflated. On 6m and 8m tents you will need to engage the red switch to allow maximum PSI to fully inflate.
Page 4 Assembly Instructions for Airtents Advised Securing Procedures Fix the straps to the marked D Rings and place the stakes at an approximate distance of 3ft from the legs. Rope and Peg Kit system Water Weight Bag. Attaches to for securing the tent.
