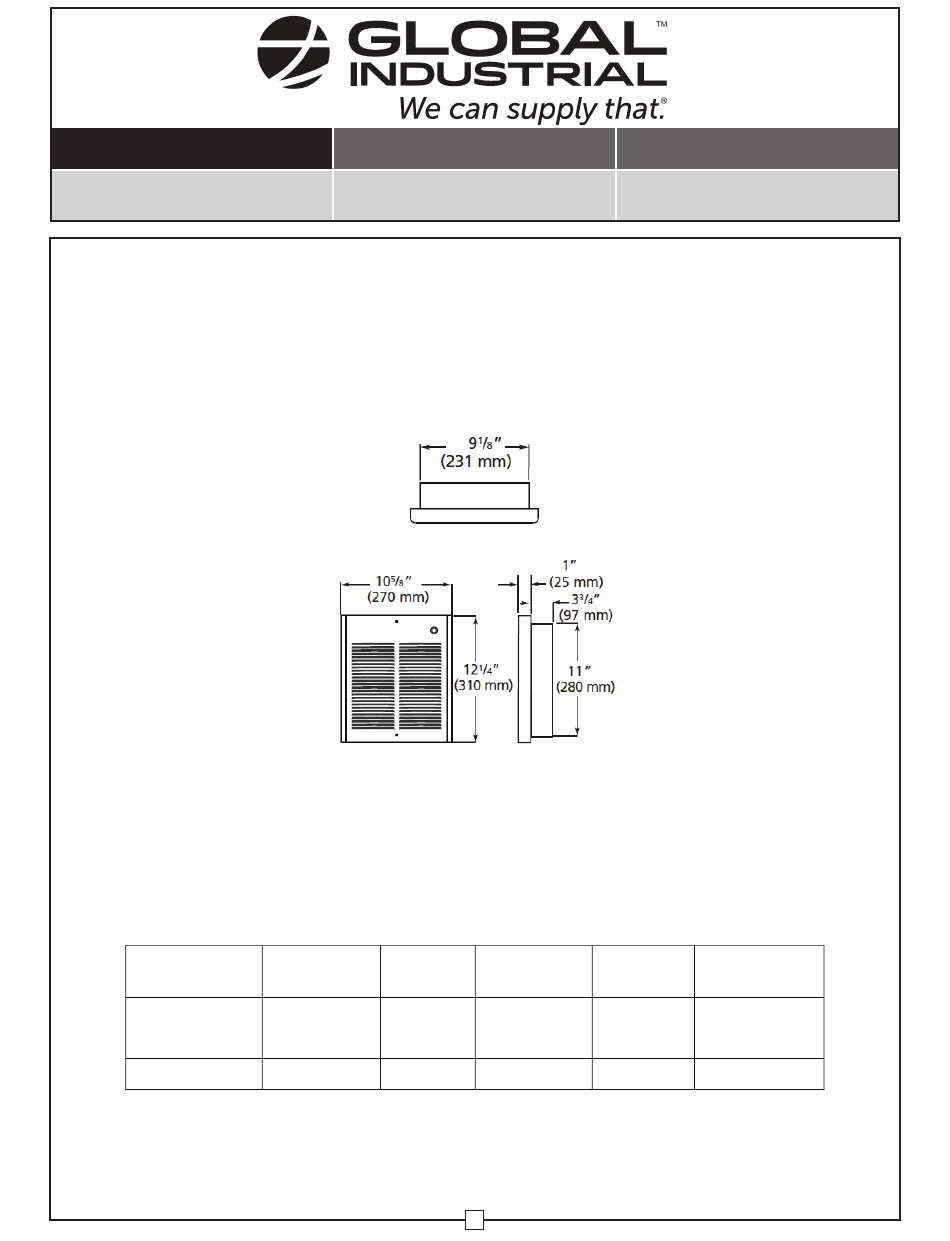

User's manual
Customer Service
US: 1-800-645-2986
Please read carefully before attempting to assemble, install, operate or maintain the product
described. Protect yourself and others by observing all safety information. Failure to comply with
instructions could result in personal injury and/or property damage! Retain instructions for future
reference.
Model number
246744
246745
NOTE : This full wattage heater can be converted to half wattage in the field or at the factory
Manual del usuario
Servicio de atención al Cliente
US: 1-800-645-2986

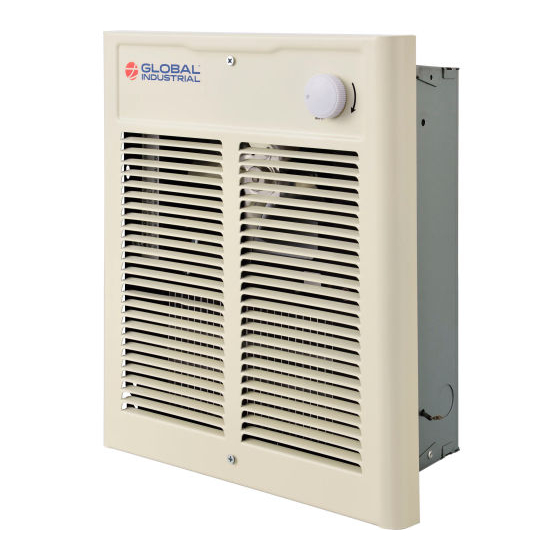

Fan Forced Wall Heater
Model(s): 246744, 246745
SPECIFICATIONS
Volts
Phase
120
1
240/208
1
Watts
Amps
1500
12.5
750
6.25
2000/1500
8.3/7.2
1
Manuel de l'utilisateur
Service à la clientèle
Canada: 888-645-2986
Min. Supply
Wire Gauge
12
12
14
Advertisement
Table of Contents
Related Manuals for Global Industrial 246744
Summary of Contents for Global Industrial 246744
- Page 1 Canada: 888-645-2986 US: 1-800-645-2986 Fan Forced Wall Heater Model(s): 246744, 246745 Please read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference.
- Page 2 Fan Forced Wall Heater GENERAL INSTRUCTIONS GENERAL INSTRUCTIONS WARNING 1. Read ALL instructions before installing or using this heater. 2. Use this heater only as described in this manual. Any uses not recommended by the manufacturer are liable cause fire, electric shock, or injury to persons. 3.
- Page 3 Fan Forced Wall Heater SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS WARNING 1. Before wiring or servicing, disconnect all power coming to heater at main service panel. 2. All wiring procedures and connections must be in accordance with National and Local Codes having jurisdiction. 3.
- Page 4 Fan Forced Wall Heater INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS NOTE: Heater is designed for recessed installation into wall using 2" x 4" studs FOR NEW CONSTRUCTION FOR NEW CONSTRUCTION 1. Determine which side of the back box is to be mounted against a stud and bend the tabs at the rear corners out 90 degrees so that the back box will be square with the stud after installation (see Figure 1).
- Page 5 Fan Forced Wall Heater FIELD CONVERSION FOR LOWER FIELD CONVERSION FOR LOWER WATTAGE RATINGS WATTAGE RATINGS NOTE: Refer to "Specifications" for available lower wattage ratings To convert heater to lower wattage rating, completely remove red jumper wire from both heating elements (see Figure 2). Do not remove or damage other wires or pins in the process.
- Page 6 Fan Forced Wall Heater INSTALLATION OF FRONT GRILLE INSTALLATION OF FRONT GRILLE AND THERMOSTAT KNOB AND THERMOSTAT KNOB 1. Fasten front cover to heater assembly using the (2) long screws supplied. 2. Fit the thermostat knob on to the thermostat shaft and push into place. MAINTENANCE AND OPERATION MAINTENANCE AND OPERATION CAUTION: Heater must be installed properly before operation.
- Page 7 Fan Forced Wall Heater HOW TO RESET OVER- HOW TO RESET OVER- TEMPERATURE SAFETY CONTROL TEMPERATURE SAFETY CONTROL This heater features an over-temperature safety control that will turn off the heater if it overheats. If this control engages, a red warning light, visible through the front of the grille, will shine to alert the owner that the heater is shut down and may require maintenance.
