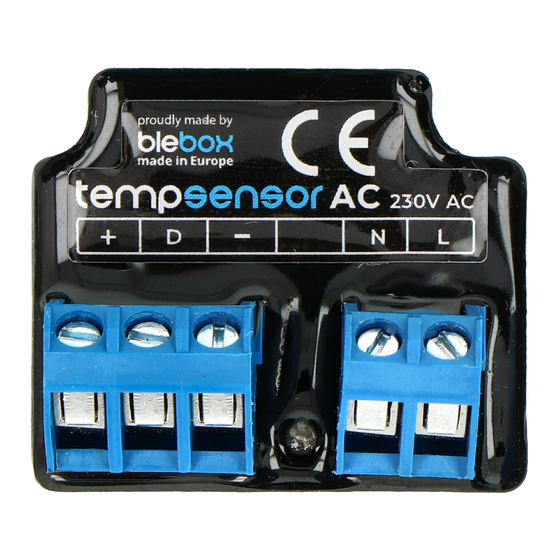

BleBox tempSensorAC User Manual

temp sensor
temperature sensor with the
µWiFi technology
MINIATURE TEMPERATURE SENSOR WITH 230V POWER SUPPY
SAFETY RULES
Connect only in accordance with the diagram presented
in the manual. Improper connections may be dangerous,
it can damage the controller, and loss of the warranty.
DANGER! Risk of electric shock! Even with the device
turned o , the outputs may be live. All assembly work
should be ALWAYS performed with the disconnected
power circuit.
Protect the power circuit with overcurrent protection in
B characteristic and rated current up to 6A.
Connection of the controller must be carried out only by
persons with the corresponding electrician license.
INSTALLATION - BASICS
"Disconnect the installation supply voltage before installing the
controller. Remember that any mounting works should be carried
out when the mains voltage is disconnected (switch o the mains
fuse or disconnect the power cord from the mains socket).
The controller should be installed in a place protected against
adverse environmental conditions, protected from third party
access - in the ush box or inside the enclosure of the controlled
device. Remember that metallic elements (wires, housing parts)
have a negative in uence on the range of the device, and
consequently the comfort of use. It is recommended that the
device be mounted in a stable and xed position. Due to the
operating voltage of the device it is necessary that the connectors
of the controller be protected against accidental contacts or short
circuits, which could cause electric shock or damage to the device.

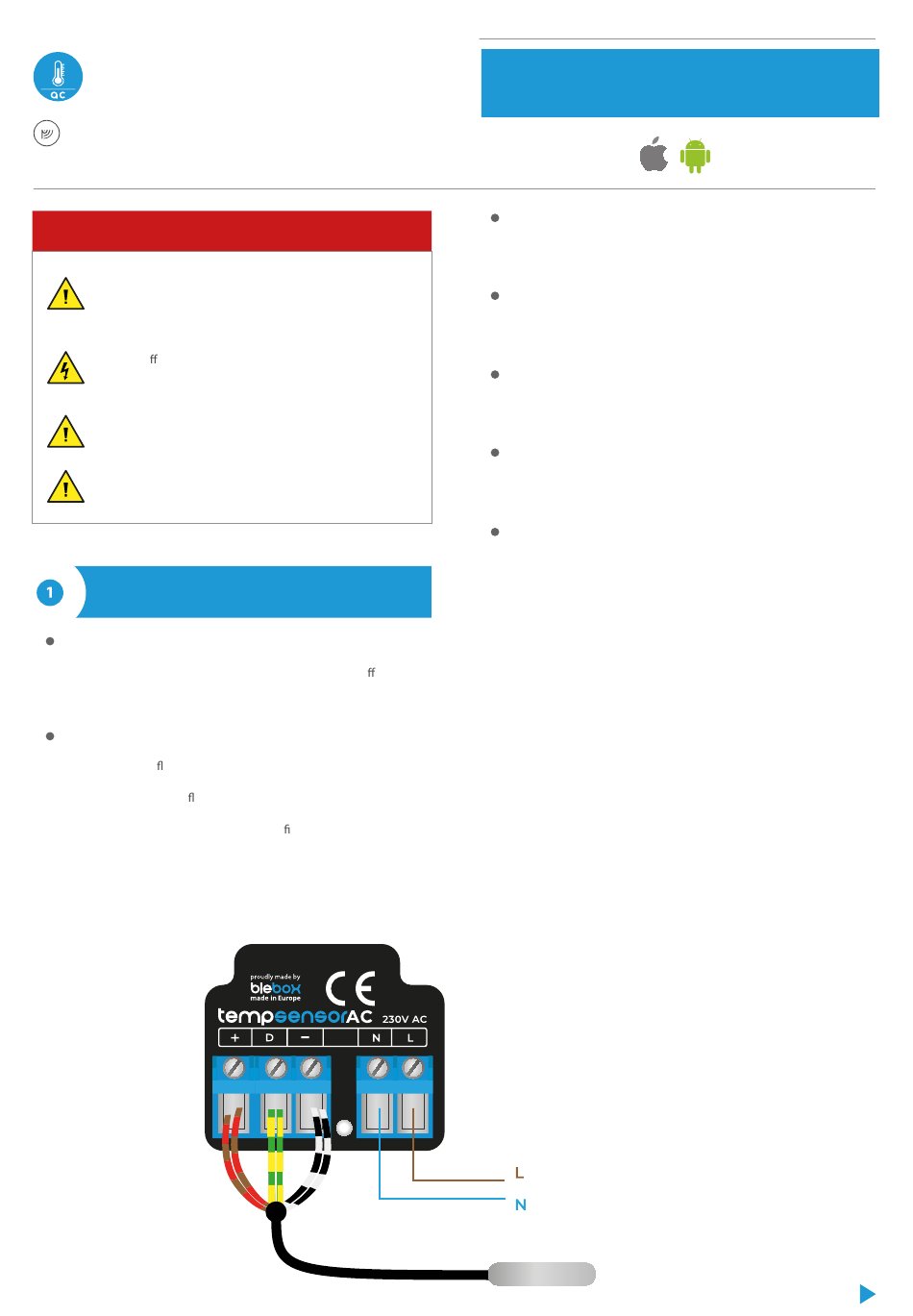

CONNECTION DIAGRAM
AC
User manual
The measurement probe is waterproof. It is not allowed to install
the probe in a place exposed to contact with oils, liquid fuels,
solvents and caustic substances, as well as in places exposed to
the direct action of high temperatures.
Read the diagram and then proceed to install the controller. Pay
particular attention to the designation of the controller connec-
tors. Start with power wires - phase L (usuallybrown) and neutral N
(blue).
Than connect the external temperature probe, in the order of wire
colors (from left): red and yellow and black or brown, green and
white. If the additional probes are also installed they must be
connected in parallel.
A digital probe was used to measure the temperature. It is not
recommended to extend the original temperature probe cable
excessively since the induced interference can cause the contro-
ller malfunction or even damage it.
After making sure that the device is connected in accordance with
the diagram and that there are no metal components near the
controllerwhich may accidentally cause short-circuit, start the
device by turning on the power (turning on the mains fuse or
connecting the power cord to the power outlet).
230V AC
PROBE
