Summary of Contents for OmniPower Eishbox 426
- Page 1 USER MANUAL EISHBOX 426 : PORTABLE BACKUP POWER UTILITY METERING Page 1 MODEL: EISHBOX 426...
- Page 2 INTRODUCTION The Eishbox 426 400W UPS is a light weight, portable, high capacity UPS that uses the latest lithium battery technology. We provide three output modes: AC wall plug, USB-A adapter, and a direct DC 12V adapter. The Eishbox 426 will provide you with a backup solution for your home/business to get through those difficult load shedding hours &...

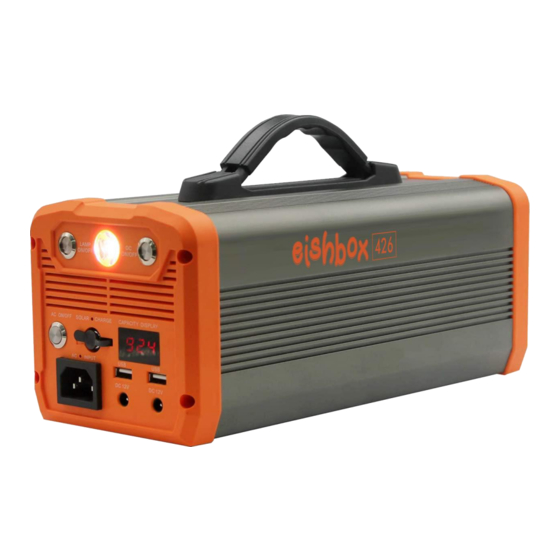

- Page 3 Solar charging indicator AC output switch Capacity display USB ports AC input socket 12V output ports Solar charging port Charging indicator Charging - red, Full - green AC output socket EISHBOX 426 : PORTABLE BACKUP POWER UTILITY METERING Page 3...
- Page 4 As shown in the figure, plug the AC input power cord into the wall socket, then connect your device into the AC Output socket of the UPS and turn on the AC output switch. The Eishbox 426 is ready to use.
- Page 5 DC output. You can consult the electrical manufacturer to buy the corresponding adapter and connect with it. The 12V DC output has a maximum total current of 6A, each DC output has a maximum current of 3A. EISHBOX 426 : PORTABLE BACKUP POWER UTILITY METERING Page 5...
- Page 6 SOLAR CHARGING The Eishbox 426 has a solar charging port. Solar panel should be 18V 2.1A min 40W max 100W. Please note that the Solar Panel is not included with the unit and will need to be purchased separately. 40W ~ 100W solar panel DC 5.5*2.1mm interface...
- Page 7 The product will automatically turn off if short-circuit occurs. Unplug the unit Short Circuit and restart Overcharging and This product has a built-in overcharge and short-circuit protection control unit Short-circuit Function Weight/Size N.W 3.6kg; G.W 4.4kg EISHBOX 426 : PORTABLE BACKUP POWER UTILITY METERING Page 7...
- Page 8 WARNINGS: The Eishbox 426 only supports devices below 400W. The following appliances should never be used with the unit: EISHBOX 426 : PORTABLE BACKUP POWER UTILITY METERING Page 8...
