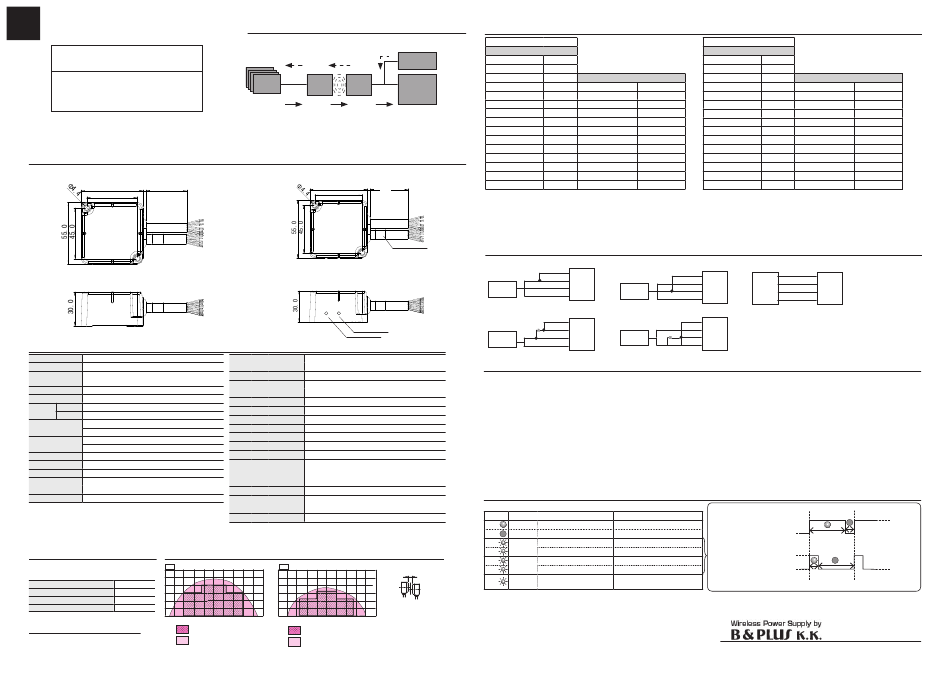

B&PLUS Wireless Power Supply RS24E-424N-PU Series User Manual

Remote System
User's Guide
Remote sensor sysytem
24 signal transmission / Compact shape
24V1A type
Output sensor：RS24E-424N-PU-_ _(NPN)
RS24E-424P-PU-_ _(PNP)
Transmitter： RS24T-424-PU-_ _
【Function of each component】
Detector : Connects Detector sensor (max.24) and transmits the detected signals to Transmitter.
Transmitter : Provides power for Detector, also passes detected signals from Detector to Output Sensor.
Output Sensor : Puts out detected signal to external controller, also sends power for operating of Detector and Transmitter.
Dimension
Transmitter : RS24T-424-PU-_ _
55.0 (3.0) (L)
45.0
Cable 2
Cable 1
L=Cable length
The notation in meters to
the end of the model
･･･PU-02 ⇒ 2m
max. 5m
(Transmitter,Outputsensor)
Specification of the System
Type RS24T-424-PU-_ _
Applicable sensor DC 3-wire sensor
Drive voltage
24V ± 1.5V DC
(Output voltage)
Drive current total ≦ 1A
Input signals 24(SI1... 24) and a switching signal(NPN / PNP)
in the case of 1A 0...4mm
Operating
distance
i n the case of 0. 5 A 0...6.5mm
± 6mm :Transmission distance is within 3mm
Center offset (1A)
± 2.5mm:Transmission distance 3...4mm
± 8mm :Transmission distance is within 4.5mm
Center offset(0.5A)
± 3mm :Transmission distance 4.5...6.5mm
Operating temperature 0...+50℃
Protection class IP67
Cable PUR φ 8.6x2(2x0.5mm 2 +13x0.18 ｍｍ 2 ）+（12x0.18 ｍｍ 2 ）
【RB】
Material Case Polyurethane
Heat sink Aluminum
Weight Body 165g +Cable 105g/m x2pcs.
*¹【RB】represents robot cable specifications.
*² Indicates the time from when the remote and base sections are energized in the transmittable area to when non-contact signal transmission is possible.
*³ Metal protection is a function to prevent metal heat generation when facing metal, and is not guaranteed to work on all metals. Do not intentionally place metal against the communication surface.
Typical Transmitting Diagram
Available sensors
Use a sensor that operates correctly within the
1A
conditions in the table below.
Supply voltage
24V DC
Total currenconsumptoion ≦ 1A
Residual voltage ≦ 6.5V
Load current
-
-8 -6 -4 -2
Operating area
2021.12.21 T319301Fe
Drive current ≦ 1A
System configuration
[ Detector ] [ Transmitter ] [ Output sensor ]
24V DC
Power Power
supply supply
DC3-wire,
RS24T RS24E
sensor
max.24 signals
Detected Signal Detected
signal transmission signal
Output sensor：RS24E-424N-PU-_ _ ， RS24E-424P-PU-_ _
55.0 (3.0)
45.0 (L)
Cable 2
Cable 1
In zone LED
Status LED
Type NPN RS24E-424N-PU-_ _
PNP RS24E-424P-PU-_ _
Supply voltage(Input voltage)
24 V DC ± 5 ％
active Max 1.5 A (with 1A drive)
Current
consumption Max 0.1 A (when not facing)
static
Number of output signals 24+1(In zone)
Load current ≦ 50mA/ 1output
Startup time ≦ 0.2sec*²
Frequency of operation 300Hz
LED indication Status (Green), In zone (Orange)
Operating temperature 0...+50℃
Protection class IP67
Reverse connection protection, overheat protection,
short circuit protection,
*¹ Protection circuit
overcurrent protection Output surge absorption
protection, head metal facing protection *³
Cable PUR φ 8.6x2(2x0.5mm 2 +13x0.18 ｍｍ
Material Case Polyurethane
Heat sink Aluminum
Weight Body 165g+ Cable 105g/m x 2pcs.
(Supply voltage at 24V /non-flush mount）
Y mm
0.5A Y mm
5 10
4 8
3
6
2 4
1 2
0 2 4 6 8 X -12 -9 -6 -3 0 3 6 9 12
X
Operating area
Drive current ≦ 0.5A
Wiring color
RS24T-424-PU-_ _
Cable 1 (with marked tube)
External Power
Output+24 Ｖ WH
Unit(24V DC ）
Output0V
PaleBU
Polarity switching POL BK
Input 1（SI1） BN
Host device
Input 2（SI2） RD
Input 3（SI3） OG
Input 4（SI4） YE
Input 5（SI5） GN
Input 6（SI6） BU
Input 7（SI7） VT
Input 8（SI8） GY
Input 9（SI9） BN ＊■ ■
Input 10 （SI10）RD ＊■ ■
Input 11 （SI11）OG ＊■ ■
Input 12 （SI12）YG ＊■ ■
■ Polarity switch POL is used to switch the polarity (NPN/PNP) of the sensor connected to the transmission unit.
Check the wiring diagram, and wire it according to the sensor to be connected. If it is not wired, no signal will be detected.
■ When shipped from the factory, the unused core wire of the cable is cut. If the cable is shortened for wiring reasons, the unused
core wire will be exposed. If you shorten the cable for wiring reasons, the unused core wire will be exposed, so please take care
not to short-circuit the cable. Unused wires are as follows: Cable 1: Green*, Blue*, Purple*.
Cable 2: brown*, red*, orange*, yellow*, white, empty. (* indicates a wire with ■ ■ or ** printed on the core wire of each color.)
Marking tube
Wiring Diagram
<When connecting a 3-wire NPN type detection sensor>
（ ）
POL
（+） （+）
（ ） RS24T
（ ）
Detection sensor － －
（NPN） （ ）
出力 （ ）
SI
<In case of 2-wire detection sensor connection (NPN setting)>
（ ）
POL
（+）
1 ～ 2 ＫΩ
RS24T
（+） （ ）
SI
Detection sensor
（DC2W） （ ） （ ）
－
－
Protection function
The following is an explanation of the protection functions provided.
Reverse connection protection ... When 24V and 0V are connected in reverse on the power line of the output section, this function turns off the output for a certain
period of time to protect the circuit.
Overheat protection ... is a function that measures the temperature inside the output section and stops the power supply when the temperature exceeds a certain level.
When the temperature drops, it restarts.
Short-circuit protection ... This function turns off the output for a certain period of time to protect the circuit when a current exceeding the specification flows through
the signal output line due to wiring without load.
Overcurrent Protection ... This function detects the current inside the output section and stops transmitting for a certain period of time when the current exceeds a
certain value, thereby protecting the circuit.
Output surge absorption protection...A surge absorption circuit is built in to protect the output circuit.
Head metal confrontation protection ... This function protects the circuit by stopping transmission for a certain period of time when metal is detected.
2 ） + （12x0.18 ｍｍ 2 ）
LED indication
■ Status LED（Green）
LED Lighting pattern
ON -
OFF -
Blink Off time of the LED is long Anomalous temperature
Slow
（1.5 sec）
Blink Lighting time of the LED is long Oscillation circuit overcurrent.
Blink Mid.Speed Off time of the LED is long Supply voltage is high.
（0.6 sec）
Blink Lighting time of the LED is long Supply voltage is low.
Y
High speed The LED flashes at the
Blink
（0.2 sec） same interval
X
■ In zone LED (Orange)
X:Center offset(mm)
The in zone LED lights up when the transmission part and the output part are in a confronting state and communication is possible.
Y:Operating distance(mm)
RS24E-424N/P-PU_ _
Cable 1 (with marked tube)
Input+24 Ｖ
Input 0V
Cable 2 In zone Iz
Input 13（SI13） GN ＊■ ■ Output1（SO1）
Input 14（SI14） BU ＊■ ■ Output2（SO2）
Input 15（SI15） VT ＊■ ■
Output3（SO3）
Input 16（SI16） GY ＊■ ■
Output4（SO4）
Input 17（SI17） BN ＊＊■ ■ Output5（SO5）
Input 18（SI18） RD ＊＊■ ■ Output6（SO6）
Input 19（SI19） OG ＊＊■ ■ Output7（SO7）
Input 20（SI20） YE ＊＊■ ■ Output8（SO8）
Input 21（SI21） GR ＊＊■ ■ Output9（SO9） BN ＊■ ■ Output21 （SO21） GR ＊＊■ ■
Input 22（SI22） BU ＊＊■ ■ Output10 （SO10）RD ＊■ ■ Output22 （SO22） BU ＊＊■ ■
Input 23（SI23） VT ＊＊■ ■ Output11 （SO11）OG ＊■ ■ Output23 （SO23） VT ＊＊■ ■
Input 24（SI24） GY ＊＊■ ■ Output12 （SO12）YE ＊■ ■ Output24 （SO24） GY ＊＊■ ■
<When connecting a 3-wire PNP type detection sensor>
<Connecting to an external PLC, etc.>
（ ）
POL
（+） （+）
（ ） RS24T
－ （ ）
Detection sensor －
（PNP） （ ）
出力 （ ）
SI
<In case of 2-wire detection sensor connection (PNP setting)>
（ ）
POL ■
When wiring, please check the wiring diagram carefully
（+） （+）
to ensure that the wiring is correct.
RS24T
1 ～ 2 ＫΩ （ ）
Detection sensor －
■
When connecting a DC 2-wire sensor, wire a resistance of
（DC2W）
（ ） （ ）
－ SI
about 1 to 2kΩ.
Lighting time of the
Meaning
LED is long
- The power supply is supplied.
- The power supply is not supplied.
OFF time of the
LED is long
Short circuit protection.
https://www.b-plus-kk.jp/
WH
PaleBU
BK Cable 2
BN Output13（SO13） GN ＊■ ■
RD Output14（SO14） BU ＊■ ■
OG Output15（SO15） VT ＊■ ■
YE Output16（SO16） GY ＊■ ■
GN Output17（SO17） BN ＊＊■ ■
BU Output18（SO18） RD ＊＊■ ■
VT Output19 （SO19） OG ＊＊■ ■
GY Output20 （SO20） YE ＊＊■ ■
（+）
（ ）
－
RS24E PLC
（ ）
Iz
（ ）
SO
ON
OFF
ON
OFF
E-mail seles@b-plus-kk.jp
