INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS
Air Specialties Express, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040
DO NOT INSTALL, USE OR OPERATE THIS EQUIPMENT UNTIL THIS MANUAL HAS BEEN READ
AND UNDERSTOOD. READ AND SAVE THESE INSTRUCTIONS FOR FUTURE USE.
The ASX Pressure control system uses the flexibility of our highly efficient EC motors and controllers in
conjunction with accurate pressure measuring equipment and a versatile setpoint control unit to maintain a
user-defined duct static pressure.

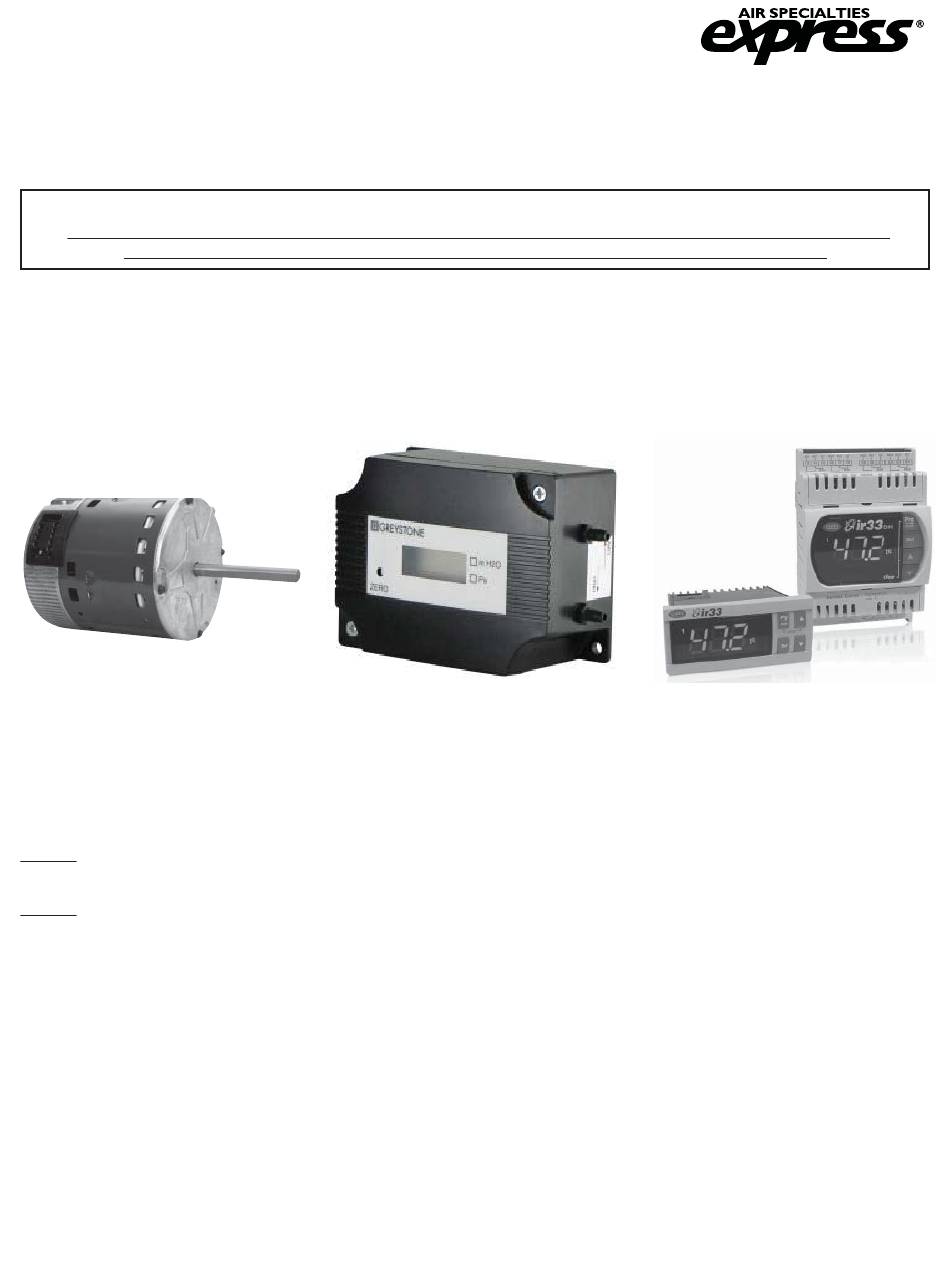

A direct drive ASX fan with
Eco-Drive motor and Automation
Control Unit (ACU).
NOTE: Fan must be sized appropriately for the system it is connected to as well as all intended system
configurations.
NOTE: The ACU can be used to manually control the output of the motor independently from the rest of the
pressure control system. This is beneficial for system balancing as well as for fine tuning of the setpoint
control system. Refer to the ASX ECM - ACU Control Specification Sheet for details on how to operate
the ACU controller.
PRESSURE CONTROL OPTION WITH ECM MOTORS
The system consists of the following three components:
A static pressure tap located in the
duct, connected to an electronic
pressure transducer.
Phone: (877)945-9175
CAUTION!
Fax: (608)845-6504
www.airspecialties.com
A setpoint control with three
character, digital display.
FORM ASX-31003-C, Page 1
