Handbook for the

Wyvern

2000N Banknote Operated Timer

Part Number 918-000-995 July 2012 Issue 3

Table of Contents

Need help?

Do you have a question about the Wyvern 2000N and is the answer not in the manual?

Questions and answers

Summary of Contents for LCI Wyvern 2000N

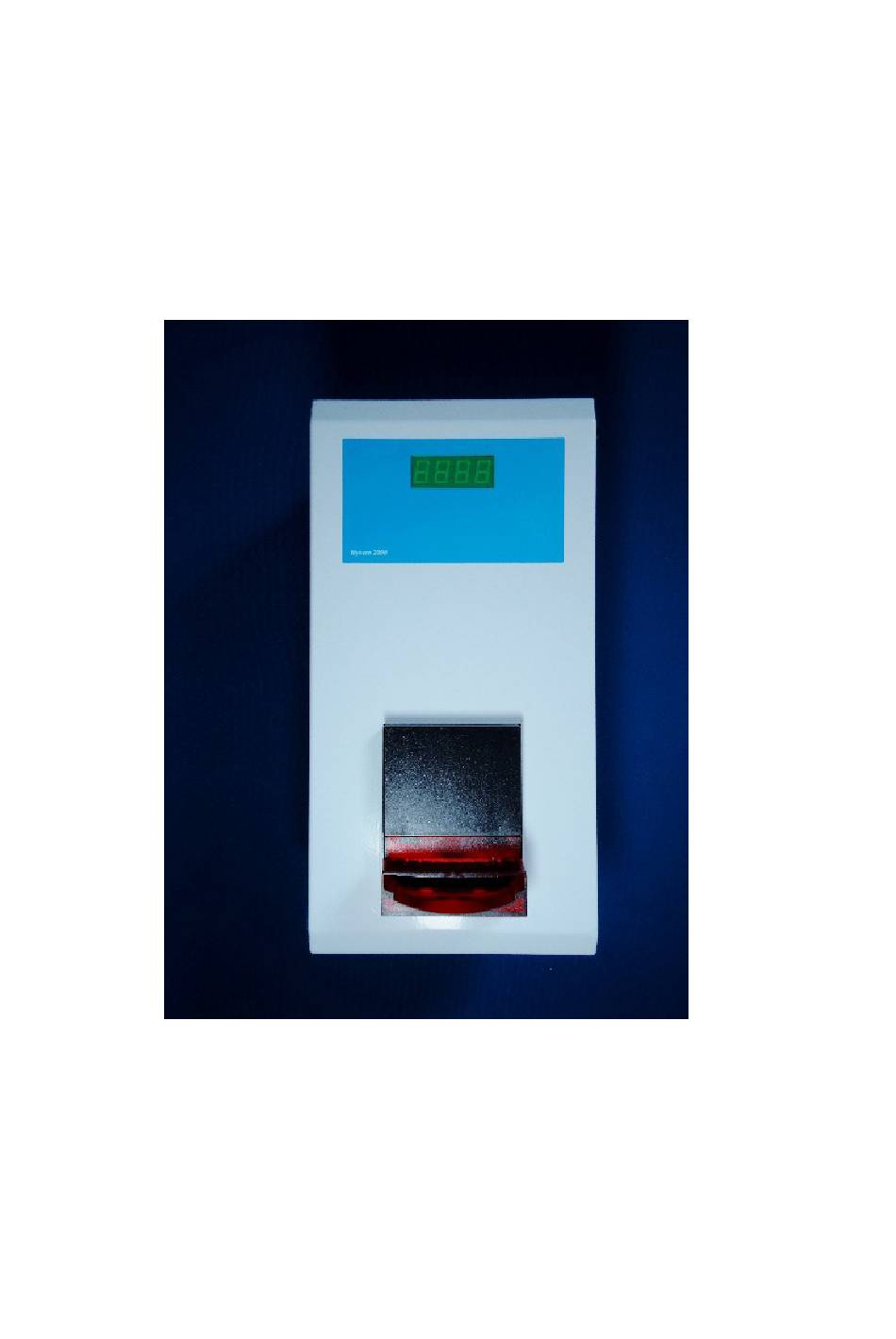

Page 1 Handbook for the ® Wyvern 2000N Banknote Operated Timer Part Number 918-000-995 July 2012 Issue 3...
Page 2: Table Of Contents
+44 (o) 1258 489075/455393 (General) or +44 (0) 1258 483577/483574 (Technical support) Fax: +44 (0) 1258 488526/456410 E-mail: General enquiries: info@lci.gb.com, Technical support: support@lci.gb.com Web: www.lci.gb.com ©2008 - 2012 Wyvern is a registered trade mark of Leisure Controls International Ltd...
Page 3: Introduction
® Wyvern 2000N Banknote Timer Handbook Introduction Operational Features ® The Wyvern 2000N offers an extensive range of features to suit many banknote ® timer applications. The Wyvern 2000N is supplied as a voltage switching device but may be used for voltage free applications by removing a wire link. Figure 1 shows the main operational features and this manual provides all Cover Lock (4) Display (1)
Page 4: Installation
® Wyvern 2000N Banknote Timer Handbook Installation Mechanical Installation The Wyvern® 2000N timer should be mounted on a smooth vertical wall away from corners so the cover lock can be easily accessed. The timer is 350 mm high by 175 mm wide and has a depth of 140 mm so allow sufficient clearance for the cover to swing down when opened.
Page 5 ® Wyvern 2000N Banknote Timer Handbook Earth Mains Input Switched Output Figure 2 - Mains Wiring LINK LOAD LOAD MAINS INPUT LOAD OUT MAINS INPUT MAINS VOLTAGE SWITCHING VOLTAGE FREE SWITCHING Figure 3 - Output Switching Options...
Page 6: Programming
® Wyvern 2000N Banknote Timer Handbook Programming To control the operation of the timer it needs to be programmed. This consists of entering numbers (or options) into memory locations by using the programming switches and the display (see Figures 1 and 4) Figure 4 - Programming Template ®...
Page 7 ® Wyvern 2000N Banknote Timer Handbook With LKSW1 in the ON position press and hold both programming buttons for approximately 5 seconds to enter the programming menu. Press and release the UP button to access the option number required. To alter the program settings hold the UP button for about 4 seconds until the option number flashes and use the UP and DOWN buttons to change the value.
Page 8 ® Wyvern 2000N Banknote Timer Handbook code required. Hold the UP button down until the first two digits flash. Use the UP and DOWN buttons to select the minutes required per note. After a short period a “beep” occurs allowing seconds required to be programmed. After approximately 10 seconds this value is stored and the first digit flashes allowing another STPN program code to be selected.
Page 9 ® Wyvern 2000N Banknote Timer Handbook Program Description Maximum Channel Code Value Note 1 value Note 2 value Note 3 value Note 4 value Note 5 value Note 6 value Note 7 value Note 8 value Note 9 value Minimum Start Credit (MSC) Program code 5 sets the MSC so that sufficient notes must be inserted to meet a ®...
Page 10 ® Wyvern 2000N Banknote Timer Handbook Access the options menu as described earlier and using the UP and DOWN buttons move to option 6. Hold the UP button until the first digit flashes and the display shows 6-:xx where xx is the pre-time. Hold the UP button down until the first two digits flash.
Page 11: Interrogation Menu
® Wyvern 2000N Banknote Timer Handbook Interrogation Menu The interrogation menu gives access to various audit functions. To access the interrogation menu press and hold both UP and DOWN buttons for approximately 5 seconds. Press and release the UP button to access the interrogation number required.
Page 12: Operating Instructions
® Wyvern 2000N Banknote Timer Handbook Operating Instructions When a note is entered either “St:xx”, “Pr:xx” or “ti:xx” will be displayed depending if the used note exceeds the minimum start credit set in option 5. Until the required minimum is reached “St:xx” will remain displayed. Once the minimum is reached the load is activated and timing will begin unless a pre-time has been programmed.
Page 13: Summary Program Codes
® Wyvern 2000N Banknote Timer Handbook Summary of Program Codes Program Description See Page Value Used Code Number Factory pre-set and cannot be changed MSC. Sets the minimum amount before timing starts Pre-time. Set to zero if not 7, 8 required 71-79 STPN.
Page 14: Summary Interrogation Codes
® Wyvern 2000N Banknote Timer Handbook Summary of Interrogation Codes. Selection Description Page Maximum Code Total sessions activated 65535 Total hours load has been on 65535 Total hours used including pre 65535 and cool down time Total currency value for 999999 accepted notes...
Page 15: Technical Specifications
Remove all sources of power from the timer before attempting any repairs. Technical Support Before contacting technical support visit the FAQ section of Leisure Controls International’s web site at www.lci.gb.com/technical_support.phtml where many answers to questions may be found. Alternatively contact technical support with the appropriate country distributor or...
