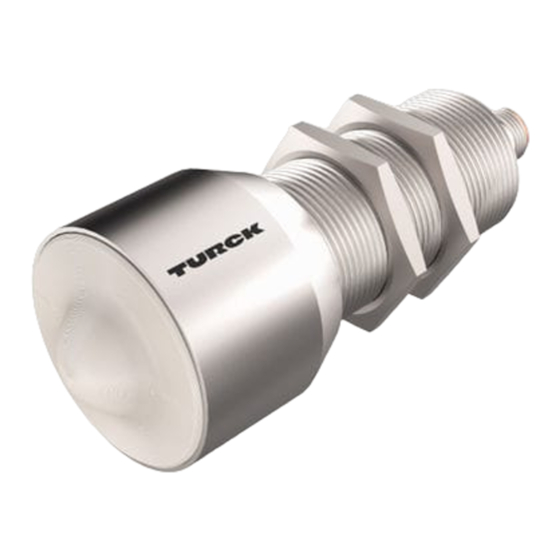

Summary of Contents for Hans Turck DR15S-IOL8X2 Series
- Page 1 Your Global Automation Partner DR15S-…-IOL8X2… Radar Distance Sensors IO-Link Parameters – IO-Link Version 1.1...
- Page 2 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
-
Page 3: Table Of Contents
Contents About This Manual .......................... 5 Target groups........................ 5 Explanation of symbols used .................. 5 Other documents ...................... 5 Feedback about these instructions................ 5 Notes on the Product ........................ 6 Product identification.................... 6 Turck service........................ 6 Software-Supported IO-Link Parameterization................. 7 IO-Link Parameters.......................... - Page 4 Contents Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
-
Page 5: About This Manual
About This Manual This manual describes the parameterization of devices using IO-Link. The manual contains gen- eral information on IO-Link and a list of the available parameters. Target groups These instructions are aimed at qualified personal and must be carefully read by anyone mounting, commissioning, operating, maintaining, dismantling or disposing of the device. -
Page 6: Notes On The Product
CAD files in numerous export formats. The contact details of Turck subsidiaries worldwide can be found on p. [} 21]. Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 7: Software-Supported Io-Link Parameterization
Software-Supported IO-Link Parameterization The ports of the IO-Link master can be configured in IO-Link mode (IOL) or in standard IO mode (SIO). If a port is configured in SIO mode, the IO-Link master behaves at this port like a normal digital input. -
Page 8: Io-Link Parameters
0x4000: Identification and diagnosis, includes 0x8000, 0x8002, 0x8003, 0x8100 0x800D: Switching signal channel 0x8001: Binary data channel 0x8004: Teach channel 0x8007: Teach-in single value 0x8101: Locator Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 9: Process Input Data
Process input data The internal process data is output in 0.1 mm increments. The conversion is carried out according to the unit. Process value in millimeters = ProcessDataIn × 0.1 Process value in meters = ProcessDataIn × 0.001 Process value in inches = ProcessDataIn × 0.003937008 Process value in feet = ProcessDataIn × 0.000328084 Process value in yards = ProcessDataIn × 0.0001093613 The internal process data must be multiplied by a factor of 0.1 for the signal strength. -
Page 10: Standard Parameters
True Read 0.0 String Turck Vendor name Vendor Text 0x11 0 True Read 0.0 String www. Additional turck. manufacturer information Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... - Page 11 Name Index Index Sub- Sub- Subindex Access Byte. Data Type Value Default Description (dec.) (hex.) index index access Bit- length (dec.) (hex.) supported Offset Product Name 18 0x12 0 True Read 0.0 String DR…- Manufacturer's M30E- device …8X2- designation H1141 Product ID 0x13 0 True...
-
Page 12: Parameters
Far point 0x3B 3 False Read 0.5 Boolean False/ False (SP1, TP2) true False Not acquired or not OK True Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... - Page 13 Name Index Index Sub- Sub- Subindex Access Byte. Data Type Value Default Description (dec.) (hex.) index index access length (dec.) (hex.) supported Offset Near point 0x3B 4 False Read 0.6 Boolean False/ False (SP2, TP1) true False Not acquired or not OK True Near point 0x3B 5...
- Page 14 Output 2 0x4B 2 True Read/ UInteger NaN… 10000 Alert limit for write 00000 number of switching cycles Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
- Page 15 Name Index Index Sub- Sub- Subindex Access Byte. Data Type Value Default Description (dec.) (hex.) index index access length (dec.) (hex.) supported Offset Output 2 type 80 0x50 0 True Read/ UInteger 0…1 Type of write output 2 Analog output Switching output Configuration 82...
- Page 16 Read 0.0 UInteger NaN… Largest distance measured distance Smallest 0x6A 0 True Read 0.0 UInteger NaN… Smallest distance measured distance Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
- Page 17 Name Index Index Sub- Sub- Subindex Access Byte. Data Type Value Default Description (dec.) (hex.) index index access length (dec.) (hex.) supported Offset Damping 0x70 0 True Read/ UInteger 0…800 0 Risetime and (analog) write falltime (0 %/90 %) of analog out- put signal (suppress os- cillation in...
- Page 18 Lower Value 16512 0x False Read 0.0 Integer 3500 3500 Measured Range 4080 value ÷ 10000 = Value in meters Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
- Page 19 Name Index Index Sub- Sub- Subindex Access Byte. Data Type Value Default Description (dec.) (hex.) index index access length (dec.) (hex.) supported Offset Upper Value 16512 0x False Read 4.0 Integer 150000 150000 Measured Range 4080 value ÷ 10000 = Value in meters Unitcode for 16512 0x...
-
Page 20: Events
Test error 2 36013 Warning Testwarning 36016 Warning Operating hours limit was reached 36017 Warning Switching counter limit was reached Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com... -
Page 21: Turck Subsidiaries - Contact Information
Turck Subsidiaries - Contact Information Germany Hans Turck GmbH & Co. KG Witzlebenstraße 7, 45472 Mülheim an der Ruhr www.turck.de Turck Australia Pty Ltd Australia Building 4, 19-25 Duerdin Street, Notting Hill, 3168 Victoria www.turck.com.au Belgium TURCK MULTIPROX Lion d'Orweg 12, B-9300 Aalst www.multiprox.be... - Page 22 Árpád fejedelem útja 26-28., Óbuda Gate, 2. em., H-1023 Budapest www.turck.hu Turck Inc. 3000 Campus Drive, USA-MN 55441 Minneapolis www.turck.us Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com...
- Page 23 Over 30 subsidiaries and over 60 representations worldwide! 100033485 | 2021/10 100033485 www.turck.com...
