assembly instructions

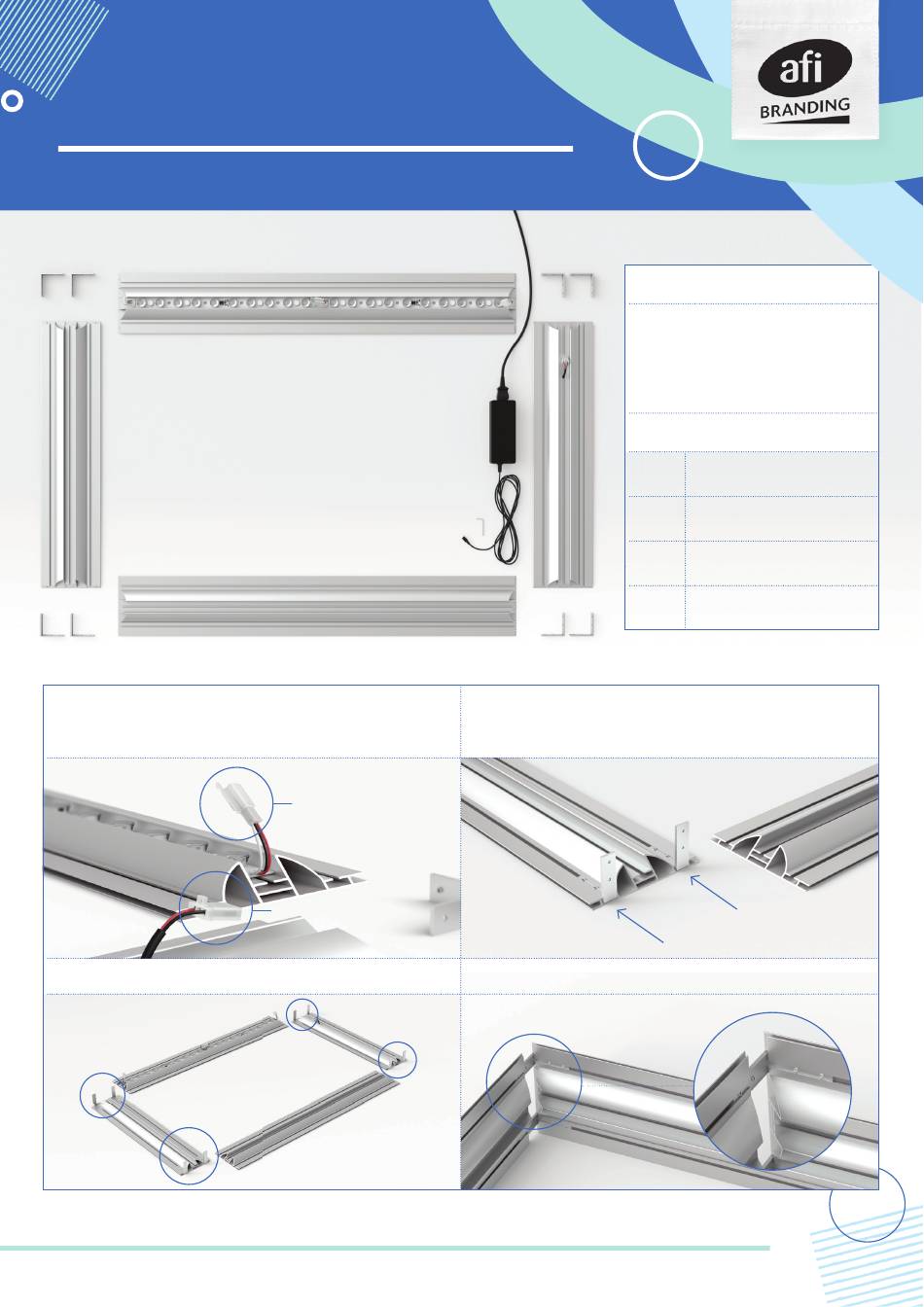

ILS140 - illuminated double-sided ReFrame®
2
Ensure the LED lighting strip 'Male' and external 'Female'
plugs are on the same corner so they will reach when
the frames are connected.
4
Repeat step 3 across all corners of frame
www.afibranding.com.au
Male
Female
|
1300 652 514
|
33 Lakewood Blvd, Carrum Downs, Vic, 3201
1
1
Lay out the ReFrame®
components on a flat
surface and ensure you have
everything required before
you start the assembly.
CHECKLIST
8x
4x
1x
1x
3
Insert corner brackets into the tracks of the top and
bottom lengths of the frame
(Note: do not tighten any of the screws until step 8)
5
Slide top and side length together
Corner Brackets
ReFrame® Lengths
ReFrame® Power
Adapter
Allen Key
Advertisement
Table of Contents
Summary of Contents for AFI Branding ReFrame ILS140
- Page 1 assembly instructions ILS140 - illuminated double-sided ReFrame® Lay out the ReFrame® components on a flat surface and ensure you have everything required before you start the assembly. CHECKLIST Corner Brackets ReFrame® Lengths ReFrame® Power Adapter Allen Key Ensure the LED lighting strip ‘Male’ and external ‘Female’ Insert corner brackets into the tracks of the top and plugs are on the same corner so they will reach when bottom lengths of the frame...
- Page 2 (not shown on this fact sheet), accessories, or has bends/curves and you are unsure how to proceed with assembly, please contact the team at AFI Branding on 1300 652 514 and we will guide you through the assembly process. Developed by AFI Branding www.afibranding.com.au...
