Summary of Contents for LINEAR LEDS LTL.PL363Z
- Page 1 36x3W LED PROJECTOR LTL.PL363Z Operation manual Linear Technologie • 11 rue du Puits Rochefort • 42 100 Saint-Etienne V.2017 Tél: +33 (0)4 77 81 49 49 • Fax: +33 (0)4 77 81 49 40 • www.lineartech.fr...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. About this product Page 3 2. Safety instructions Page 3 3. Dimensions Page 3 4. DMX control Page 4 5. Control panel and menu Page 4 6. Operation instructions Page 5 7. Master / slave mode Page 5 8. -
Page 3: About This Product

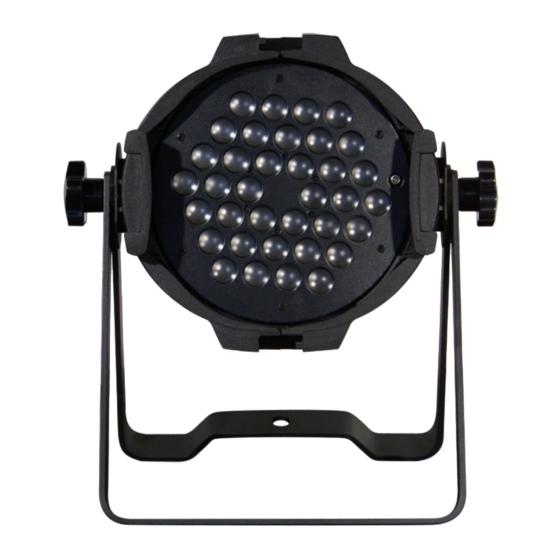

1. ABOUT THIS PRODUCT This LED projectorPL363Z is equiped with red, green and blue LED, low consuption. Each color can be independently adjusted. It ambeds dimmer functions, strobe, zoom, ... 2. SAFETY INSTRUCTIONS • Observe the rated voltage of the device •... -
Page 4: Dmx Control
4. DMX CONTROL CHANNEL VALUE FUNCTION 0 - 255 Dimmer for all color 0 - 255 Red gradation 0 - 100% 0 - 255 Green gradation 0 - 100% 0 - 255 Blue gradation 0 - 100% 0 - 5 Gradation 6 - 125 Strobe mode... -
Page 5: Signal Cable Connection
8. SIGNAL CABLE CONNECTION Connect the male plug to the female plug as below : Note : To avoid transmission errors and signal interference, put a 120 Ω resistor (1 / 4W) as shown below, end of the line DMX : 3-pin and 5-pin : If the DMX512 controller is 5-pin, use a signal cable which transfers the 5-pin in 3-pin. -
Page 6: 10. Specifications
10. SPECIFICATIONS • 220 - 240V • Power supply : 120W maxi • 3W LED • 36 red LED 1W, 36 green LED 1W, 36 blue LED 1W • DMX512, auto-run • Stand alone, master / slave • 7 DMX channels •... - Page 7 Linear Technologie • 11 rue du Puits Rochefort • 42 100 Saint-Etienne Tél: +33 (0)4 77 81 49 49 • Fax: +33 (0)4 77 81 49 40 • www.lineartech.fr...
