Instruction Manual of PR968X Model Controller
Controller for massage bathtub
PR9681 PR9681M PR9683 PR9683M
Before using, please read it carefully.
Safety
Danger symbol：This icon reminds the users that this product has
dangerous voltage!
Warning symbol：This icon reminds the users that this product is
enclosed with important operating and maintenance instruction!
【Warning】
In order to prevent fire or electric shock accident, do not expose the controller to
1.
the rain or humid environment. There are dangerous high-tension fittings
inside the controller, therefore do not open the cover. Entrust the repairing
work only to the qualified professional repairing personnel when repairing is
required.
Without the clear approval from the controller manufacturer or its authorized
2.
units, any change or alternation to this controller might bring various
inconveniences to the users when in use.
【Attention】
1. Please read this operating instruction manual thoroughly, so as to allow you
to master the correct use of this controller.
2. After reading this operating instruction manual, please keep it safe and for
- １ -
Advertisement
Summary of Contents for Sparmax PR968 Series
- Page 1 Instruction Manual of PR968X Model Controller Controller for massage bathtub PR9681 PR9681M PR9683 PR9683M Before using, please read it carefully. Safety Danger symbol：This icon reminds the users that this product has dangerous voltage! Warning symbol：This icon reminds the users that this product is enclosed with important operating and maintenance instruction! 【Warning】...
- Page 2 Instruction Manual of PR968X Model Controller reference in the future. If repairing is required, please contact the local dealer or the technical service center of our company. 【Notice for use】 1. In case this controller is not used for a long time, please remove the power plug from the socket.
- Page 3 Instruction Manual of PR968X Model Controller I、 Brief Introduction General Description of Functions Model PR9681 PR9681M PR9683 PR9683M Functions LOCK √ √ √ √ PUMP √ √ √ √ BLOWER √ √ √ √ Thermostatic Heating √ √ TEMPRETURE SENSOR √...
- Page 4 Operation instruction manual of model：PR968x Schematic Diagram of control panel Power switch Choose upward Function confirm Choose downward Function switch Schematic Diagram of Remote Power switch Volume + Volume - Frequency - Frequency + Station storage / select FM Radio AUDIO Blower Ozone...
- Page 5 Operation instruction manual of model：PR968x Power switch Volume - Volume + Adjust - Adjust + Frequency storage / select Audio FM radio Function switch Blower Theomostatic heating Ozone Pump Lamp FM Radio Power switch Pump Lamp Frequency + Frequency - Station storage / select Volume - Volume +...
- Page 6 Operation instruction manual of model：PR968x II、 Operation of Control Panel 1 The panel is with inducing function, the duration of the touch is about 0.5 s. When any function button works, there is a sound of “di…” 2 Power Switch Press “...
- Page 7 Operation instruction manual of model：PR968x automatically. 6 Blower 6.1 When the system is on， press “ 、 ” to choose the BLOWER function，when cursor select “Blower”，press“ ” to turn on the blower，Blower icon on LCD blinks, press“ ” again to turn off the blower，blower icon stops blink.
- Page 8 Operation instruction manual of model：PR968x 8.2 When the system is on，press “ ” to choose the HEAT 、 function，when cursor select “Heat”，press“ ” to turn on the heater： 8.2.1 2 Thermostatic heating function starts or stops according to the temperature（the temperature that the system defaults is C）...
- Page 9 Operation instruction manual of model：PR968x 9 FM digital turnning radio 9.1 The FM frequency scope is 87.5MHz—108.0MHz. 9.2 When the system is on， press“ 、 ” till cursor select “Music”， press“ ” to turn on the FM radio, LCD displays the present frequency and“FM”；then press “...
- Page 10 Operation instruction manual of model：PR968x 108.0MHz. 9.4 When the FM radio is on，press“ ” till “VOL” on LCD blinks, then press “ ” to increase the volume，press“ ”to decrease the vollume.The adjust range is 0-20. 9.5 Station storage/select 9.5.1 Station storage：when select the station frequency to be stored, press “...
- Page 11 Operation instruction manual of model：PR968x press “ ” to increase the volume，press“ ”to decrease the vollume.The adjust range is 0-20. 11 Play MP3 program 11.1 When the system is on， press“ 、 ” till cursor select “Music”， press“ ”till LCD displays “MP3”, MP3 function is turned on； then press“...
-
Page 12: Installation Drawing
Operation instruction manual of model：PR968x 3.2 Station select：when FM function is on，press “ ” to select the stored frequency(1-18,18 positions in total), LCD will show the position No. and “CH”. Installation drawing - １２ -... - Page 13 Operation instruction manual of model：PR968x - １３ -...
- Page 14 Operation instruction manual of model：PR968x - １４ -...
- Page 15 Operation instruction manual of model：PR968x IV、 Attention In order to guarantee the products function, prolong its lifetime and ensure the safety during using, please read the following items carefully before using： 1. The end user should carry on the load installation strictly according to the wiring diagram and parameters.
- Page 16 Operation instruction manual of model：PR968x short-circuit. 8. After using, please cut off the power to avoid aging of the device. 9. The installation of the controller should be carried out by qualified personal according to the installation manual. 10. Do not try to repair of the modifier parts of the controller, and the high-voltage might cause danger.
- Page 17 Operation instruction manual of model：PR968x carefully before using: 1. The end user should carry on the load installation strictly according to the wiring diagram and parameters. 2. Please check strictly the wire of power box and control box. After confirming every part is OK, and then you can start the shower device.
- Page 18 Operation instruction manual of model：PR968x maintenance and any results will be bore by the customer. 2) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 19 Operation instruction manual of model：PR968x - １９ -...
Need help?
Do you have a question about the PR968 Series and is the answer not in the manual?
Questions and answers

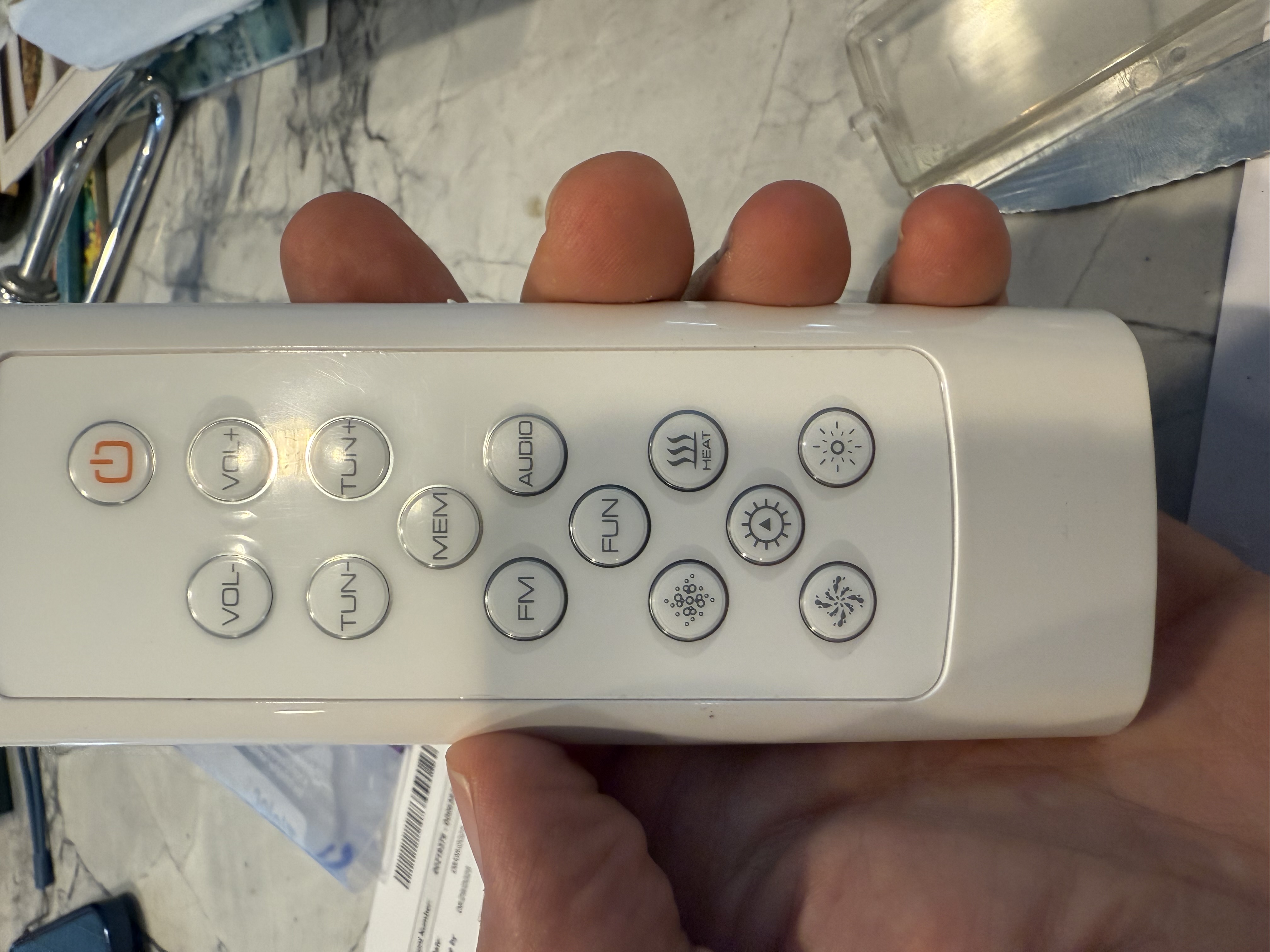

I need a new circuit board for my remote. The battery acid destroyed it. Or I need to purchase a new remote. How can I go about that
