CoachComm Cobalt Plus Quick Start Manual

GAME DAY GUIDE - BASEBALL

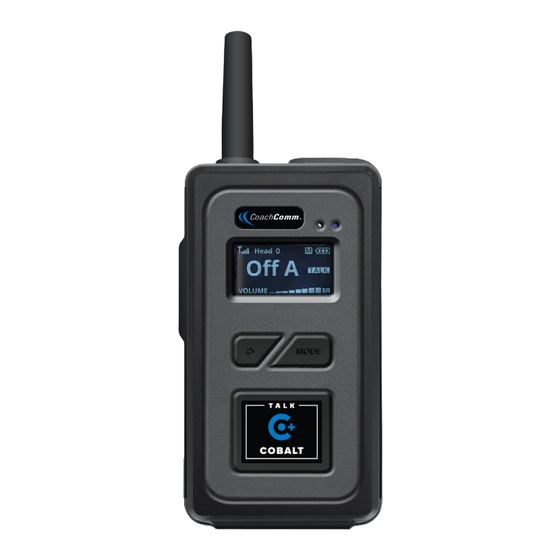

BELTPACK OVERVIEW

Antenna
Volume +/– Buttons
Power Button
USB Charger
Connection
* See the Operating Manual for more about operation with the Cobalt PLUS Player Receiver Pack.
User Role
Signal Strength
Active Channel
Active Player Channels
Volume Level

Specifications

Battery Life: 12 hours
Charge Time: 3.5 hours from dead with USB cable. 6.5 hours from dead with
drop-in charger (sold separately). When charging, LED is red.
When charging is complete, LED is off.
LED Modes: Blue (Double Blink) = Logged In
Blue (Single Blink) = Logged Out
Channel Button
(and press and hold for Player
Channel Talk when applicable*)
LEDs
OLED Screen
Mode Button
Talk Button
Headset Connection
Master Pack Indicator
Battery
Home/Away Indicator
Talk Indicator
Lock Indicator
Mode Indicator
1

SETUP AND OPERATION

Connect microphone and eartube or a headset to the beltpack.
Be sure to fully insert the connector.
Power on the beltpack.
Hold down the power button for 3 seconds, until the screen turns on.
On the Master beltpack, select Home if you
are the home team or Away if you are the
visiting team.
Use the +/– buttons to toggle between the options.
(Selected option will blink.) Press and hold the mode
button to save your selection.
This setting provides proper wireless coordination for your other beltpacks and
between your team and another CoachComm Cobalt or Cobalt PLUS team.
Adjust beltpack volume as needed
with the +/– buttons.
Maintain optimal line of sight with other beltpacks.
The "Head 0" beltpack is the Master (identified with
"M" on the OLED) and is required for all beltpacks to
work. For best system performance, use the Master
in the dugout near other beltpacks.
