Summary of Contents for SPROLINK NeoLIVE R2
- Page 1 User Manual www.sprolink.com...
-
Page 2: Quick Start

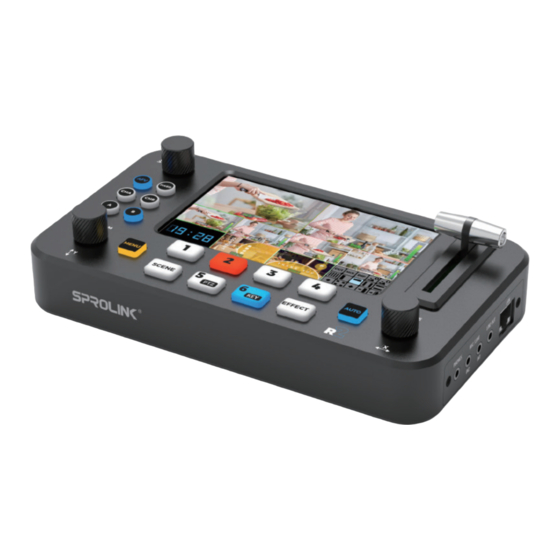

Neolive R2 is a professional live streaming switcher. It can mix video & audio source and feed to your computer via USB3.0 port. When doing live streaming, Neolive R2 will be detected as high quality webcam in both MJPEG and YUY2 format in 60 frame rate. Neolive R2 has built-in 5.5 inch screen for input &... -
Page 3: Connection Diagram
USB3.0 STREAMING USB2.0 Support 2 channel external audio. Connect this port to amp or Connect this to your PC with USB3.0 port.Neolive R2 will be Still image upload Connect this port to mic or speaker. This audio output detected by PC as high quality webcam and microphone.You System update external audio mixer.Choose mic in... -
Page 4: Fixed Mode
Video Operations 1. Push [SCENE] button and rotate knob to choose a proper default layout for your content. *If there are no proper default layout, push [A] / [B] button to create layers on PST and do customized configuration. Button lit blue means Layer ON. - Page 5 Advanced Features Operation 1. Fast Switching Mode/ T-Bar Switching Mode Use MENU+SCENE button to enable Fast Switching Mode/ T-Bar Mode. Fast Swtiching Mode: The transisiton will enabled every time the input channel switched. T-Bar Switching Mode: The transition will enabled only when AUTO button pushed or T-Bar moved. 2.
