Summary of Contents for MyGate PTP45 Series

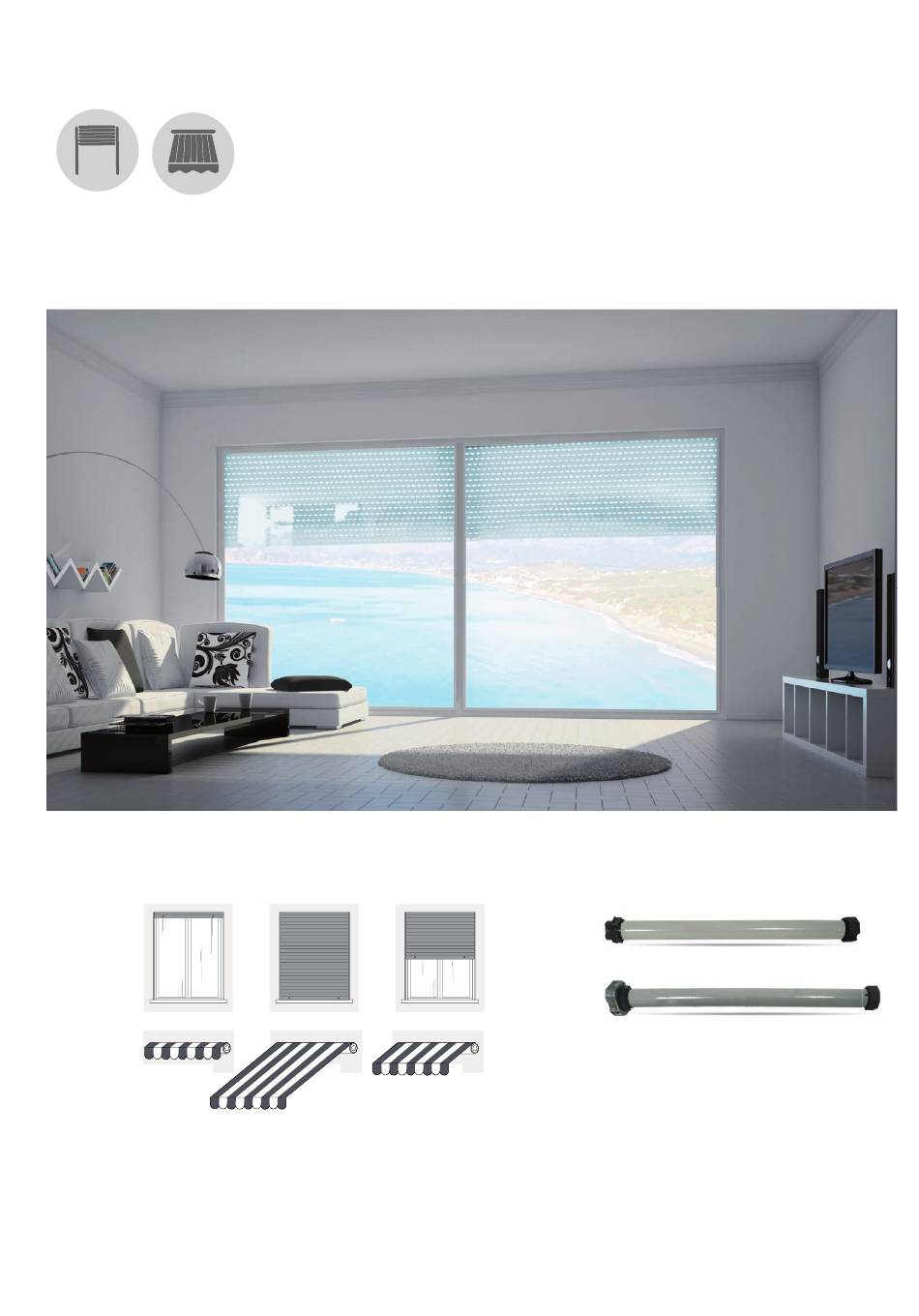

- Page 1 PTP45 Automation for blinds and awnings Installation manual PTP45 20 - PTP45 30 - PTP45 50 PTP45 50M rev01_21...
-
Page 2: Table Of Contents
Index SAFETY INSTRUCTIONS ............................p........................p. DESCRIPTION AND INTENDED USE Technical data ........................p........................p. Selection guide Kit content ........................p........................p. Dimensions INSTALLATION ........................p. Wiring ........................p. Limit switch setting ........................p. 3.2.1 Limit switch in closing ........................ -
Page 3: Safety Instructions
1. 1. SAFETY INSTRUCTIONS WARNING This manual contains important information concerning personal safety: children aged 8 or more and/or people with reduced physical, sensory or psychic abilities are allowed to use the automation if under supervision or duly instructed on possible risks and danger. Children are forbidden to play with the automation. -
Page 4: Description And Intended Use
2. DESCRIPTION AND INTENDED USE The PTP45 range is designed to automate blinds and awnings. 2.1 TECHNICAL FEATURES PTP4520 PTP4530 PTP4550 PTP4550M Thrust Motor Speed Motor Power Current 0,68 0,95 1,06 1,06 Weight 2,30 2,35 2,40 3,30 Length Noise level LpA ≤... -
Page 5: Kit Content
2.3 KIT CONTENT PTP 45 (without emergency release) n°1 Tubular motor n°1 Limit switch adjuster wrench n°1 Split pin n°1 Wall fixing support PTP 45 M (with emergency release) n°1 Tubular motor n°1 Limit switch adjuster wrench n°1 Wall fixing support n°1 Split pin n°1... -
Page 6: Installation
3. INSTALLATION Before installing make sure the power supply is OFF. If you need to replace an exis�ng system, remove all devices for manual opera�on. Make sure the command keys are posi�oned where the system can be visible during opera�on and at a minimum ground height of 1,5m. - Page 7 3 - Measure the distance between the two supports (L). Fit the 60 mm octagonal tubular in for the whole length �ll covering the locking ring of the limit switch (Picture C). Picture B Picture C Picture D 4- The length of the octagonal tubular must be such to get the total length (L) as shown in the below picture, keeping a clearance of 2-3 mm.
-
Page 8: Limit Switch Setting
A�en�on! During manual opera�on we recommend to keep the limit switch screws in downward posi�on. 3.1 WIRING Wire the system according to the below diagram: To be up to safety standards we recommend to fit a power cut device, keeping a minimum distance of 3 mm between the contacts. -
Page 9: Limit Switch In Opening
3.2.2 LIMIT SWITCH IN OPENING Give an opening command. Check the store opera�on and make the according adjustments if necessary. To set the limit switch, plug the provided key into the according fixing points. If you wish to increase the run of the store/awning, turn to “+”, while if you wish to decrease it turn to “-“. -
Page 10: Maintenance
5. MAINTENANCE Func�onal checks must be performed once every 6 months, including: checking the state of lubrica�on and �ghtness of the anchoring screws on the operator as well as the good opera�on of all safety devices. 6. DISPOSAL DO NOT DISPOSE OF IN NATURE! Some components may contain hazardous waste. -
Page 11: Compliance Declaration
CE COMPLIANCE DECLARATION Manufacturer: PROTECO S.r.l. Adress: Via Neive, 77 – 12050 Castagnito (CN) – ITALIA Declares that: Product type: Electromechanical tubular motor PTP45 for blinds, awnings and according Models: accessories corresponding to PTP45 20, PTP45 30, PTP45 50, PTP45 50M It complies with the essential requirements of the EU Directives: 2006/95/CE Low Voltage Directive...
