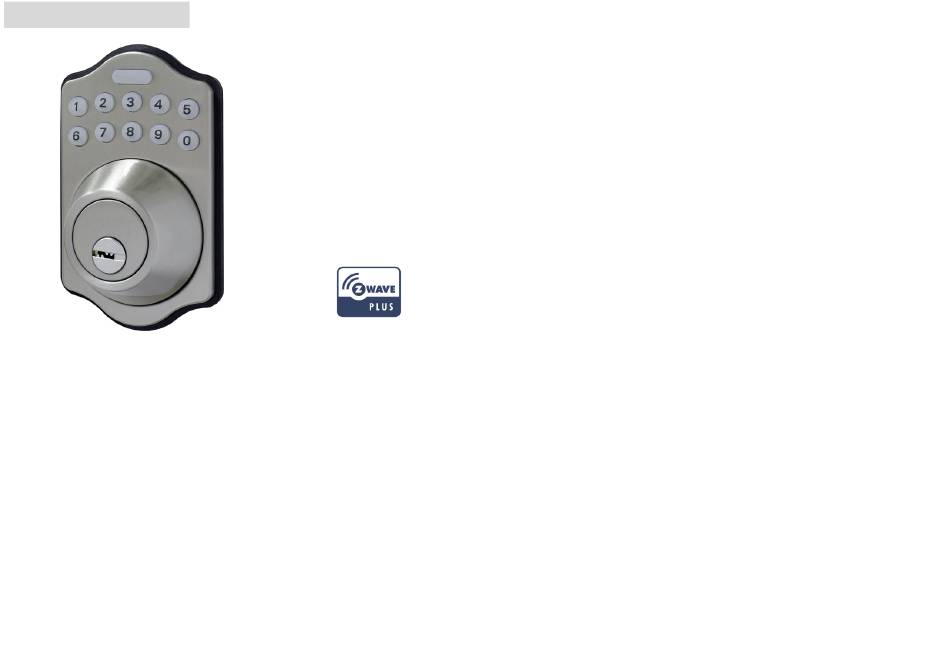

Door Lock PSA01
I. Specification/Function
1. Battery
1-1 Four AA (1.5V) Alkaline batteries.
2. Low Battery
2-1 The batteries should be changed immediately once you see the LED
flash red and hear constant beeps for about 10 seconds after
pressing the programming button.
2-2 All settings are retained in the memory and will not be affected
even if the battery is completely dead.
2-3 The lock can still be operated by the key override even if there is
no power.
3. LED Indicator
3-1 LED flashes green once to indicate successful operation.
3-2 LED flashes green twice after successful programing.
3-3 LED flashes red 3 times when there is an operation error.
3-4 LED flashes red 5 times after incorrect user codes have been
entered 5 times in a row, operation will stop for 45 seconds (Refer
to 17).
3-5 LED flashes orange 3 times when system has been restored to
default setting.
3-6 LED flashes orange slowly while in programming mode.
4. Audio Indicator
4-1 1 beep sound indicates a successful operation.
4-2 2 long beeps indicates a successful programming.
4-3 3 beeps indicate an operation error.
4-4 3 long beeps indicate that system has been restored to default
setting.
4-5 5 beeps indicates lockout mode after 5 incorrect user code entries.
Operation will stop for 45 seconds. (Refer to 17)
4-6 10 rapid beeps indicate the battery power is low.
5. Programming Code
5-1 The preset Programming Code is 0000. Please delete and create
your own personal code when programming for the first time.
5-2 Only one Programming Code is allowed.
5-3 Programming Code is only for programming the lock; you can't
unlock the door by entering the Programming Code.
5-4 Programming Code must be 4-10 digits in length.
5-5 Programming Code can be changed anytime if needed.
1
