Schniewindt 93/F53-63 Instruction Manual

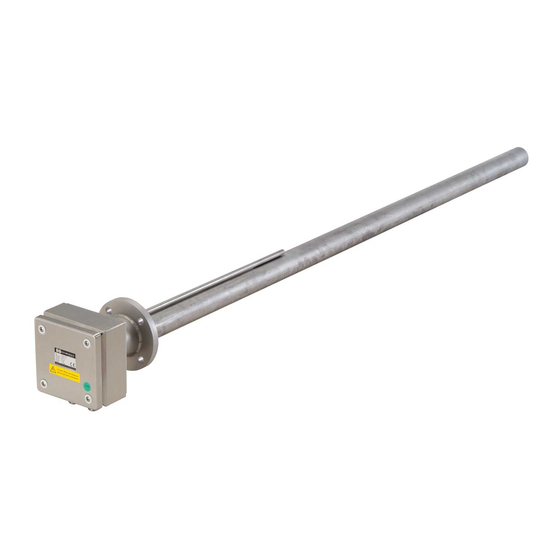

Cartridge type heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Created for the applicable standards in Germany
Only for use in a commercial environment!
Type
Output
Output tolerant
Voltage
Schniewindt GmbH & Co. KG
Schöntaler Weg 46
58809 Neuenrade, Germany
Phone:
+49 2392 692-0
Fax:
+49 2392 692-11
info@schniewindt.de
www.schniewindt.de
Translation
Instruction manual
Article-number: 20153106330140
Cartridge type heater
: 93/F53-63
(W)
: 1,000
(%)
: +5/-10
: 400V 2~
Page 1 of 10
en
Create date 22.02.2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 93/F53-63 and is the answer not in the manual?

Questions and answers

Related Manuals for Schniewindt 93/F53-63

Summary of Contents for Schniewindt 93/F53-63

  • Page 1 Cartridge type heater Type : 93/F53-63 Output : 1,000 Output tolerant : +5/-10 Voltage : 400V 2~ Schniewindt GmbH & Co. KG Schöntaler Weg 46 58809 Neuenrade, Germany Phone: +49 2392 692-0 Fax: +49 2392 692-11 info@schniewindt.de www.schniewindt.de Page 1 of 10...

  • Page 2: Table Of Contents

    Table of Contents Information on the product ..............3 Intended use ..................3 Safety ..................... 4 Connection and performance data ............5 Mounting instructions ................6 Mounting ....................6 Installation ....................7 Initial start-up ..................8 Repair of failures ..................8 Repair ....................

  • Page 3: Information On The Product

    Information on the product Information on the product Designation : Cartridge type heater Type : 93/F53–63 Min/max Temperature  At the connection head (°C) : -20/+40  In the connection area (°C) : -10/+80 Protection category : IP 65 Mounting direction : horizontal Drawing number : 233.94.177.0...

  • Page 4: Safety

    Safety Safety The instructions manual include important basic indications, which are to be observed during installation and operating. The instructions manual must be read and understood before installation and commissioning. Keep the operating instructions for future reference. Pass the manual to each subsequent owner and operator. Do not make any modifications to the product.

  • Page 5: Connection And Performance Data

    Connection and performance data Connection and performance data Electric data Power : 1,000 Voltage : 400 V 2~ Cable gland : M20x1.5 Ambient temperature -20°C to +100°C Heating element Type : cartridge with ceramic heating insert Immersion length (mm) : 630 Thereof unheated length (mm) : 50...

  • Page 6: Mounting Instructions

    Mounting instructions Mounting instructions During operation, the environment temperature at the connection head must not fall below -20°C and the environment temperature of +40°C must not be exceeded. Should the environment temperature deviate from these values, the device must be switched off.

  • Page 7: Installation

    Installation Installation The work described in the following must be executed by an electrical engineer only. To protect the device from damage, we recommend a fault current monitoring device shall be provided. TT- and TN systems: A fault current protection device should be installed. The calculation value of the fault current must be set during commissioning.

  • Page 8: Initial Start-Up

    Initial start-up Initial start-up Only turn on if the heated length is completely covered by the medium. It is advisable provided an on-site level monitoring. The connection head should not be isolated, otherwise the connection area can be overheated. Max. permissible temperature at the connection area: 80°C. In a closed system, a pressure relief valve must be installed on site.

  • Page 9: Repair

    Repair Repair Before repairs only hold consultation with the manufacturer. Trained personnel in compliance with common regulations do repairs Use only by manufacturer authorized spare parts. Improper repairs can result in personal injury and property damage Maintenance and servicing Execute an annual visual check of the device. We recommend the checking of these tests and controls listed below at short intervals initially.

  • Page 10: 13 Storage

    Storage 13 Storage The store room must be dry and free of dust. Make sure that the storing temperatures are between -40°C and +40°C. Before storing, be sure that there is no humidity penetrated inside the connection area during transport or interim storing.
