THE BEST PROTECTION FOR YOUR JOURNEY.™
equalizerhitch.com

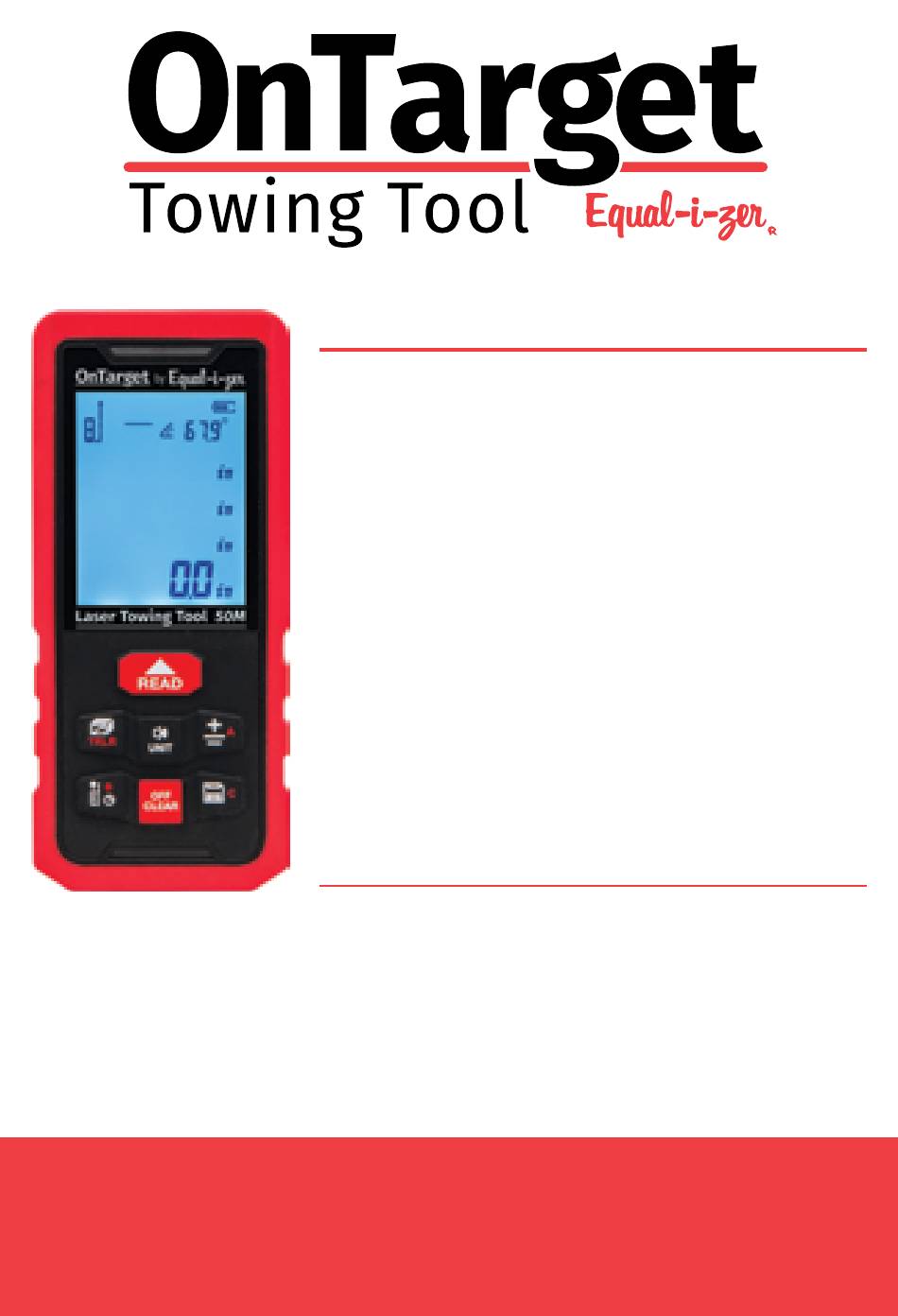

User's Manual

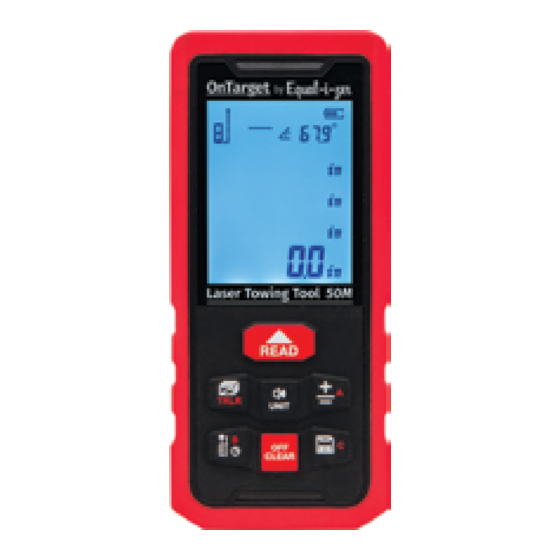

The OnTarget™ Towing Tool from
Equal-i-zer is the simplest way to
check your weight distribution.
Using laser measuring,
the OnTarget can take the
measurements at the front wheel
well and calculate the amount
of weight distribution currently
being achieved.
Part Number
95-01-4323
353 South 1100 West,
Provo, Utah 84601
by
Model
50m
•
800-478-5578
1
Advertisement
Summary of Contents for EQUAL‑I‑ZER OnTarget 50m
- Page 1 User’s Manual The OnTarget™ Towing Tool from Equal-i-zer is the simplest way to check your weight distribution. Using laser measuring, the OnTarget can take the measurements at the front wheel well and calculate the amount of weight distribution currently being achieved. Part Number Model 95-01-4323...
- Page 2 Warning ÁFailure to follow all safety warnings may result in severe injury or death. · Always load the trailer correctly. Follow the trailer and tow vehicle manufacturers’ recommendations for placement and quantity of cargo. · Always turn the laser tool off when not in use or left unattended.
- Page 3 could be projected into your eyes or into the eyes of others. · Never stare directly at the laser beam. · Never transfer your hitch to a different tow vehicle or trailer without adjusting the hitch for proper setup and weight distribution. ·...
- Page 4 Instructions 1. Park the tow vehicle and trailer on flat, level ground and uncouple the trailer from the tow vehicle. 2. Turn on the OnTarget by pressing the button. The default setting is Trailer Setup Mode. (If you have exited Trailer Setup Mode and would like to return, hold the TRLR button for three seconds and “EQ”...
- Page 5 7. Couple the trailer and tow vehicle together. The full trailer tongue weight should be resting on the hitch. 8. Perform the second measurement in the same place as the first measurement, and press to take measurement “B”. 9. The measurement will be recorded, and you will see two numbers on the right-hand side of the screen.
-
Page 6: Limited Two-Year Warranty
Limited Two-Year Warranty Limited Two-Year Warranty: Progress Mfg. Inc. warrants the OnTarget™ Towing Tool against latent defects in materials and workmanship under normal use and service, ordinary wear and tear is excepted, to the original owner for a period of 2 years from the first date of purchase at retail up to the value of its original purchase price. -
Page 7: Memory Function
Pythagorean Measurement: Yes Area and Volume Measurement: Yes Batteries Included: Yes Batteries Needed: 1.5V 3xAAA Battery Type: Alkaline Color: Red and Black Carrying Sleeve: Yes Range of Laser: 50 Meters or 164 Feet Max Memory Storage: 99 Measurements Memory Function Hold the SAVE BUTTON for three seconds to begin measuring in Memory mode. - Page 8 Tips Info Cause Solution Message Out of distance Use the device measurement within the range range Err1 Signal is too Choose a stronger weak reflection surface Err2 Signal is too Choose a weaker strong reflection surface Err3 Low battery Change the batteries voltage Err4 The device is...
-
Page 9: Maintenance
Info Cause Solution Message Loss of Device shutting Use the memory mea- save feature or press surement “READ” to wake the memory device Wrong unit of Press the “UNIT measurement BUTTON” Maintenance: The OnTarget should not be stored in high temperatures or a strong humidity environment for long periods of time. - Page 10 Other Measuring Capabilities To measure Area: 1. Press the once and will show on the screen. 2. One side of the rectangle will blink. 3. Press once to measure the length. 4. Press again to measure the width. To measure Volume: 1.
- Page 11 2. Press measure the angle or “Measurement A” first or the hypotenuse. 3. Press to take “Measurement B” or the horizonal distance. 4. The OnTarget will calculate the vertical height. To find the length of the hypotenuse: 5. Press the five times and will show on the screen and begin to blink.
- Page 12 P 1mW λ 635nm BATT ERY : 3 x 1.5V AAA CLASS II LASER PRODUCT To reduce the risk of injury user must read and understand instruction manual . equalizerhitch.com/ontarget 800-478-5578 353 South 1100 West, Provo, Utah 84601...
