ASSEMBLY INSTRUCTIONS
GUIDE D'ASSEMBLAGE

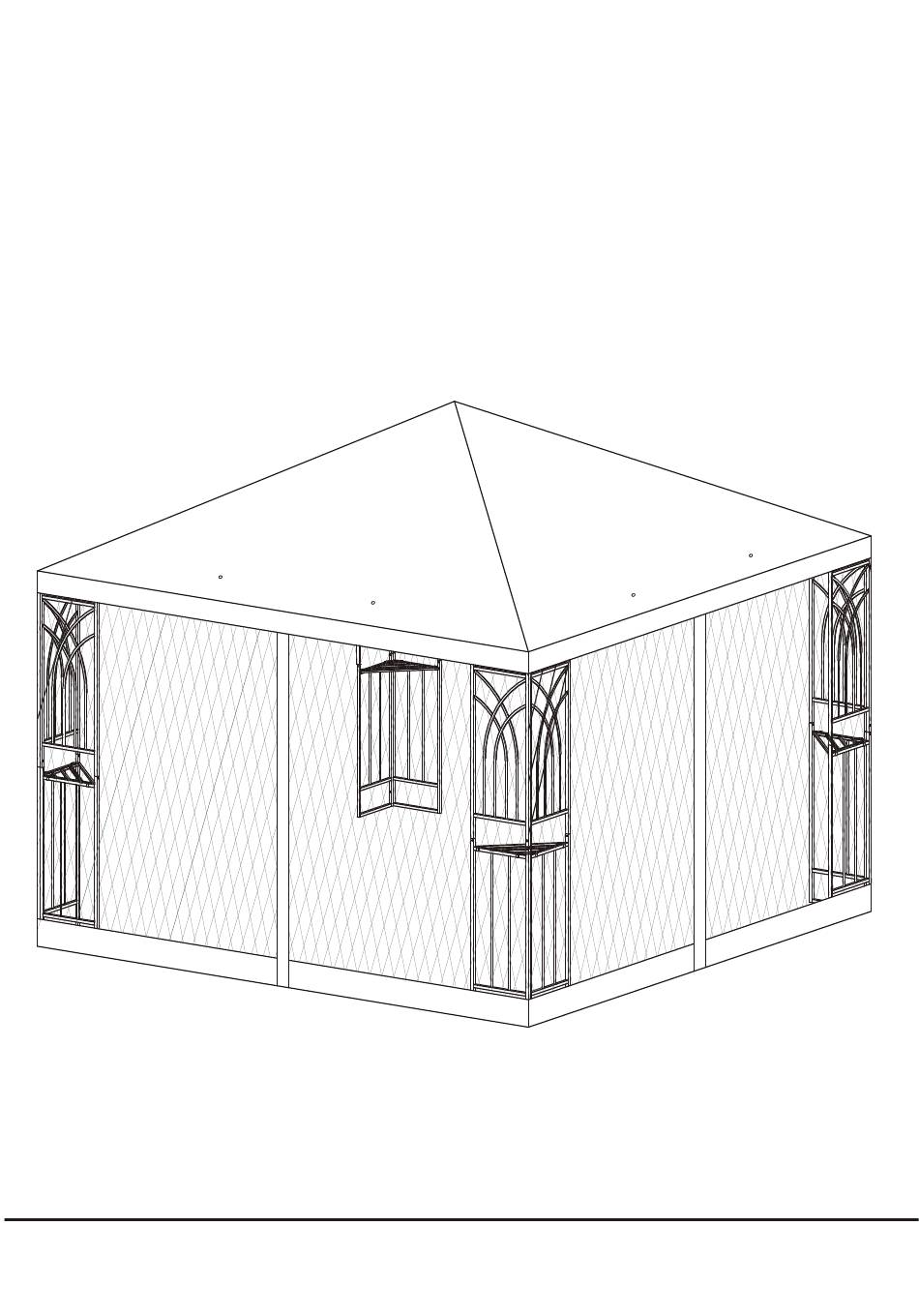

10'X10' SYMPHONY III GAZEBO
10 PI X 10 PI SYMPHONY III
PAVILLON DE JARDIN
MODEL / MODÈLE : 22-YH-20S067HD
SKU / N° DE RÉF: 22-71590067
MADE IN CHINA / FABRIQUÉ EN CHINE
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-888-775-2225, 9 a.m. - 5 p.m., EST, Monday - Friday.
WWW.APEXGARDEN.US / WWW.APEXGARDEN.CA
ATTACH YOUR RECEIPT HERE
Serial Number ____________ Purchase Date ____________
V.202201

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 22-YH-20S067HD and is the answer not in the manual?

Questions and answers

Related Manuals for Apex Garden 22-YH-20S067HD

Summary of Contents for Apex Garden 22-YH-20S067HD

  • Page 1 10’X10’ SYMPHONY III GAZEBO 10 PI X 10 PI SYMPHONY III PAVILLON DE JARDIN MODEL / MODÈLE : 22-YH-20S067HD SKU / N° DE RÉF: 22-71590067 MADE IN CHINA / FABRIQUÉ EN CHINE Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-888-775-2225, 9 a.m.

  • Page 2: Important Safety Instruc Ons

    Important Safety Instruc ons WARNING! To reduce the risk of serious injury or damage to equipment, read all following safety instruc ons before assembling and using the gazebo. Failure to follow these warnings may result in serious injury or death. •...
  • Page 3 ves de sécurité importantes AVERTISSEMENT! A n de réduire le risque de blessures graves ou de dommages à l’équipement, lire toutes les instruc ons ci-dessous avant d’assembler et d’u liser l’abri-soleil. Négliger de suivre ces aver ssements peut provoquer des blessures graves ou la mort. •...

  • Page 5: Part List

    PART LIST: LISTE DES PIÈCES : Part Drawing Pièces Qté Left Up Corner Panel Panneau de coin supérieur gauche Left Down Corner Panel Panneau de coin inférieur gauche Right Up Corner Panel Panneau de coin supérieur droit Right Down Corner Panel Panneau de coin inférieur droit Side Beam 1039mmL Poteau Latéral...
  • Page 6 Step 1 · Insert the Left Up Corner Panel(1) to Left Down Corner Panel(2). · Insert the Right Up Corner Panel(3) to Right Down Corner Panel(4). Be careful not to pinch fingers! · Assemble the Left Corner Panel(1&2) to Right Corner Panel(3&4) by using Bolt(21) & Nut(22). Étape 1 ·...
  • Page 7 Step 2 · Insert two Side Beams(5) to Middle Beam(6). · Assemble the Beam(5&6&5) to Corner Panel(1&2 and 3&4) by using Bolt(21) and Nut(22). Étape 2 Insérer les deux poteaux latéraux (5) dans le poteau central (6) · Assembler la poutre (5 et 6 et 5) au panneau d'angle (1 et 2 et 3 et 4) en utilisant le boulon (21) et l'écrou (22) .
  • Page 8 Step 3 Insert Top Up Tube(7) to Top Middle Tube(8), then insert Top Middle Tube(8) to Top Down Tube(9). Insert Middle Down Tube(11) to Middle Up Tube(10). Insert Top Tube (7&8&9) and Middle Tube(10&11) to Roof Connector(12). Insert Top Down Tube(9) to Left Up Corner Panel(1). Assemble Middle Down Tube(11) to Middle Beam(6) by using Bolt(20) and Nut(22).
  • Page 9 Step 4 Put on Canopy(17), fix the Canopy to the frame by using velcro. Put the 4 Planter Holders(13) on the Middle between two Corner Panels. Étape 4 Placer les 4 porte-pots (13) au milieu entre deux panneaux d’angle.
  • Page 10 Step 5 Use the Stake kit(14&15) t gazebo on the ground. ATTENTION: Keep the side screen outside and the mosquito net inside during assembly. Close the zippers on the mosquito net before hanging it. If it needs to be removed, make sure the zippers are closed rst. Étape 5 Attacher la moustiquaire ATTENTION:...

  • Page 11: Warranty

    WARRANTY This warranty is extended to the original purchaser and applies to defects in materials and workmanship of your outdoor furniture or accessory item(s), provided it is maintained with care and used only for personal, residential purposes. Frames and welds are warranted to be free from defects in material or workmanship for a period of one year.
  • Page 12 Need more replacements? 1. Visit us at www.apexgarden.us 2. Choose your country 3. Search the model number of your gazebo or SKU numbers of items listed below using the search bar at the top left of our website. 4. Click on what you need and check out! Besoin de remplacements? 1.

This manual is also suitable for:

22-71590067
