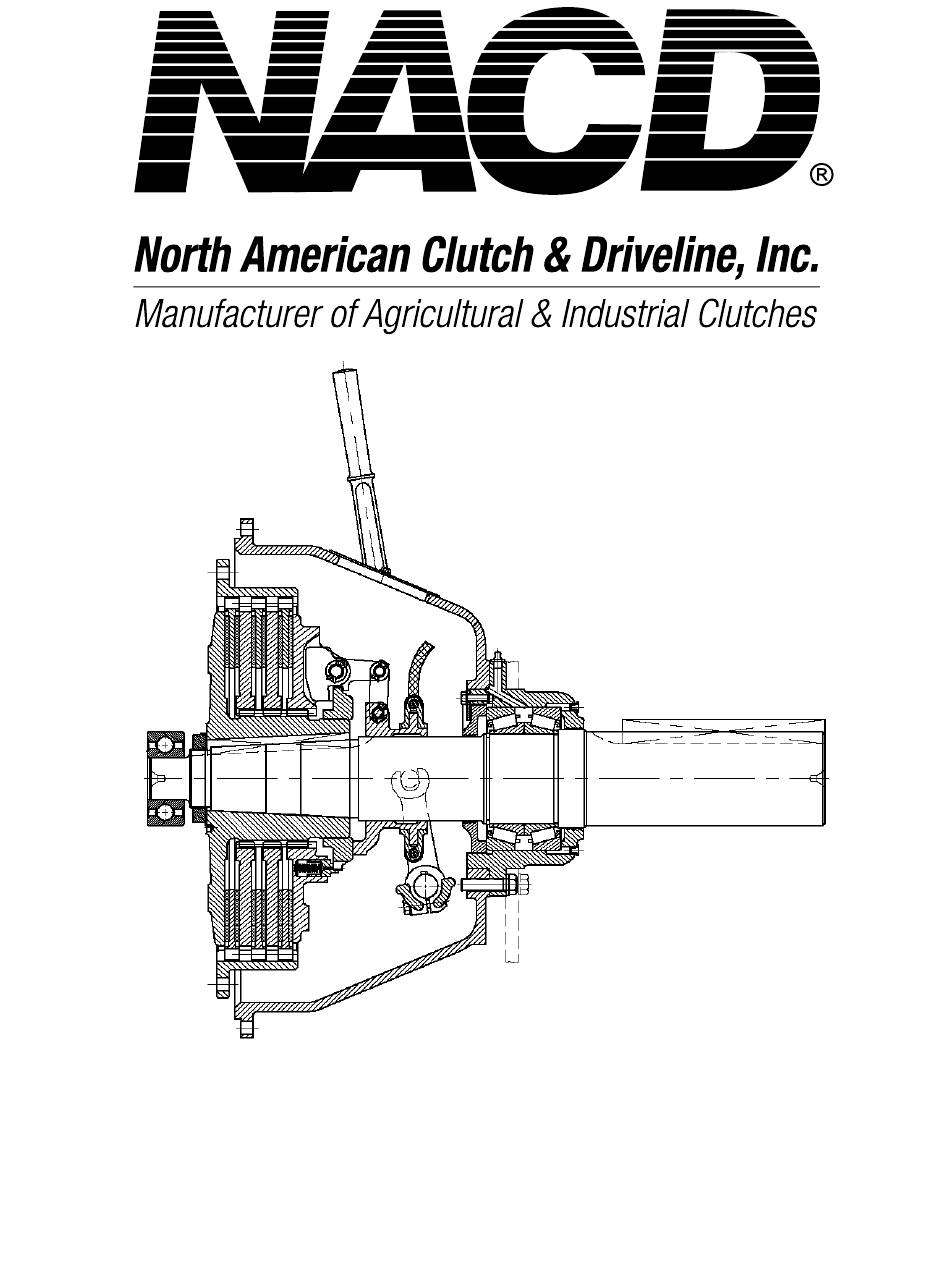

NACD Power Take-Off Service Manual
1022763AM
SP214AM and SP314AM Clutches
Includes Installation, Operation, Maintenance and Overhaul Instructions
