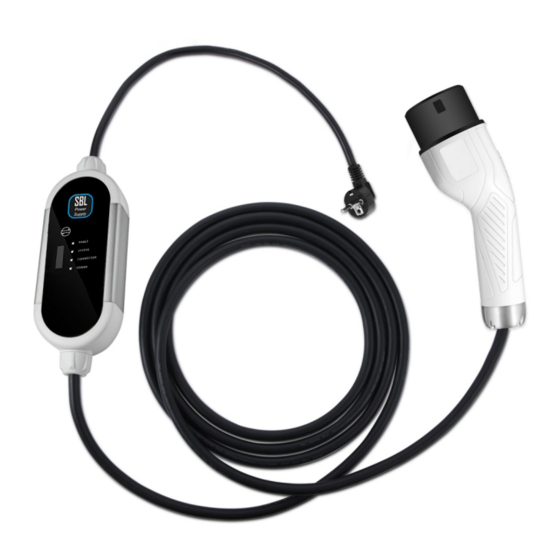

- Page 1 TDT-A1-1P-EV016 AC EV Charger series AC Portable EV Charger Instruction Manual Reminder: Product pictures of this manual are for informational purposes only, subject to physical information 1 / 6...
- Page 2 TDT-A1-1P-EV016 AC EV Charger series Foreword Thank you for your support of this product. The company focuses on the field of new energy electric vehicle charging, and is committed to providing customers with excellent charging equipment and complete charging operation solutions.
- Page 3 TDT-A1-1P-EV016 AC EV Charger series Product Specifications: TDT-A1-1P-EV016 Specification Model Classic Style Adjust Current □ █ Voltage 230 V 50Hz AC Input Current 16A(MAX) Voltage 230V 50Hz 8/10/13/16A AC Output Current (Not adjustable) (4 gear adjustment) Power 3KW (MAX) 3.6KW (MAX) Aviation aluminum &ABS+PC...
- Page 4 TDT-A1-1P-EV016 AC EV Charger series The indicate details, please refer to product you purchase. POWER CONNECTOR STATUS FAULT PRODUCT STATUS LIGHT LIGHT LIGHT LIGHT Standby light went out went out went out Connecting light flashing went out went out Charging...
- Page 5 TDT-A1-1P-EV016 AC EV Charger series Charging Operation Operation Guidelines for portable charger: 1. First, insert the plug of the portable charger into the power socket, and then turn on the portable charger and perform a self-inspection. 2. This step only for adjustable current one. When other currents are needed for charging, double- click the button to switch, the current switching sequence is 8A→10A→13A→16A (Adjustable...
- Page 6 TDT-A1-1P-EV016 AC EV Charger series WARNING 1. Do not use the device when the charging cable damaged. 2. When using this product, the power supply wires must be well grounded. 3. It is strictly forbidden to use external wires or adapters.
