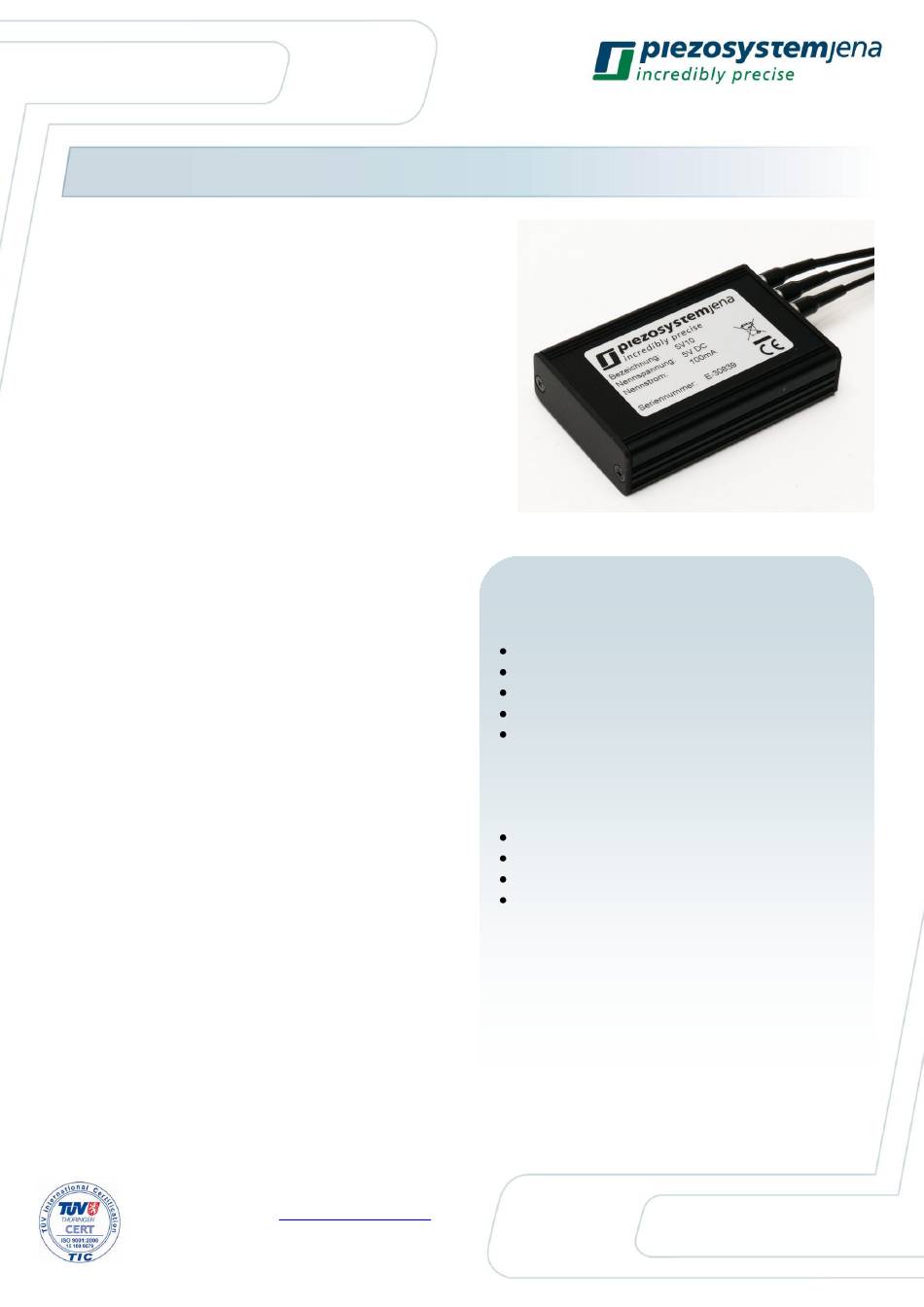

5V10 OEM - Piezo Controller
Single-Axis Piezo Controller
Concept:
The OEM amplifier 5V10-OEM has been developed
for bimorph and low voltage piezo elements. The
design and the construction provide a flexible
alternative in electronic drives and control systems.
The easy adaptation of the output voltage and
current to the customer's system enables a variety
of applications.
Specials:
Special circuits are integrated to protect the piezo
element from voltage
voltages.The main supply voltage is 5V DC.
A modulation input (BNC connector) is made for an
external signal from 0V to +5V. The output voltage
is 0V to +150V.
Design:
The 5V10 is built in a robust metal casing for easy
integration into customer setups.
phone: +49 (3641) 66880 • fax: +49 (3641) 668866
info@piezojena.com •
5V10_ds_Rev02_2012_03_27.doc
spikes and excessive
http://www.piezojena.com
Product highlights:
single-axis piezo controller
OEM design
permanent output current 10mA
excellent cost effectiveness
base for customs designed low cost
solutions
Applications:
Industriel use in OEM desing
Microscopy
Valve technology
Mirro alignment

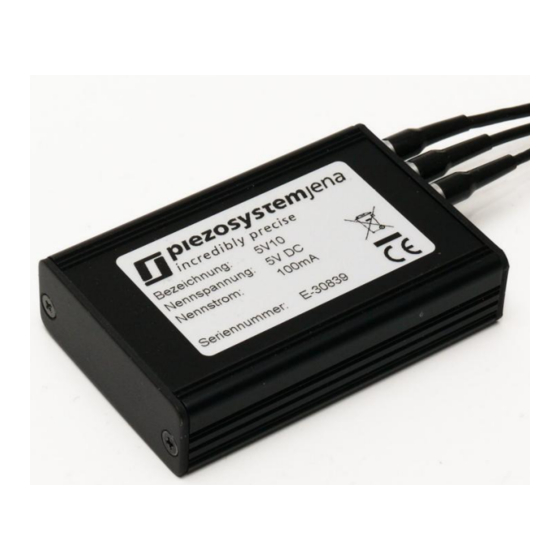

image: 5V10
