Summary of Contents for BJ Live SHX Central Rack

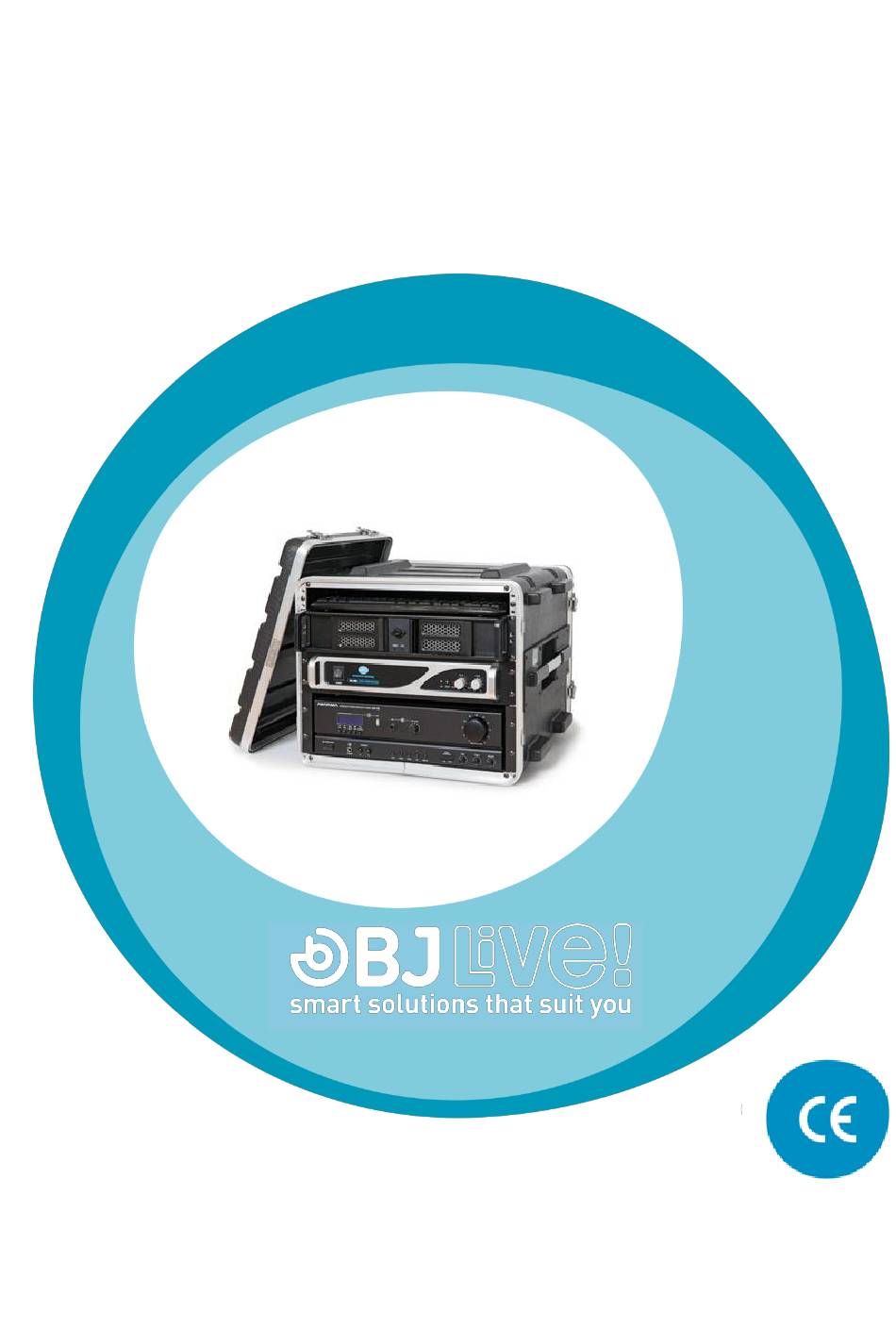

- Page 1 BJ-EX1 SHX Central Rack Assembly guide c.Mare de Déu del Coll, 70, 08023 Barcelona | Spain | t+34 93 285 04 37 |fax + 34 93 553 56 34 | export@bjliveatcom | www.bjliveat.com...
- Page 2 1_Parts of the equipment The model or manufacturer of some of the parts described in this section may vary from the equipment that it is in your hands now, but the main features and operation remains the same. 1.1_Black ABS rack Size: 540 x 430 x 560 mm 1.2_Computer The computer hosts the SHX program and the whole set of default contents.
- Page 3 Computer rear connections Computer front connections 1.3_Amplifiers 1.3.1_AC amplifier for vibroacustic system Power amplifier with 2 outputs, feeding up to 2x2 vibroacoustic elements. This module is included only when the vibration is requested in some elements. 1.3.2_Hi- Fi Amplifier for sound system Audio amplifier used for the sound, feeding two speakers.
- Page 4 1.3.3_Rear connections for sound and vibration .4_Computer screen 1.5_Computer peripherals...
- Page 5 1.6_ SHX Central device The SHX Central device integrates the control of all the elements in a multisensory room: DMX, RF and IR controlled elements, UV, projection, etc. It can be accessed via scanning, touch screen, eye gaze and in general with any means which allow to access computers and tablets.
- Page 6 Male 5 pin DMX cable - 3 pin female Connection to end line To start working with the equipment: 1) Connect the equipment to the mains using the power supply provided. 2) Connect the USB cables to the USB ports of the computer. Avoid connecting the USB cables using a HUB or a USB multiple connector.
- Page 7 1.7_Projector and ceiling mounting system 1.7.1_Projector It is necessary to calculate t he opt im al dist ance where the projector should be placed with regard to the projection-wall or screen in order to get the right image size: http://www.epson.com/alf_upload/landing/distance-calculator/ Projector Distance from Projection...
- Page 8 1.7.2_ Ceiling mounting system Installation manual included in the packaging. 1.8_Speakers Speaker mounting system:...
- Page 9 1.9_ Wiring of vibroacoustic elements This element is provided only in case the vibration in any of the furniture is requested...
