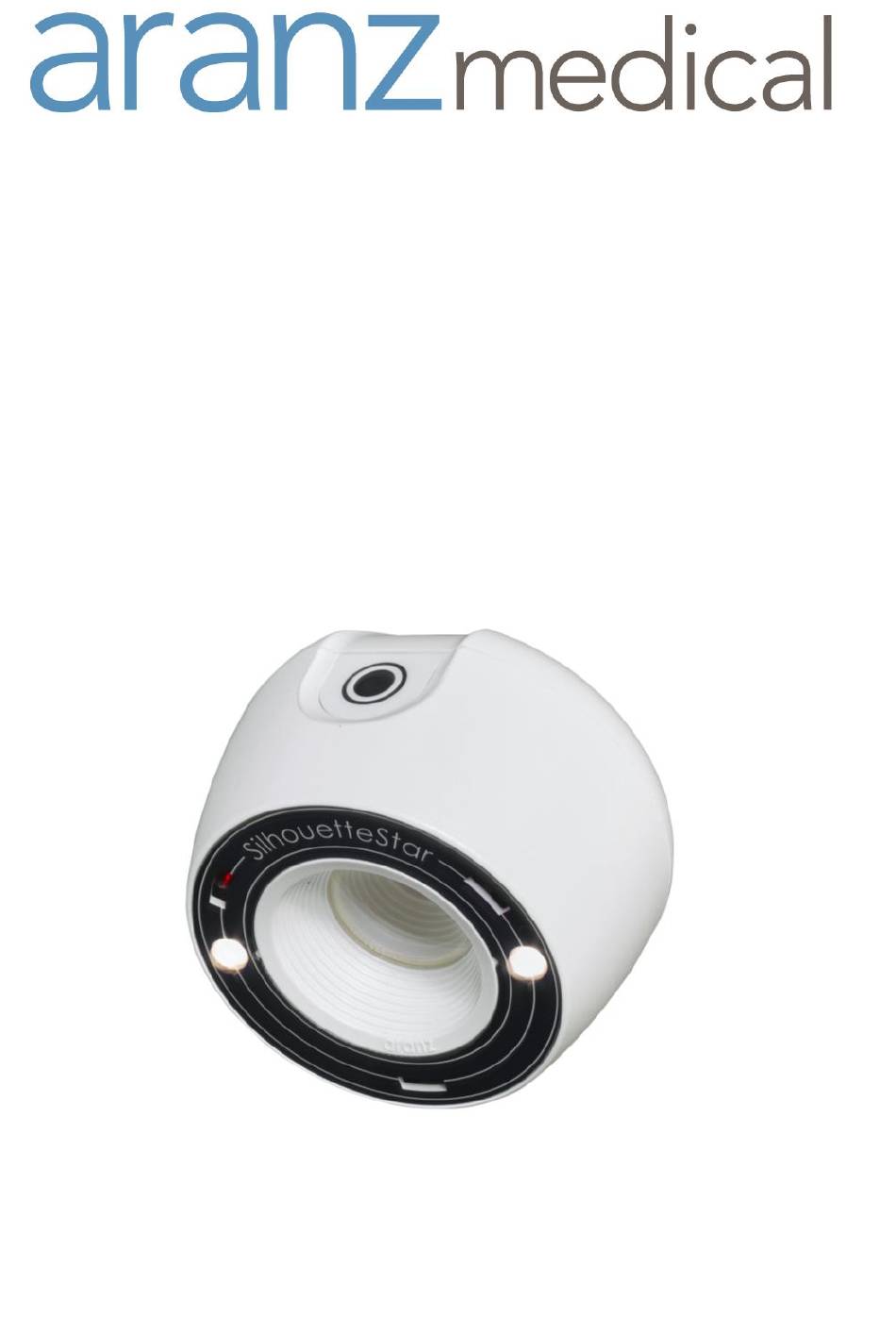

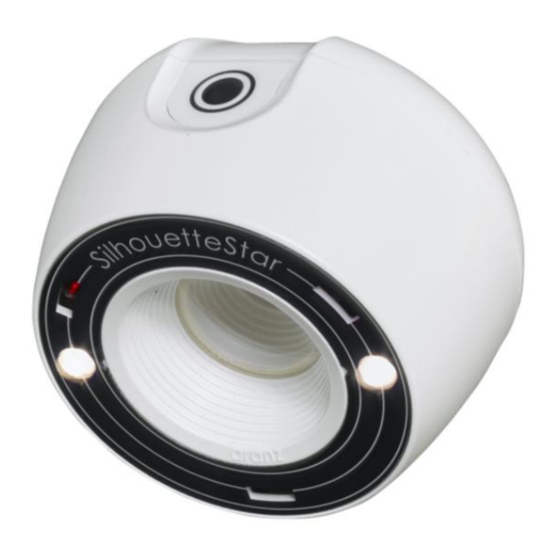

- Page 1 Quick Reference Guide SilhouetteStar 1 SilhouetteConnect...
- Page 3 You can find more detailed information in the user manuals or SilhouetteConnect help documentation or the Silhouette Clinical User’s Guide. Document # 2018-00357 Rev2.0 Copyright © 2020 ARANZ Medical Limited Page 1 of 14...
-
Page 4: Table Of Contents
Capturing Images ............................8 Tracing Wound Boundaries ......................... 10 Taking a Multiple Image Measurement ....................... 11 Measurement Accuracy ..........................12 Good Habits ..............................13 Getting Support ............................14 Document # 2018-00357 Rev2.0 Copyright © 2020 ARANZ Medical Limited Page 2 of 14... -
Page 5: Warnings
• Use only a SilhouetteStar USB cable. Use of a non-factory cable may cause interference with other electronic devices and/or unreliable operation. • If the USB cable becomes damaged, please contact ARANZ Medical for a replacement. Continued use with a damaged cable may cause interference with other electronic devices and/or result in incorrect measurements and/or cause permanent damage to SilhouetteStar or to the attached computer. - Page 6 • This product is designed to have a nominal operational life of five years. • At end of unit life, please recycle in accordance with local government regulations. Document # 2018-00357 Rev2.0 Copyright © 2020 ARANZ Medical Limited Page 4 of 14...
- Page 7 Laser light. SilhouetteStar is designated as a Class 1 laser product during all operational procedures. Waste Electrical and Electronic Equipment Directive (WEEE) Symbol. Separate collection for electrical and electronic equipment under WEEE EC Directive. Document # 2018-00357 Rev2.0 Copyright © 2020 ARANZ Medical Limited Page 5 of 14...
-
Page 8: Installation And Getting Started
SilhouetteConnect. If you select Continue without entering a client code or importing a valid license, you can use SilhouetteConnect for the 30-day trial period only. Document # 2018-00357 Rev2.0 Copyright © 2020 ARANZ Medical Limited Page 6 of 14... -
Page 9: Connecting The Silhouettestar
Disconnecting the SilhouetteStar To disconnect the SilhouetteStar, make sure the lasers are off and simply remove the USB cable from your SilhouetteStar and/or the computer’s USB port. Document # 2018-00357 Rev2.0 Copyright © 2020 ARANZ Medical Limited Page 7 of 14... -
Page 10: Typical Silhouette Data Collection Workflow
The device takes a series of images and it is important to keep it steady during the capture sequence to get the best results. Document # 2018-00357 Rev2.0 Copyright © 2020 ARANZ Medical Limited Page 8 of 14... - Page 11 SilhouetteConnect or, if your computer’s sound is off, until the image appears on-screen in SilhouetteConnect. Continue capturing as many images as required. Document # 2018-00357 Rev2.0 Copyright © 2020 ARANZ Medical Limited Page 9 of 14...
-
Page 12: Tracing Wound Boundaries
When you outline islands and/or fragments for a wound, maximum depth and volume will not be displayed for that wound. Document # 2018-00357 Rev2.0 Copyright © 2020 ARANZ Medical Limited Page 10 of 14... -
Page 13: Taking A Multiple Image Measurement
For the next image, trace the second segment of the wound in the same manner as the first. Try to draw the outline as close as possible to where you drew the outline for the first segment of the wound. Document # 2018-00357 Rev2.0 Copyright © 2020 ARANZ Medical Limited Page 11 of 14... -
Page 14: Measurement Accuracy
<1% for area and perimeter, and <2% for average depth and volume. Reference: Nixon, Rivett and Robinson; Accuracy and repeatability of wound measurement http://www.aranzmedical.com/wound-measurement-accuracy-study/ Document # 2018-00357 Rev2.0 Copyright © 2020 ARANZ Medical Limited Page 12 of 14... -
Page 15: Good Habits
• Do not leave the SilhouetteStar in places where it will be exposed to temperature extremes for extended periods of time, e.g. in a vehicle in the hot sun or in freezing conditions. Document # 2018-00357 Rev2.0 Copyright © 2020 ARANZ Medical Limited Page 13 of 14... -
Page 16: Getting Support
Please contact your system administrator Phone (International): +64-3-374-6120 for support information. Phone (US customers): +1 866-467-0934 Email: sales@aranzmedical.com Other ARANZ Medical contact details: ARANZ Medical website: www.aranzmedical.com Fax: +64-3-374-6130 Regulatory contact details: CE Authorized mdiEUROPA Phone +49 (0)511 39089530 Representative werner.sander@mdi-europa.com... - Page 18 © ARANZ Medical Limited 2020...
