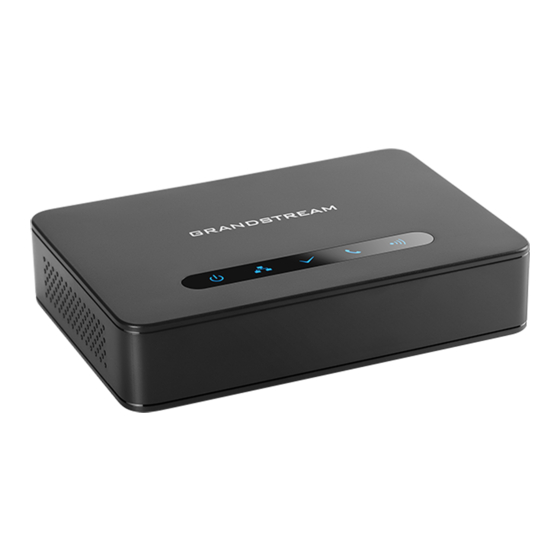

Grandstream Networks DP760 User Manual

Dect repeater
Hide thumbs Also See for DP760:
Table of Contents

Advertisement

Quick Links

Download this manual
https://arttel.ru/
Grandstream Networks, Inc.
DP760
DECT Repeater
User Manual
https://arttel.ru/shop/dect-ip-telefony/grandstream-dp760

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP760 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grandstream Networks DP760

Summary of Contents for Grandstream Networks DP760

  • Page 1 Grandstream Networks, Inc. DP760 DECT Repeater User Manual https://arttel.ru/shop/dect-ip-telefony/grandstream-dp760...
  • Page 2 Grandstream Networks, Inc. is not permitted. The latest electronic version of this guide is available for download here: http://www.grandstream.com/support Grandstream is a registered trademark and Grandstream logo is a trademark of Grandstream Networks, Inc. in the United States, Europe and other countries. CAUTION Changes or modifications to this product not expressly approved by Grandstream, or operation of this product in any way other than as detailed by this guide, could void your manufacturer warranty.
  • Page 3 GNU GPL INFORMATION DP760 firmware contains third-party software licensed under the GNU General Public License (GPL). Grandstream uses software under the specific terms of the GPL. Please see the GNU General Public License (GPL) for the exact terms and conditions of the license.

  • Page 4: Table Of Contents

    Firmware Version 1.0.3.34 ........................8 GUI EXAMPLES ......................9 WELCOME ........................10 PRODUCT OVERVIEW ....................11 Feature Highlights ..........................11 DP760 Technical Specifications ......................11 GETTING STARTED ..................... 13 Equipment Packaging .......................... 13 Connecting DP760 ..........................13 Connecting via AC power ......................14 Connecting via PoE ........................
  • Page 5 DP760 DECT Repeater Association ....................32 Auto Association ........................... 33 Manual Association ........................34 Use DP750 Repeater Management to Associate DP760 ............. 35 DP760 DECT REPEATER DISSOCIATION ..............37 Using DP760 Web GUI ........................37 Using Page Button ..........................37 Using Repeater Management Mode on DP750 ...................
  • Page 6 Table of Tables Table 1: DP760 Features at a Glance ......................11 Table 2: DP760 Technical Specifications ....................11 Table 3: Equipment Packaging ........................13 Table 4: DP760 LED Patterns ........................16 Table 5: Status Pages Definitions ....................... 21 Table 6: DECT Page Definitions........................

  • Page 7: Document Purpose

    DOCUMENT PURPOSE This document describes how to configure DP760 DECT Repeater Web GUI menu. The intended audiences of this document are VoIP administrators. Please visit http://www.grandstream.com/support to download the latest DP760 User Manual. This guide covers following topics: •...

  • Page 8: Change Log

    CHANGE LOG This section documents significant changes from previous versions of administration guide for DP760. Only major new features or major document updates are listed here. Minor updates for corrections or editing are not documented here. Firmware Version 1.0.3.34 •...

  • Page 9: Gui Examples

    GUI EXAMPLES http://www.grandstream.com/sites/default/files/Resources/dp760_web_gui.zip 1. Screenshot of Login Page. 2. Screenshots of Status Page. 3. Screenshots of DECT Page. 4. Screenshots of Network Settings Page. 5. Screenshots of Maintenance Page. P a g e DP760 User Manual Version 1.0.3.34 https://arttel.ru/shop/dect-ip-telefony/grandstream-dp760...

  • Page 10: Welcome

    PoE for convenient installation and variety of remote features including provisioning, status moni- toring and firmware upgrade. When paired with Grandstream DP750 DECT VoIP base station and DP720 handsets, the DP760 is a powerful DECT Repeater that allows any business or residential user to create a cordless VoIP solution of extended coverage.

  • Page 11: Product Overview

    Automatic or manual association to base station. DP760 Technical Specifications The following table resumes all technical specifications including the protocols / standards supported, voice codecs, telephony features, languages and upgrade/provisioning settings for DP760 DECT Repeater. Table 2: DP760 Technical Specifications Telephony standards: ▪...
  • Page 12 Storage: -20º to 60ºC (-4º to 140ºF). and Humidity Humidity: 10% to 90% non-condensing. FCC: Part 15D, Part 15B, MPE CE: EN60950, EN301489-1-6, EN301406, EN50385 Compliance RCM: AS/NZS60950 ANATEL: #2288-16-9452 P a g e DP760 User Manual Version 1.0.3.34 https://arttel.ru/shop/dect-ip-telefony/grandstream-dp760...

  • Page 13: Getting Started

    Reset Button Network Socket Radio/Page Button Power Input Figure 2: DP760 Back View There are two options to connect DP760 DECT Repeater, either with the AC power or Power over Ethernet (PoE) P a g e DP760 User Manual Version 1.0.3.34...

  • Page 14: Connecting Via Ac Power

    DP760 Implementation Architecture The DP750 Base Station can support up to 5 DP760 DECT Repeater stations to extend the coverage area of the base in all directions, including through floors and ceilings using star architecture as displayed on the following diagrams.

  • Page 15: Dp760 Led Patterns

    In star mode configuration, the coverage area of the repeaters should overlap the coverage area of the base station. DP760 LED Patterns The DP760 has 5 LED lights. Please refer to following table describing the status of each LED. Figure 5: DP760 LED Patterns P a g e DP760 User Manual Version 1.0.3.34...

  • Page 16: Table 4: Dp760 Led Patterns

    • Solid ON: When the association between DECT repeater and Base station is operational. Indicates status of the association between DP760 and DP750 during calls. • Solid ON: When there are no active calls and the association between DECT repeater and Base station is operational.

  • Page 17: Configuration Guide

    DP760 through a Web browser such as Google Chrome, Mozilla Firefox and Microsoft Internet Explorer. Note: If DP760 has a known IP, users can access to its Web GUI by entering the IP address in their Web browser on a device connected to same network.

  • Page 18: Accessing The Web Gui Using Dp750 Repeater Management Mode

    If using the Save button, after making all the changes, click on the Apply button on top of the page to submit. After submitting the changes in all the Web GUI pages, reboot DP760 to have the changes take effect if necessary;...

  • Page 19: Changing User Level Password

    Note: DO NOT USE same password for both user and admin accounts. Changing Admin Level Password 1. Access your DP760 DECT Repeater Web GUI by entering its IP address in your favorite browser. 2. Enter your admin’s username and password. (Default username and password: admin/admin) 3.

  • Page 20: Changing Http/Https Web Access Port

    Note: DO NOT USE same password for both user and admin accounts. Changing HTTP/HTTPS Web Access Port 1. Access your DP760 DECT Repeater Web GUI by entering its IP address in your favorite browser. 2. Enter your admin’s username and password. (Default username and password: admin/admin).

  • Page 21: Web Configuration Definitions

    Note: A reboot is required for this change to take effect. Figure 9: Web Access Port Web Configuration Definitions This section describes DP760 options available in its Web GUI. As mentioned, you can log in as an administrator or an end user. •...
  • Page 22 DP750 base station configured RFPI. (During manual association) Status • Repeater is in normal operation: DP760 DECT repeater is operational and associated with the DP750. Repeater Status Note: The message “Repeater is operational after auto configuration...

  • Page 23: Dect Page Definitions

    Default is DP760_[last 6 digit of MAC address]. Manually Configures manually RFPI of DP750 base station to connect to. If empty, the Configured Base repeater station DP760 will search for DP750 base stations and connect RFPI automatically to the first one found. P a g e DP760 User Manual Version 1.0.3.34...

  • Page 24: Network Settings

    Allows to use manually configured RFPI (if non-empty) when set to Yes. Use Manually If set to NO, the DP760 will search for a DP750 to connect with, regardless of Configured RFPI manual configuration. Network Settings Table 7: Network Settings Pages Definitions Network Settings –...

  • Page 25: Maintenance Page Definitions

    Default is No. Information Verify host when Verifies host name in server certificate when using HTTPS. Default is Yes. using HTTPS Upgrade via Selects firmware upgrade method: TFTP, HTTP or HTTPS. P a g e DP760 User Manual Version 1.0.3.34 https://arttel.ru/shop/dect-ip-telefony/grandstream-dp760...
  • Page 26 Specifies when the firmware upgrade process will be initiated; there are 4 options: (Default is No) • No: DP760 DECT Repeater will only do upgrade once at boot up. Automatic • Check every X minutes: User needs to specify a period in minutes.
  • Page 27 Option 43 and options 66 and 43. Option 66 to Note: If DHCP Option 66 is enabled, DP760 will download firmware file from the Override Server server URL provided by DHCP, even though Config Server Path is left blank. Specifies when provisioning process will be initiated; there are 4 options: •...
  • Page 28 NTP server is provided by DHCP server. Default is Yes. Time Zone Selects time zone to define date/time on the repeater station. Self-Defined Time Allows users to define their own time zone. Zone P a g e DP760 User Manual Version 1.0.3.34 https://arttel.ru/shop/dect-ip-telefony/grandstream-dp760...
  • Page 29 Obtains time zone setting (offset) from a DHCP server using DHCP Option 2; it will 2 to override time override selected time zone. If set to No, DP760 DECT repeater will use selected zone time zone even if provided by DHCP server. Default is Yes.
  • Page 30 Default setting is Full Factory Reset. Perform Press Reset to restore the factory default settings on the DP760. Selected Reset Specifies the type of reset to perform via the hardware button on the device.

  • Page 31: Rebooting From Remote Location

    Rebooting from Remote Location Press the Reboot button on the top right corner of the Web GUI page to reboot the DP760 remotely. The Web browser will then display a reboot message to confirm the reboot by pressing OK or avoid by clicking on Cancel button.

  • Page 32: Dp760 Dect Repeater Association With Dp750

    DP760 DECT REPEATER ASSOCIATION WITH DP750 After factory reset, DP760 will be set to “Auto-region” mode. In this mode, the three LEDs of right side keep quick blinking, then the DP760 will search the base signal in the current environment to auto associate with it and then auto switch to the same region (EU, US or BR) of the base station.

  • Page 33: Auto Association

    Note: If all the LEDs remain on, it indicates that the DP760 Repeater has successfully associated with a DP750 Base and ready for use. You may need to dissociate it before continuing (Please refer to [DP760 DECT REPEATER DISSOCIATION]).

  • Page 34: Manual Association

    Manual Association To manually associate your DP760 DECT Repeater to your DP750 Base Station: 1. Access the Web GUI of your DP760 using the admin’s username and password. (Default username and password are admin/admin). Refer to [Accessing the Web GUI] 2.

  • Page 35: Use Dp750 Repeater Management To Associate Dp760

    The repeater management mode displays discovered and paired devices using their name, IP and Mac addresses and also gives the possibility of associating the DP750 Base Station with DP760 DECT Repeater. Please refer to following steps in order to associate DP760 with DP750 using repeater management mode.

  • Page 36: Figure 14: Dect Repeater Status On Dp750

    3. Clink Link button to associate the base and repeater stations. Note: The DP760 Repeater stations associated with DP750 Base Station are displayed and available under Status  DECT Repeater Status  Paired Devices with their status, signal strength, number of active calls and also the ability to disconnect them from the paired base station.

  • Page 37: Dp760 Dect Repeater Dissociation

    RFPs. Figure 15: DECT Repeater Status on DP750 Using Page Button Long press on page button on the back panel of DP760 for 7 seconds, it will remove the association values of the previous base station. P a g e DP760 User Manual Version 1.0.3.34...

  • Page 38: Using Repeater Management Mode On Dp750

    Using Repeater Management Mode on DP750 To disconnect your DP760 DECT Repeater using the repeater management mode on DP750: Access the Web GUI of your DP750 using the admin’s username and password. (Default username and password are admin/admin). 2. Navigate to Status  DECT Repeater Status.

  • Page 39: Upgrading And Provisioning

    Firmware Upgrade Procedure Please follow below steps in order to upgrade the firmware version of your DP760 repeater station: 1. Access the Web GUI of your DP760 using the admin’s username and password. (Default username and password is: admin/admin).

  • Page 40: Upgrading Via Local Tftp/Http Servers

    Alternatively, users can download a free TFTP or HTTP server and conduct a local firmware upgrade. A free windows version TFTP server is available for download from: http://www.solarwinds.com/products/freetools/free_tftp_server.aspx http://tftpd32.jounin.net/. P a g e DP760 User Manual Version 1.0.3.34 https://arttel.ru/shop/dect-ip-telefony/grandstream-dp760...
  • Page 41 TFTP server from Receive Only to Transmit Only for the firmware upgrade. 4. Start the TFTP server and configure the TFTP server on the DP760 DECT Repeater Web GUI. 5. Configure the Firmware Server Path to the IP address of the TFTP server.

  • Page 42: Restore Factory Default Settings

    VoIP service provider. Resetting DP760 Repeater Station There are two methods to reset your DP760 DECT Repeater to the default settings: Via Reset Button 1. Locate the reset hole on the back panel of your DP760.

  • Page 43: Experiencing The Dp760

    Thank you again for purchasing Grandstream DP760 DECT Repeater, it will be sure to bring convenience to both your business and personal life. P a g e DP760 User Manual Version 1.0.3.34...
