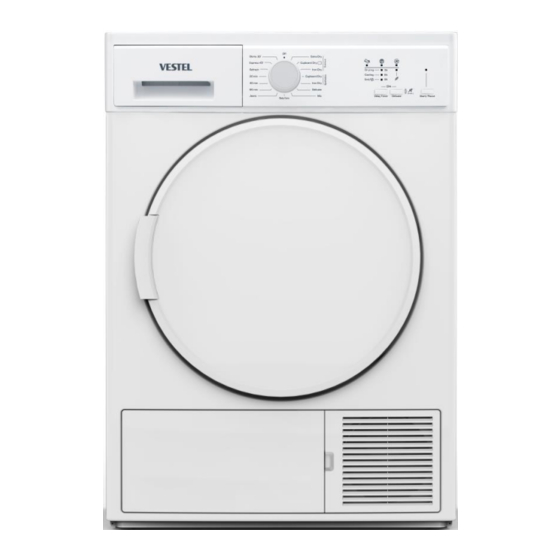

CONTINENTAL EDISON BANDEAU HP F1 Service Manual
  1. Manuals
  2. Brands
  3. CONTINENTAL EDISON Manuals
  4. Washer
  5. BANDEAU HP F1
  6. Service manual

CONTINENTAL EDISON BANDEAU HP F1 Service Manual

Hp f1 panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

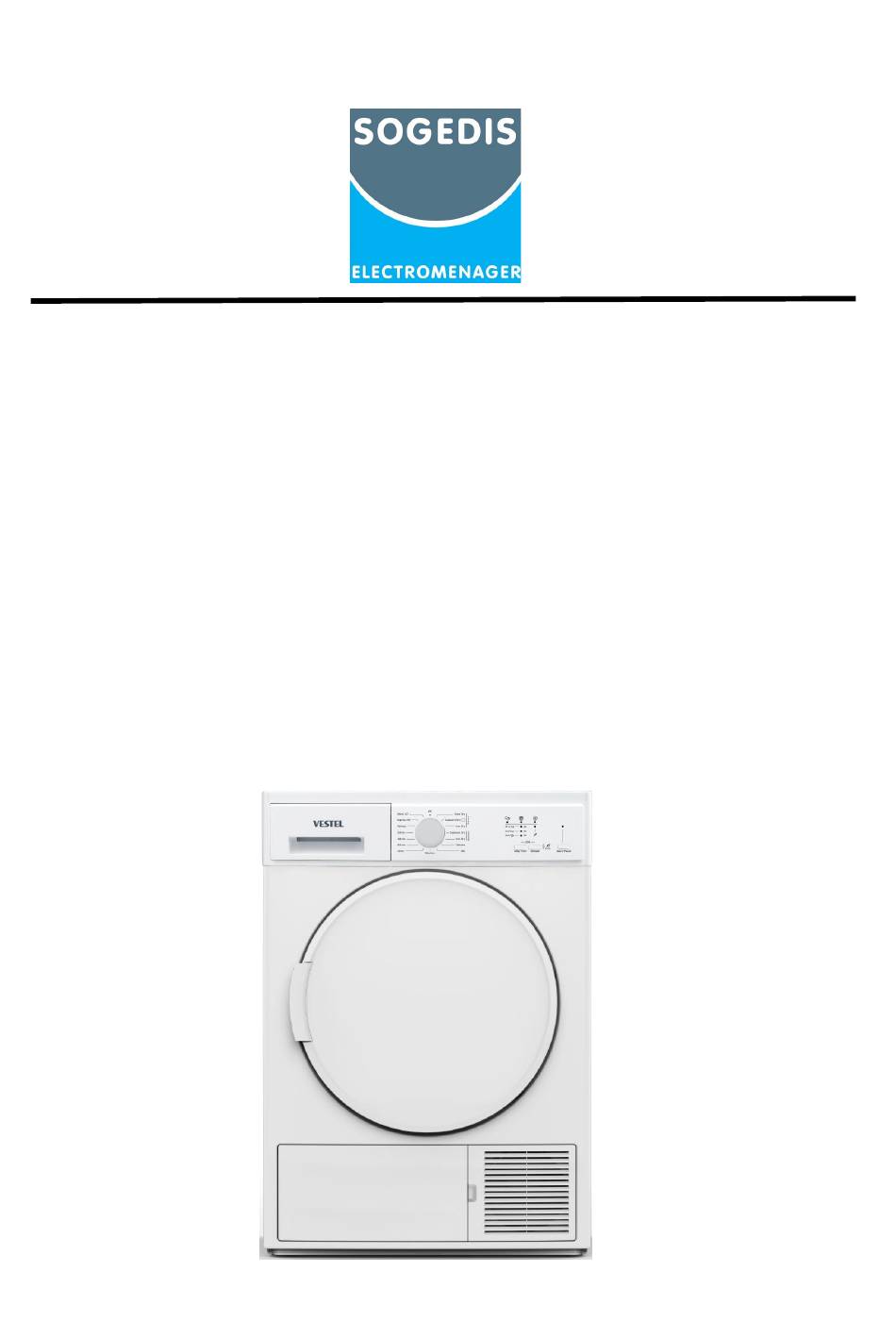

SECHE LINGE
MANUEL DE SERVICE
BANDEAU
HP F1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BANDEAU HP F1 and is the answer not in the manual?

Questions and answers

Summary of Contents for CONTINENTAL EDISON BANDEAU HP F1

  • Page 1 SECHE LINGE MANUEL DE SERVICE BANDEAU HP F1...

  • Page 2: Table Of Contents

    CONTENTS 1. OVERVIEW AND WORKING PRINCIPLE ....................4 1.2. Working Principle: ........................4 2. TECHNICAL SPECIFICATIONS ........................ 5 3. INSTALLATION ............................. 5 3.1. Issues that should be informed to customer ................5 4. CONTROL PANEL AND PROGRAM SELECTION TABLE ................6 4.1.
  • Page 3 6.22. Plinth Cover ..........................40 6.23. Door ............................41 6.24. Drum Bearing Wheel ........................ 42 6.25. Drumlight ..........................43 6.26. Front Panel ..........................44 6.27. Door NTC ..........................45 6.28. Side Bracket ..........................46 6.29. Front Shield ..........................47 6.30. Front Isolation Foam ........................ 48 6.31.

  • Page 4: Overview And Working Principle

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 1. OVERVIEW AND WORKING PRINCIPLE 1. Top Plate 2. Control Panel 3. Loading Door 4. Plinth 5. Plinth opening slot 6. Ventilation grills 7. Adjustable feet 8. Plinth cover 9. Type plate 10. Lint filter 11.

  • Page 5: Technical Specifications

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 2. TECHNICAL SPECIFICATIONS Manufacturer Vestel White Goods Capacity (max) 7 kg-8 kg-9 kg Height Min: 845mm Max: 855 mm Depth 563 mm Width 596 mm Net weight (with plastic door) 45,4 kg Net weight (with glass door) 47,4 kg Voltage 220-240 V...

  • Page 6: Control Panel And Program Selection Table

    HP F1 PANEL CUSTOMER SUPPORT SERVICE MANUAL 4. CONTROL PANEL AND PROGRAM SELECTION TABLE 4.1. Control Panel Display Symbols Drying Stages Indicator 4.2.Program List KNOB POSITION PROGRAM Cotton Extra Dry Cotton Cupboard Dry Cotton Iron Dry Synthetics Cupboard Dry Synthetics Iron Dry Delicate Baby Care Jeans...
  • Page 7 HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT ***The machine has humidity sensor that detects whether the laundry dry or not. At the programs that work with humidity sensor laundry does not dry in fixed time. Duration is constantly updates according to humidity data taking from laundry ***Time Drying Program: 60min /40min / 20min Humidity sensor is deactivated.

  • Page 8: Failure Modes And Service Autotest

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 5.FAILURE MODES AND SERVICE AUTOTEST ***Service auto test must be run for every service call. The case in the photo don’t show us a failure code. Normally, when the drying program ends, the filter, water tank and end led are flashing.

  • Page 9: Failure Modes And Warning Leds

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 5.1. Failure Modes and Warning Leds F1 HEAT PUMP MODEL ERROR CODES ERROR CODE REASON Aquaswitch connector is disconnected Compressor connector is disconnected Compressor NTC connector is disconnected Door NTC connector is disconnected Motor connector is disconnected, motor is locked Voltage fluctuation Notes For Service autotest:...

  • Page 10: Service Auto Test Steps

    HP F1 PANEL CUSTOMER SUPPORT SERVICE MANUAL 5.2.Service Auto Test Steps STEPS Control Possible Errors While pushing SW2 button for 5 sec, position knob to Program 1. Then press Start/Pause button. Machine enters Routine to to service autotest. Enter Servis F2: All warning leds makes fast blink for 2 sec and then Autotest becomes fix off.

  • Page 11: Disassembly

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6. DISASSEMBLY 6.1. Top Plate Remove two screws that fix the top plate at the back . Remove by pulling the top plate to yourself .

  • Page 12: Control Panel

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.2. Control Panel Remove 2 screws from the top After the water tank removed, the plastic screw in the center of the control panel should be removed...
  • Page 13 HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.2. Control Panel 1. After removing the screws on the control panel, the control panel is removed as shown in the photo from the upper support bracket. 2. The cables on the control panel are carefully removed from the cable paths.
  • Page 14 HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.2. Control Panel 1. All sockets which is connected with electronic card must be removed carefully as shown in the photo.

  • Page 15: Electronic Card

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.3. Electronic Card 1. To remove the electronic card box (PCB box) from the control panel, it is necessary to remove 6 tabs. As shown in the photo, you can take off the snap fits with thin screwdriver. 2.
  • Page 16 HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.3. Electronic Card 1. Separate electronic card cover from box by opening the snap fits as shown in the photo.
  • Page 17 HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.3. Electronic Card 1. Remove the electronic card from pcb box as shown in the photo...

  • Page 18: Side Panel

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.4. Side Panel Remove 10 screws on side panels...
  • Page 19 HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.4. Side Panel 2. Remove 2 screws from front 3. It should not be forgotten to take bottom screw ( 2 screws) 4. Remove the side plate which is pulled out screws , by pushing up...

  • Page 20: Supply Cable

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.5. Supply Cable 1. Remove the supply cable brown and blue cable socket. 2. Remove the terminals with tool as shown in the photo 3. Remove supply cord by pushing up...

  • Page 21: Emi Filter

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.6. Emi Filter 1. Remove EMI filter sockets Remove the terminals with tool as shown in the photo 3. Remove the EMI filter which is fixed with 2 screws to the rear panel...

  • Page 22: Rear Cover

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.7. Rear Cover 1. Remove all screws shown in the photo...

  • Page 23: Pump

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.8.Pump 1. Remove the screw on pump cover Remove 2 hoses that is connected with pum 2. After opening the pump holder plastic cover, 3. Remove aqua switch and pump socket. 4. Remove the pump holder plastic from basement plastic as shown in the photo...
  • Page 24 HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.8.Pump 5. Push the pump from plastic. 6. There is a float in the pump housing as shown in the photo.

  • Page 25: Process Fan

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.9.Process Fan 1. Hold the fan as shown in the photo. 2. First remove washer and nut then remove the process fan.

  • Page 26: Rear Panel

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.10. Rear Panel 1. Remove segment on rear panel. When assembled the machine do not forget that there are two washers. 2. Remove 8 screws from panel...
  • Page 27 HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.10. Rear Panel 1. Remove hoses from rear panel 2. Remove the rear panel by pulling to yourself...

  • Page 28: Rear Isolation Group

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.11. Rear Isolation Group 1. For disassembling the rear Isolation group on rear panel, screws are shown in the photo should be removed.

  • Page 29: Rear Bearing Group

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.12. Rear Bearing Group 1. For disassembling the rear bearing group on rear panel, screws are shown in the photo should be removed.

  • Page 30: Water Tank Housing

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.13. Water Tank Housing 1. Remove 2 hoses from water tank housing. 2. Remove the water tank housing clips . 3. The water tank housing is removed as in the photo.

  • Page 31: Drum

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.14. Drum 1. Motor should be moved up to prevent to press spring. So, belt will be released as shown in the photo. 2. Remove the belt on the drum 3. Pull up the drum to separate with basement plastic. Then, pull back to remove.

  • Page 32: Motor

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.15. Motor 1. Remove capacitor sockets and other sockets from motor. PS: before removing the motor, process fan should be removed. You can apply the same instruction to change the belt...
  • Page 33 HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.15.Motor 2. Remove 4 screws from motor fixing plastic 3. Take the motor from basement plastic as shown in the photo.

  • Page 34: Capacitors

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.16. Capacitors 1. Remove all sockets from motor. 2. Remove the screw on bottom of capacitor then disassemble the capacitor 3. The capacitor is removed by turning.

  • Page 35: Belt

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.17. Belt 1. After you should remove drum and motor than change the belt.

  • Page 36: Humidity Sensor

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.18. Humidity Sensor 1. Remove 5 screws from humidity sensor plastic. 2. Remove the humidity sensor cable as shown in photo.

  • Page 37: Door Latch

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.19. Door latch 1. Remove door latch screw from front panel. 2. Separate the door latch socket from door latch as shown in the photo.

  • Page 38: Plinth

    HP F1 PANEL CUSTOMER SUPPORT SERVICE MANUAL 6.20. Plinth 1. Remove the plinth screw 2. Remove the plinth as shown in the photo...

  • Page 39: Cooling Fan

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.21. Cooling Fan 3. Remove screws on cooling fan fixing plastic 4. Remove the cooling fan fixing plastic as shown in the photo. 5. Disassemble the cooling fan by removing the fan screws and fan ground wire.

  • Page 40: Plinth Cover

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.22. Plinth Cover 1. Remove 2 plinth pin on Plinth cover.

  • Page 41: Door

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.23. Door 1. Remove 2 screws that fix the door. Pull the door by lifting up.

  • Page 42: Drum Bearing Wheel

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.24. Drum Bearing Wheel 1. Remove wheels as shown in the photo...

  • Page 43: Drumlight

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.25. Drumlight 1. Remove Drumlight group from Front Shield 2. Remove the drum light socket. 3. Remove the drum light card.

  • Page 44: Front Panel

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.26. Front Panel Remove 16 screws on the front panel While removing the front panel, the cable of the door latch must also be removed.

  • Page 45: Door Ntc

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.27. Door NTC 1. Remove the socket from NTC sensor on the basement plastic. 2. Remove the NTC from basement plastic by hand or tool.

  • Page 46: Side Bracket

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.28. Side Bracket 1. Remove cable holder plastic clips shown in the photo. (For right side bracket) Remove screw from bracket which is fixing side bracket and top bracket . (Rear panel was removed before.)

  • Page 47: Front Shield

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.29. Front Shield 1. Remove 2 screws in the bottom. 2. Open clips on the left side. 3. The front shield should be lifted as shown in the photo.

  • Page 48: Front Isolation Foam

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.30. Front Isolation Foam Sticky paper Front Isolation mark Force direction 1. It is important to install the new felt correctly after it has been removed from the slot at the front shield. 2.

  • Page 49: Cable Group

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.31. Cable Group 1. Open the cable holder plastic clips on side bracket. 2. Remove cable holder plastic fixing clips as shown in the photo.
  • Page 50 HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 6.31. Cable Group 1. Humidity Sensor Cable 4. Compressor NTS Socket 2. Door Latch Socket Cable 5. Compressor Ground Cable 3. Cable Group of Front Shield 6. Compressor Socket...

  • Page 51: Component Specifications And Measurements

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 7. 7. COMPONENT SPECIFICATIONS AND MEASUREMENTS 7.1. Motor The dryer has an asynchronous motor. In the photo on the right, the socket on the motor are shown to be measured by multiple counters. It is driven with triac via the electronic card (to give energy) and relay (for direction control).

  • Page 52: Motor Measurements

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 7.1.1. Motor Measurements...

  • Page 53: Pump

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 7.2. Pump In Tumble Dryer models, the pump is used to transport the water that accumulates in the condensation chamber to tank in the drawer area. One triac is measured on the electronic card. Technical Features Input Power : 13W max Resistance : 764±10% ohm...

  • Page 54: Pump Measurements

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 7.2.1 Pump Measurements...

  • Page 55: Electronic Card

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 7.3. Electronic Card Technical Features Electronic card is single sided printed circuit board and CEM-1 material The upper picture shows where the components sockets are inserted. 7.4. Door/Compressor NTC Sensor Two NTC sensors are used. The NTC resistance decreases when the temperature rises.

  • Page 56: Door Ntc Sensor Measurements

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 7.4.1. Door NTC Sensor Measurements 7.5. Compressor The dryer has an compressor with an asynchronous motor. In the photo on the right, the terminal on the compressor are shown to be measured by multiple counters. It is driven with relay via the electronic card (to give energy) and relay drive the compressor only one direction.
  • Page 57 HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT Aux windings: 8.75±7% (25 °C temp.) Motor speed : 2928 rpm (Unloaded) Gas Type: R290 Capacitor value : 20 µF ± %5 Compressor Capacity: 7.8 cm³/rev Component Test  Check whether the compressor cable is connected to the compressor terminal. ...

  • Page 58: Compressor Measurements

    HP F1 PANEL CUSTOMER SUPPORT SERVICE MANUAL 7.5.1. Compressor Measurements...

  • Page 59: Door Latch

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 7.6. Door Latch Door latch locks when the door is closed. It’s designed to be opened from inside, in case of children are in the drum Component Test  When the door is closed, check whether there is electrical transmission from IDC connected to electronic card ...

  • Page 60: Humidity Sensor

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 7.7. Humidity Sensor The Humidity Sensor measures the amount of dryness of the laundry in the drum. Component Test  Each humidity sensor plate is checked whether there is electrical transmission from IDC connected to electronic card.

  • Page 61: Cooling Fan

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 7.8. Cooling Fan The dryer has an cooling fan with an asynchronous motor. In the photo on the right, the terminal on the compressor are shown to be measured by multiple counters. It is driven with triac via the electronic card (to give energy) Technical Features Type: single-phase AC fan...

  • Page 62: Cooling Fan Measurements

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 7.8.1. Cooling Fan Measurements 7.9. Drumlight Drumlight lights inside of the drum Component Test Check whether there is electrical transmission from IDC connected to electronic card.

  • Page 63: Troubleshooting

    HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT 8. TROUBLESHOOTING MACHINE IS NOT WORKING If Machine has no power Is there power Machine has not a failure on power sockets(outlet) ? (220V-50 Hz) Is The Supply Make Electrical Connection Cord Plugged Into The EMI Filter? Is the current...
  • Page 64 HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT MACHINE IS NOT WORKING If machine has power Is the door Close / Repair the door closed? Is the door latch socket connection Make Electrical Connection correct ? Check the door latch with Change the door latch multimeter for short circuit...
  • Page 65 HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT MACHINE IS NOT DRYING Is the Filter and Clean Filter and / or Condenser Condenser Clean? Is compressor Wait temperature of the compressor surface overload decrease room temperature and check again. protector open circuit? Is connection of Make Electrical Connection...
  • Page 66 HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT DRUM IS NOT ROTATING Is Right and Wheels may be stuck or Is Drum Rotating Left Wheel damaged. Replace the With Hand? Rotating wheels. Is belt position Fix The Position of Is Drum as It is correct? the Belt Should Be...
  • Page 67 HP F1 PANEL CUSTOMER SERVICE MANUAL SUPPORT E04 ERROR Is connection of compressor Fix Compressor Connections connector correct? Are the measured resistance values Change The Compressor ​ ​ t hrough the compressor connector correct? Is There a Disconnection Between Is machine Check the compressor gas the e-card and the power correct?
