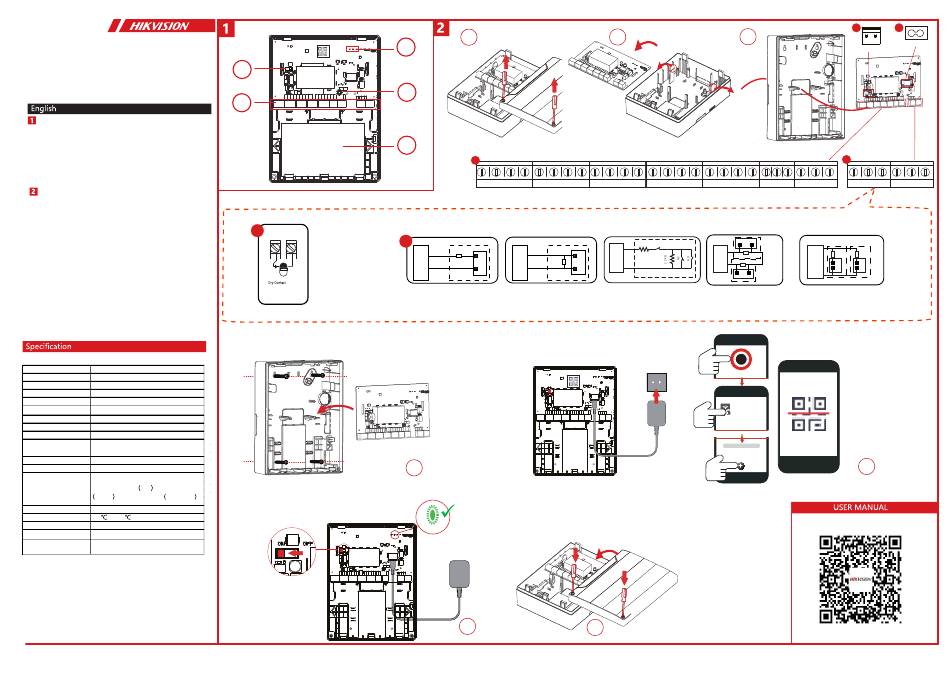

HIKVISION DS-PM1-I16O2-WA Quick Start Manual

DS-PM1-I16O2-WA
Multi IO Transmitter
Quick Start Guide

Appearance

1. LED Indicator
Alarm Indicator Alarm: Solid red for 2s
Fault Indicator
Fault alarm: Solid amber
Enrollment Indicator Enrollment completed:
Flashing green for 7 times
2. Power Switch 3. Wiring Terminal
4. Tamper Switch 5. Battery Holder

Set up

1. 2. Open the shell.
3. Wiring
A.Battery Plug
B.Power Supply : 100 to 240 VAC
C.Power Supply:-EXT and +EXT; AUX- and AUX+
a. Alarm Output(NO1/NC1 and COM1):PGM1 and C1
b. Alarm Input(NO2/NC2 and COM2):PGM2 and C2
b1. NC Detector
b2. NO Detector
b3. Tamper-proof
b4. Dual-Zone Series Connection
b5. Dual-Zone Parallel Connection
D.Zone Input:Z1 to Z16 and C

4. Installation

5. Set up with App.
6. Power on the transmitter.
Enrollment completed: Flashing green for 7 times.
915 MHz
RF Frequency
Modulation
2GFSK
Two-way communication
Method
RF Distance
800 m (open area)
Zone Input 16
EOL 1K, 2.2K, 4.7K, 8.2K
Tamper Switch
2 (Front and Rear)
Relay Output
2
12 V Input 1, Connects to the Battery
2-channel
12 V Output
Total Consumption : 1 A
Power Switch 1
Series Port 1
3: Alarm/Tamper Red , Fault
LED Status
Amber , Signal Strength Green/Red

Power Supply

100 to 240 VAC
Operation temperature –10 to 55
Operation humidity 10% to 90%
199 x 261 x 86.4mm
Dimension (W x H x D)
Weight 975 g (without battery)
3024g (with battery)
UD25613B
1
2
4
3
5
a
C1 PGM1
b
4
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
1
D
Z1 C Z2 Z3 C Z4 Z5 C Z6
Peripheral Security Detector Peripheral Security Detector
Z Z
NC NO
2.2KΩ
2.2KΩ
C C C C
b1 b2
7 Times
6 7
2 3
Z7 C Z8 AUX- AUX+ Z9 C Z10 Z11 C Z12 Z13 C Z14
Security
Control Panel NO C
2.2K Ω TAMPER
Local Zone
Z
Z
2.2kΩ
8.2kΩ
C
C
Detector
Local Expanding
NO C
Zone
b3 b4
xxxx
Device
A B
100~240 VAC
- BAT +
C
Z15 C Z16 -EXT +EXT PGM1 C1 PGM2 C2
Security Control
Local Zone
Panel
Z
2.2kΩ 8.2kΩ
NC NC
C C
C
Local Expanding Zone
b5
5
