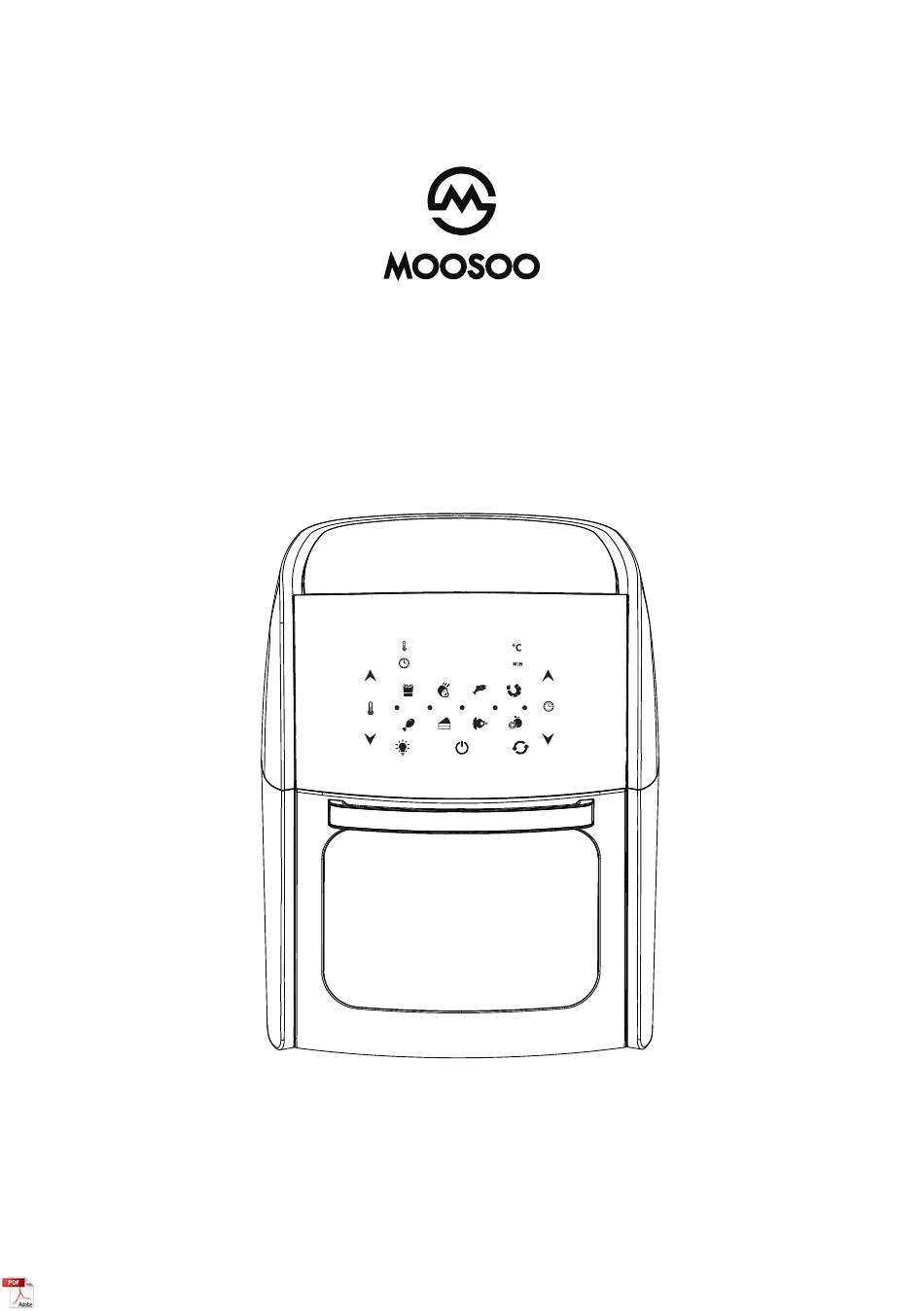

- Page 1 AIR FRYER OVEN INSTRUCTION MANUAL Model: HIC-AF-8081D For any questions and malfunctions of the appliance during use, please contact our customer service email: usa@imoosoo.com...
-
Page 3: Table Of Contents
CONTENTS IMPORTANT SAFEGUARDS SPECIFICATION PARTS & ACCESSORIES USING THE ACCESSORIES COOKING PRESETS GENERAL OPERATING INSTRUCTIONS COOKING CHART CLEANING & STORAGE CLEANING TROUBLESHOOTING FREQUENTLY ASKED QUESTIONS WARRANTY... -
Page 5: Important Safeguards
IMPORTANT SAFEGUARDS 1. Before initial use and after subsequent use, hand wash the Rotating Mesh Basket and other cooking accessories. Then, wipe the outside and inside of the Unit with a warm moist cloth and mild detergent. Finally preheat the air fryer for a few minutes to burn off any residue. -
Page 6: Specification
24. NEVER USE this appliance with an extension cord of any kind. 25. Keep the appliance and its power cord OUT OF THE REACH of children when it is in operation or in the cooling process. SPECIFICATION Model HIC-AF-8081D Voltage AC 120V~60Hz Power 1700W... - Page 7 5. Air Flow Racks (*Optional) Can be used not only for dehydration, but also to cook crispy snacks or reheat items like pizza. 6. Rotating Mesh Basket Great for fries, roasted nuts, and other snacks. Use Rotisserie Fetch Tool to place basket into the Unit 7.
-
Page 8: Using The Accessories
11. Rotisserie Stand (*Optional) Use for placing the Rotisserie Shaft when removing hot food from the Unit. 12. Gloves Used for holding the racks or the rotating mesh basket to protect your hands. 13. Pad Used for putting racks and rotating mesh basket on to protect your desk. 14.Food Clip Used for fetching food. - Page 9 Rotisserie Shaft & Skewers Racks 1. Place the two Skewer Racks at each end of the Rotisserie Shaft. Make sure the Set Screws are on the outer side of the Rotisserie Shaft. 2. Slightly tighten Set Screws. Do not over tighten as you may need to adjust the tightness after you insert the Skewers.
- Page 10 Placing Rotisserie Spit or Rotating Mesh Basket into Unit 1. Insert the left side of the assembled Spit or Basket first into the Rotisserie Shaft socket. Be sure the Rotisserie Shaft is in place to engage rotation (FIG. E). 2. Place the right side onto the hanger (FIG. F). FIG.E-LEFT SIDE FIG.F-RIGHT SIDE IMPORTANT...
-
Page 11: Cooking Presets
1. Power/Start-stop Button - Once the Unit is plugged in, the power button will light up. selecting the power button once (press 2 seconds) will cause the full panel to be illuminated, selecting the power button a second time will activate the cooking process at the default temperature of 365°F (185°C) and time of 15 mins, selecting the power button at any time during the cooking process will pause the unit, press 2 seconds the power button will shut down the unit, when you see digital screen shows "OFF", the motor will stop working after 15 seconds and hear the "beep"... - Page 12 Preset Button Temperature Time 10. Shrimp 320°F(160°C) 12 mins 11 .Chicken 370°F(185°C) 40 mins 12. Baking 350°F(175°C) 30 mins 13. Rotisserie 400°F (200°C) 30 mins* 14. Dehydrator 90°F(30°C) 4hrs(2-24hrs) Using the Air Fryer Oven Without Presets Once you are familiar with the air fryer oven, you may want to experiment with your own cooking times and temperatures.
-
Page 13: General Operating Instructions
GENERAL OPERATING INSTRUCTIONS Before using the air fryer oven for the first time 1. Read all material, warning stickers and labels. 2. Remove all packing materials, labels, and stickers. 3. Wash all parts and accessories used in the cooking process with warm soapy water. Note: only the accessories are dishwasher safe. -
Page 14: Cooking Chart
Tips • Foods that are smaller in size usually require a slightly shorter cooking time than larger ones. • Large quantities of food only require a slightly longer cooking time than smaller quantities. •Flipping or tuning smaller sized foods halfway through the cooking process ensures that all the pieces are evenly fried. •... -
Page 15: Cleaning & Storage Cleaning
Food Item Min- Max Time Temperature Comments Chicken Breast 1/4-1.1lb(500g) 10-15mins 360°F(182°C) Spring Rolls 1/4-3/4lb(350g) 15-20mins 400°F(200°C) Use oven-ready Frozen Chicken Nuggets 1/4-1.1lb(500g) 10-15mins 400°F(200°C) Use oven-ready Frozen Fish Sticks 1/4-1.1lb(500g) 6-10mins 400°F(200°C) Use oven-ready Mozz arella Sticks 1/4-1.1lb(500g) 8-10mins 360°F(182°C) Use oven-ready Stuffed Vegetables... -
Page 16: Troubleshooting
Storage 1. Unplug the appliance and let it cool thoroughly. 2. Make sure all components are clean and dry. 3. Place the appliance in the clean, dry place. TROUBLESHOOTING Problem Possible Cause Solution The unit does not work 1. The appliance is not plugged in. 1. -
Page 17: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS 1. Can I prepare foods other than fried dishes with my air fryer oven? You can prepare a variety of dishes, including steaks, chops, burgers, and baked goods. See the air fryer oven Recipe Guide. 2. Is the air fryer oven good for making or reheating soups and sauces? Never cook or reheat liquids in the air fryer oven. -
Page 18: Warranty
WARRANTY CUSTOMER CARE The 1-year Limited Warranty is valid for products purchased from our MOOSOO only, starting from the date of the original retail purchased. We will provide customer service for any defects in quality or materials under normal, non-commercial use.
