Summary of Contents for Endress+Hauser ISEmax 71072583

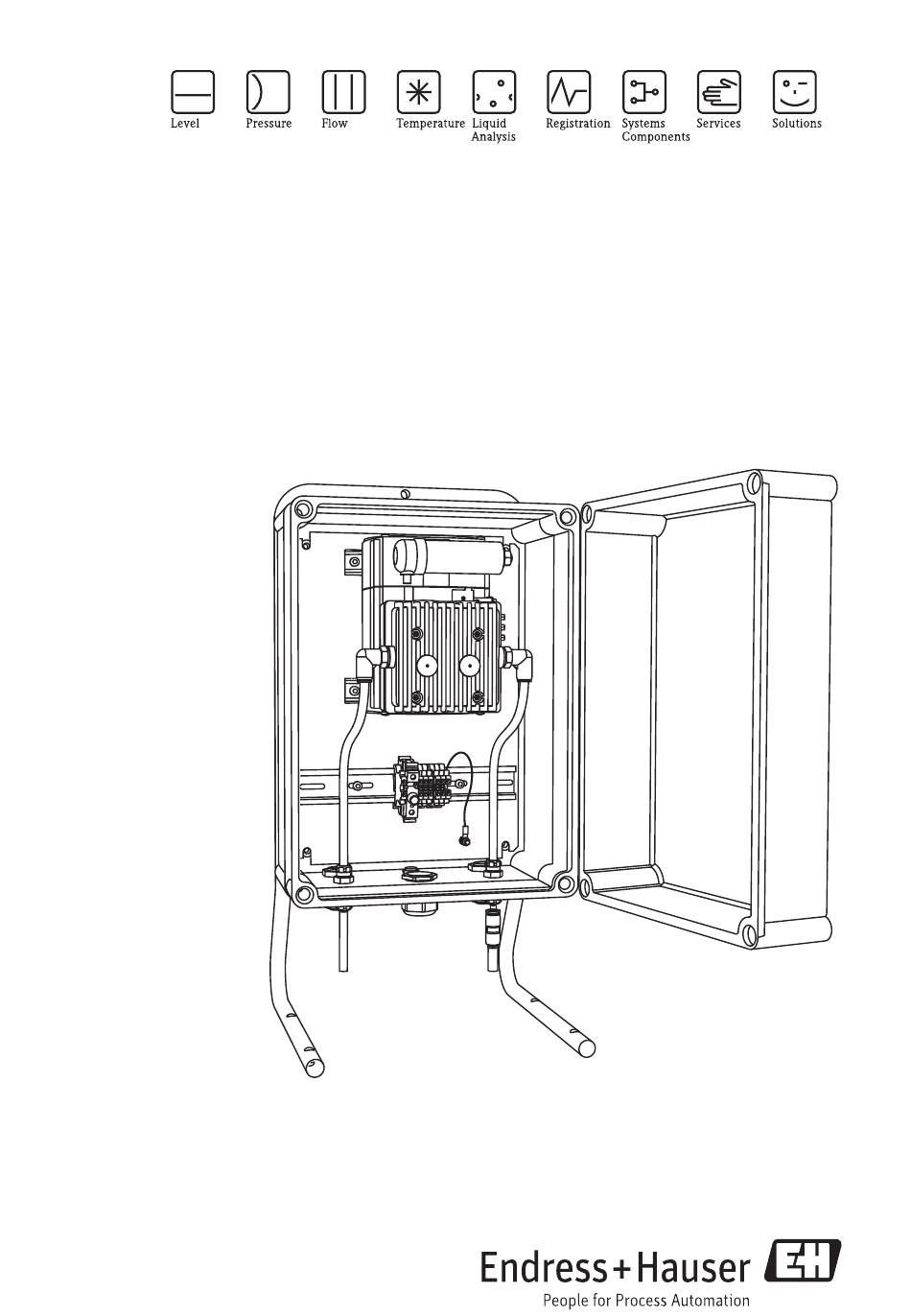

- Page 1 Operating Instructions ISEmax compressed air cleaning unit (230V AC) (Order No.: 71072583) BA438C/07/EN/13.11 71144929...
- Page 2 Overview a0016120 Abb. 1: Cleaning unit Pump Housing Suction side with air filter Terminal strip with fuse Compressed air supply (to the sensor) Tubular frame (part of scope of delivery)
-
Page 3: Table Of Contents
Environment ..... . 15 Index ....16 Endress+Hauser... -
Page 4: Safety Instructions
As the user, you are responsible for complying with the following safety conditions: • Installation instructions • Local prevailing standards and regulations. Return If the device has to be repaired, please return it cleaned to the sales center responsible. Please use the original packaging, if possible. Endress+Hauser... -
Page 5: Notes On Safety Icons And Symbols
• Action/note Cross reference symbols È ä This symbol indicates a cross reference to a defined page (e.g. p. 1). È å 2 This symbol indicates a cross reference to a defined figure (e.g. fig. 2). Endress+Hauser... -
Page 6: Identification
Certificates and approvals Declaration of conformity The product meets the requirements of the harmonized European standards. It thus complies with the legal requirements of the EC directives. The manufacturer confirms successful testing of the product by affixing the 4 symbol. Endress+Hauser... -
Page 7: Installation
• The packaging material used to store or to transport the product must provide shock protection and humidity protection. The original packaging offers the best protection. Also, keep to the approved ambient conditions (see "Technical data"). • If you have any questions, please contact your supplier or your local sales center. Endress+Hauser... -
Page 8: Installation Conditions
Installation Installation conditions a0011377 Fig. 2: Dimensions Endress+Hauser... -
Page 9: Installation Instructions
Post-installation check • After mounting, check all the connections to ensure they are secure and leak-tight. • Check all cables and hoses for damage. • Check whether the cables are routed such that they are free from electromagnetic interference influences. Endress+Hauser... -
Page 10: Wiring
• Use a cable with a diameter of 13 ... 18 mm (0.51 ... 0.71") for Pg 21 cable gland (designated for mains). Connect the cleaning unit to the CM44x transmitter by applying the voltage L1 to terminals 41 and 42. a0016124 Fig. 4: Connection Endress+Hauser... -
Page 11: Post-Connection Check
• Use the unit to transport air only. The cleaning unit should never be used to transport liquids or aggressive and/or toxic media. • Protect the device against splash water and excessive dust. You can find further information to the programming of the cleaning unit at CM44x in BA450C (Operation & settings). Endress+Hauser... -
Page 12: Maintenance
You know the seal lip has to be replaced if the delivery rate drops noticeably. Replacing the seal lip Ribbed cover Seal Valve guard Valve springs Thrust washer O-ring Connecting rod Allen screws Intermediate plate Fillister-head screw Connecting rod disk Seal lip Spacer a0011378 Fig. 5: Exploded drawing of the pump head Endress+Hauser... -
Page 13: Spare Parts
Spare parts Kit compressor wear parts • 1 seal lip • 1 seal for ribbed cover • 1 O-ring Ø70 x 2.0 • 1 valve guard • 2 valve springs • 2 fillister-head screws DIN84, M3x4 • Order No. 71092783 Endress+Hauser... -
Page 14: Technical Data
Max. 3 minutes cleaning, break of at least six times the cleaning time Environment 8.3.1 Ambient temperature range -10 to +55 °C (+14 to +131 °F) 8.3.2 Ingress protection IP65 8.3.3 Overheat control Automatic switch-off at T > 130 °C (266 °F) in the motor (winding sensor) Endress+Hauser... -
Page 15: Index
Ordering ....... 6 Overheat control ......15 Endress+Hauser... - Page 16 BA438C/07/EN/13.11 FM+SGML 6.0...
