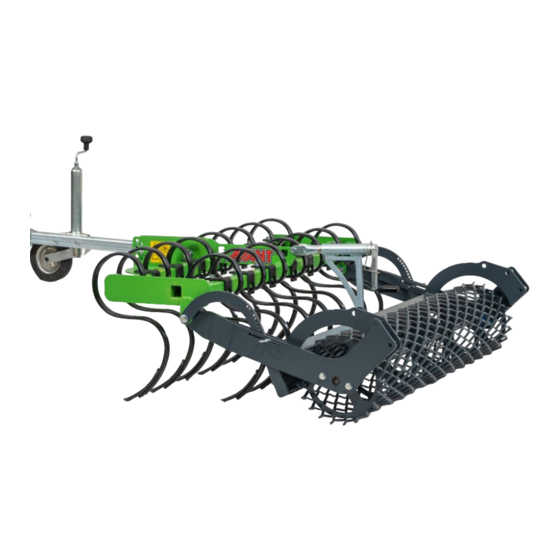

Summary of Contents for AVANT A442314

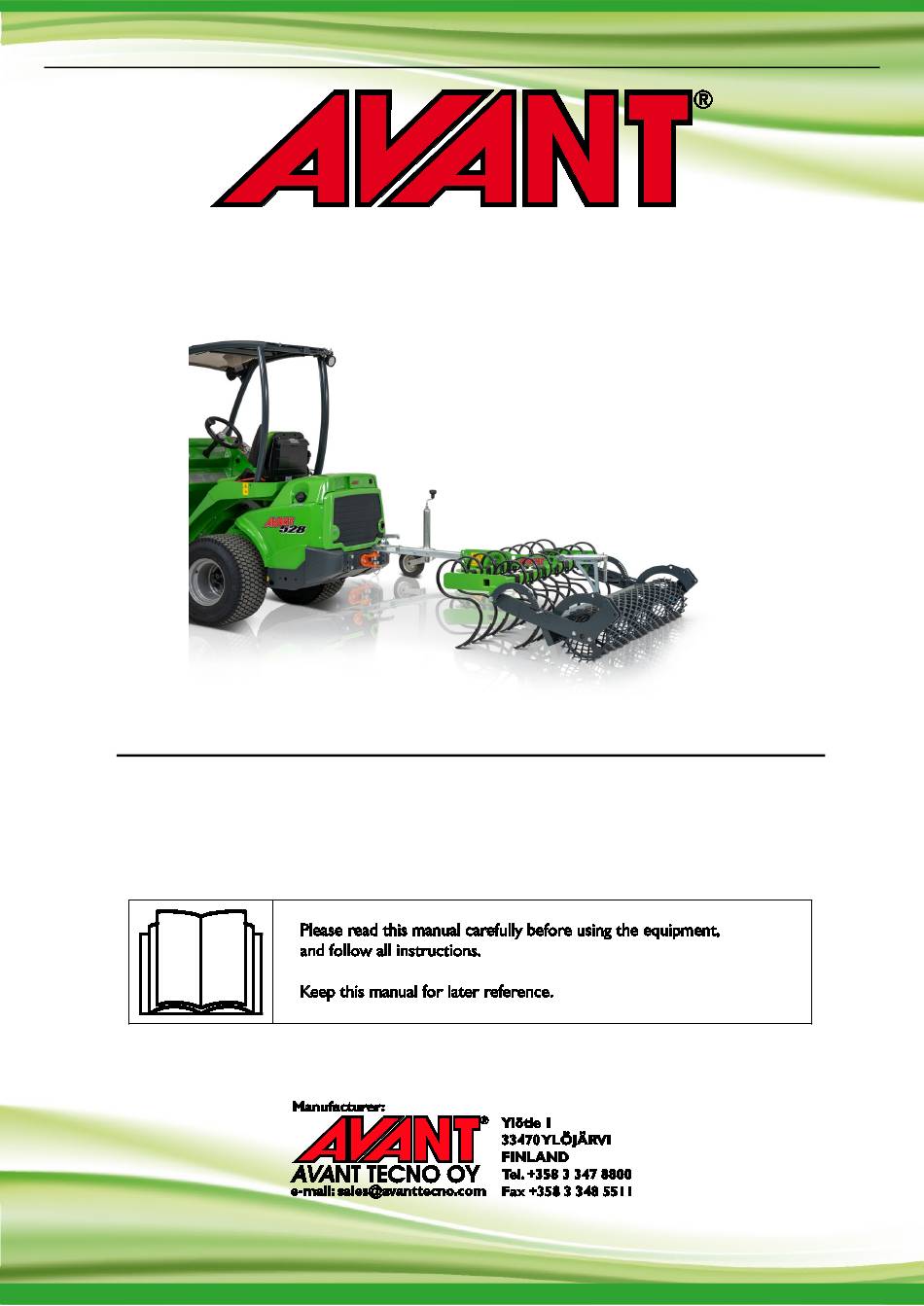

- Page 1 English Spring tine cultivator 2021 1 Operator's Manual for Attachment Spring tine cultivator Product number A442314 www.avanttecno.com A449586 2021 1 EN 2020-...
- Page 2 Spring tine cultivator 2021 1...
-
Page 3: Table Of Contents
Spring tine cultivator 2021 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ..........................5 2. DESIGNED PURPOSE OF USE ......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............7 Personal protective equipment ........................... 8 Safe shutdown procedure ............................ 8 4. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (22) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use
Table 1 - Spring tine cultivator - Compatibility with Avant loaders Model 525LPG 313S 320S 860i 225LPG 755i 760i A442314 • • • • • • • The Spring tine cultivator can be used with all articulated frame Avant loaders that are equipped with 50 mm ball trailer coupling. -
Page 7: Safety Instructions For Using The Attachment
7 (22) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. -
Page 8: Personal Protective Equipment
8 (22) 3.1 Personal protective equipment Remember to wear proper personal protective equipment: The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ... -
Page 9: Technical Specifications
Table 2 – Spring tine cultivator - Specifications Product number A442314 Working width: 1 530 mm Other dimensions: See overview Weight: 198 kg Compatible AVANT loaders: See Table 1, Designed purpose of use Options: Transport wheel kit, manual: A36593 Transport wheel kit, hydraulic: A37547 Side wheel: A418962... - Page 10 10 (22) Table 3 - Decal locations and warning messages Decal Warning message 1 A46771 Misuse hazard - Read instructions before use. 2 A46803 Crushing hazard, moving components. Keep clear of moving components. 3 A443471 Attachment identification plate Table 4 - Spring tine cultivator - Main components Trailer coupling, 50 mm ball hitch Nose wheel Towbar height adjustment...
-
Page 11: Instructions For Use
11 (22) 5. Instructions for use Practise the use of the attachment and the controls of the loader in a safe area. If you are unfamiliar with the particular loader model, it is recommended to practice its use without any attachments. 5.1 Checks before use Use only when the attachment is properly locked and secured onto the trailer coupling of the loader. -
Page 12: Use
12 (22) 5.3 Use Make sure it is possible to use this type of attachment at the operating area. Some areas may get damaged when mixing the surface materials with this attachment. Before starting to work: It is important to check the adjustments of the cultivator before using it for the first time. Actual correct settings depend heavily on the material and factors such as compactness or moisture of the material. - Page 13 13 (22) Using the Spring tine cultivator: 1. Set attachment working position by lifting the transport wheels equipped), and lock them to operating position, indicated with arrows in the adjacent figure. 2. Level the surface by towing attachment ground with the loader. Drive to forward direction with the loader.
-
Page 14: Transport Position
14 (22) 5.4 Transport position Lock the support wheels (if equipped) in transport position as indicated with arrows in the figure below. If the Spring tine cultivator is not equipped with support wheels, it is not recommended to tow it on hard surfaces, or over long distances. -
Page 15: Hydraulic Support Wheels (Optional Extra)
15 (22) 5.4.2 Hydraulic support wheels (optional extra) The attachment can also be equipped with hydraulic support wheel kit A37547, in which case the double acting rear hydraulics outlet is necessary. The hydraulic fittings of the hydraulic support wheels system are connected to the rear hydraulic outlet of the loader (optional equipment for loaders). -
Page 16: Lifting Accessory (Optional Extra)
16 (22) 5.5 Lifting accessory (Optional extra) The Spring tine cultivator can equipped with lifting accessory A449060 option. With the lifting kit it is possible to mount the cultivator to the quick coupling plate of the loader. The lifting kit also makes possible additional... -
Page 17: Side Wheel And Scraper Blade (Optional Extra)
17 (22) 5.6 Side wheel and scraper blade (optional extra) The side wheel kit A418962 and side scraper blade A36471 can be fitted to make it easier to operate the cultivator near walls. 5.6.1 Adjustment Adjust the side wheel and side scraper View from above View from right side blade as shown in the adjacent figure:... -
Page 18: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and... -
Page 19: Cleaning The Attachment
19 (22) 6.2 Cleaning the attachment Clean the attachment regularly to prevent accumulation of dirt which is more difficult to remove. A pressure washer and mild detergent can be used for cleaning. Do not use strong solvents, and do not spray directly at the hydraulic components, or at the labels on the attachment. -
Page 20: Warranty Terms
20 (22) 7. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 21 2006/42/EC as amended). The following harmonized standards have been applied: SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant Hydraulitoimisilla tukipyörillä varustettu joustopiikkiäes; Avant-kuormaajan työlaite Fjädrande kultivator med hydrauliskt manövrerade stödhjul; arbetsredskap för Avant lastare A442314 & A37547 Spring tine cultivator that is equipped with hydraulic support wheels;...
